Chapter 2 : STARTING (continued)

2-2. STARTING THE V-SCALE C

• Connections:
Turn OFF all of your equipment before connecting.
Connect your video source to the VIDEO input of the V-SCALE C.
Connect your computer source to the COMPUTER input of the V-SCALE C.
Connect your Hi-Resolution display device (projector, plasma screen...) to the DISPLAY OUTPUT (HD15
connector of the V-SCALE C).
Connect the external power supply to an AC power outlet and to the DC input connector of the V-SCALE C.

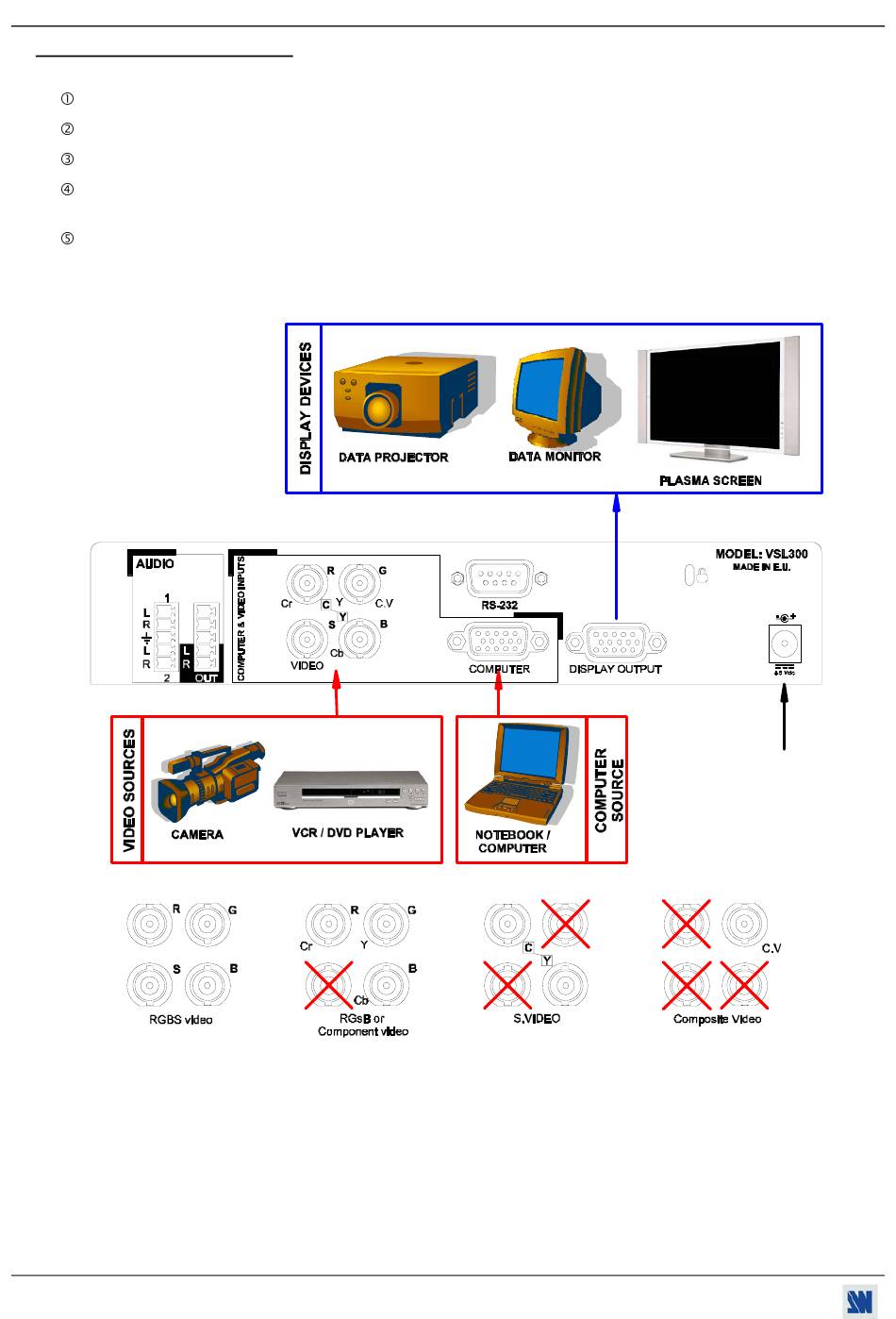

• V-SCALE C connection diagram:
• Video input connection:
PAGE 16
4
5
VSL range
