CONNECTIONS:
Turn OFF all of your equipment before connecting.
Connect your video source to the VIDEO input of the V-SCALE C.
Connect your computer source to the COMPUTER input of the V-SCALE C.
Connect your Hi-Resolution display device (projector, plasma screen...) to the DISPLAY OUTPUT (HD15 connector
of the V-SCALE C).
Connect the external power supply to an AC power outlet and to the DC input connector of the V-SCALE C.

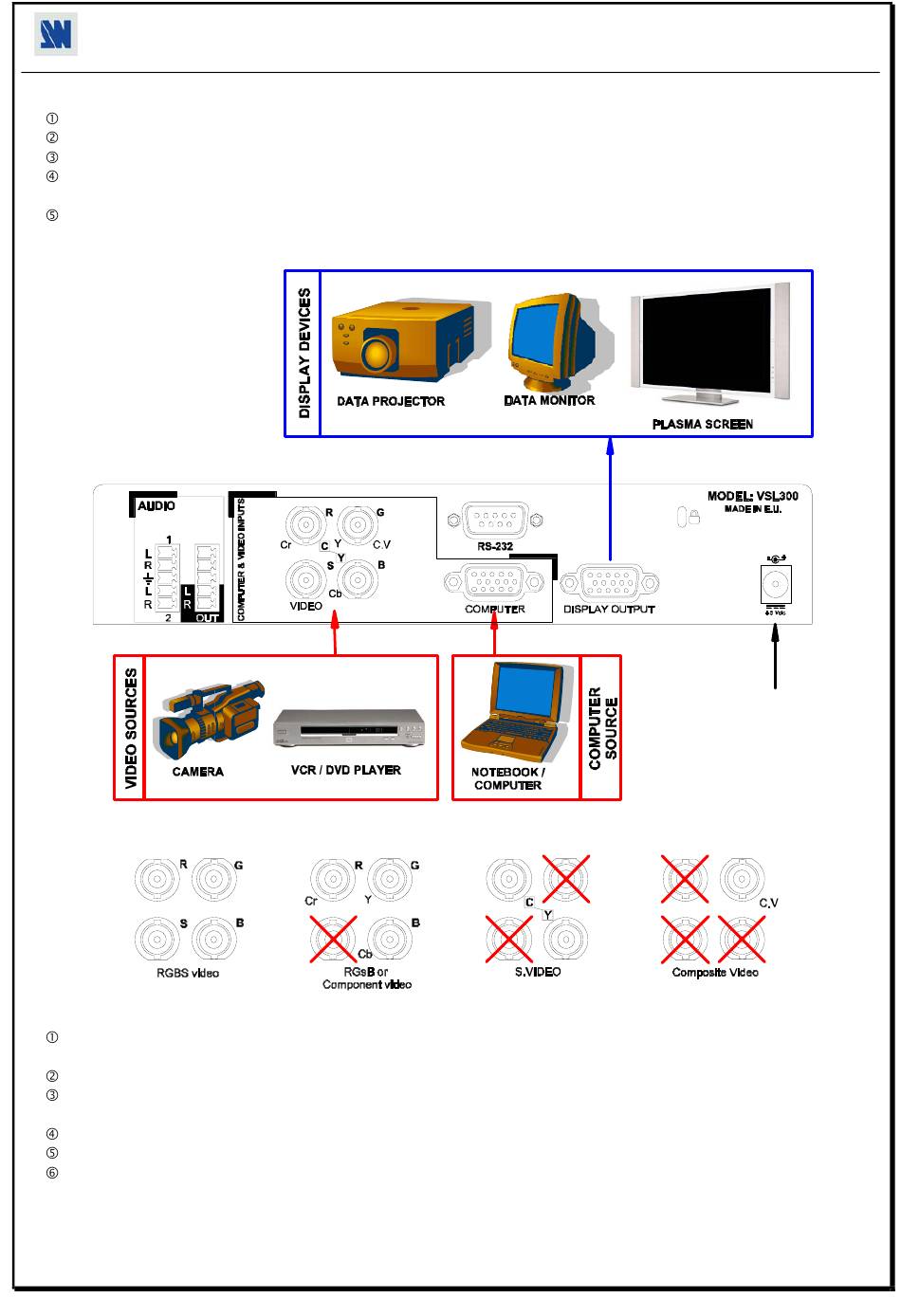

• V-SCALE C connection diagram:
• VIDEO input connection:
SETTINGS:
We recommend resetting the V-SCALE C to all of its default values, with the front panel display menu (CONTROL >
default value > yes) before proceeding.
Select the input type connected to the VIDEO INPUT with the front panel display menu (INPUT > input type).
Select the output format which corresponds to your display device with the front panel display menu (OUTPUT >
output format).
Select one of the output rate available with the front panel display (OUTPUT > output rate).
Select the output sync type with the front panel display (OUTPUT > output sync).
For each VIDEO source connected to the V-SCALE C, make the following adjustments:
- Select the source you want to adjust (with the front panel "INPUT SELECTION" buttons).
- Select the aspect ratio of your input source with the front panel display menu (IMAGE > aspect ratio in).
- Adjust the image in your display device with the position & size functions (IMAGE > pos settings).
- If needed, make the others adjustments, available in the IMAGE menu (color, brightness...).
