Chapter 6 : REMOTE CONTROL SOFTWARE (continued)
6-3. COMMUNICATION SETUP (continued)
• CASE OF LAN PORT:
- With the front panel display menu, verify the configuration of the LAN communication port (CONTROL > LAN
setup), then activate the LAN communication port (CONTROL > RS232/LAN port > LAN).
- With the Controls menu of the software, select RS232/LAN setup and LAN Setup. Then configure the Local
port, the Remote IP address and the Remote port and click on Apply to setup the new values. The software will
also display Device connected.
NOTE: To verify the LAN status of your device: Select LAN status in the Controls menu.

6-4. USING THE SOFTWARE

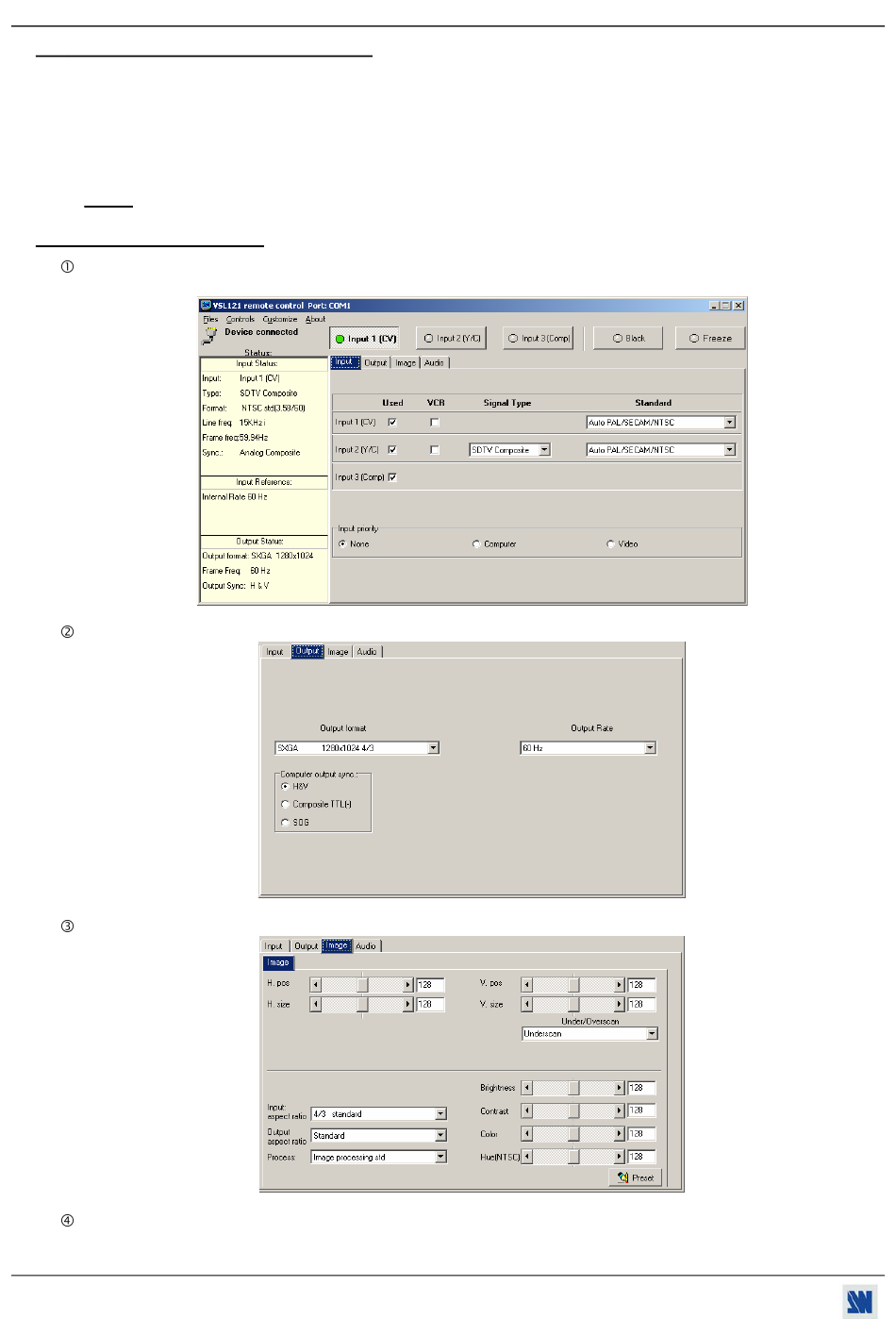

Click on the Input tab and select the Signal Type. Then select the Standard and disable the unused inputs (Used
section).
Click on the Output tab, then select the needed adjustment (output format, output rate...).
Click on the Image tab and adjust your input.
Click on the Audio tab and select Automatic (follow switching mode) or an Audio source (breakaway mode).
