1. Product Unboxing
Step 1
2. Kit Contents
Figure 2 Kit Contents
Note: * indicates the item is not provided in every kit
along with 10BASE-T1L Media Converter Device.
Step 2
Figure 1 Unboxing Steps
Quick Start Guide
10BASE-T1L to 10BASE-T
Media Converter Platform
Step 3
1.

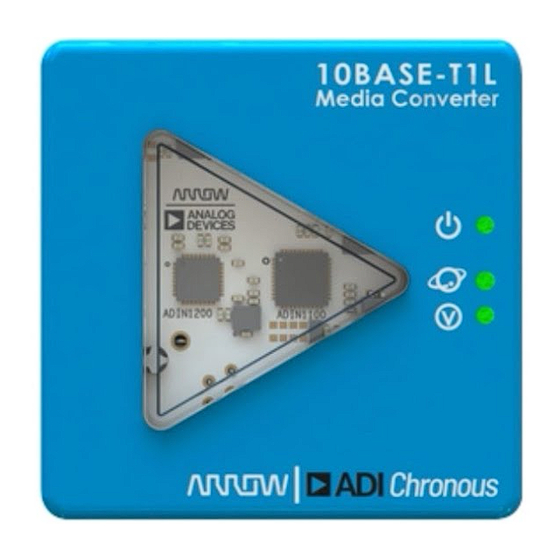

10BASE-T1L to 10BASE-T Media Converter Platform
2.
USB type-A to type-C Cable for power supply
3.
SPE Harting Cable Assembly (33280101001005)
with IEC63171-6 connectors
4.
CAT5E Ethernet Cable Assembly with RJ45
connectors
5.
Quick Start Guide
10BASE-T1L-MC:
Step 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices 10BASE-T1L-MC
Summary of Contents for Analog Devices 10BASE-T1L-MC
- Page 1 Quick Start Guide 10BASE-T1L-MC: 10BASE-T1L to 10BASE-T Media Converter Platform 1. Product Unboxing Step 1 Step 2 Step 3 Step 4 Figure 1 Unboxing Steps 2. Kit Contents 10BASE-T1L to 10BASE-T Media Converter Platform USB type-A to type-C Cable for power supply...
- Page 2 10BASE-T1L MC 10BASE-T1L MC 3.1 Features The 10BASE-T1L-MC is used for media conversion between two analog devices PHYs, 10BASE-T1L PHY (ADIN1100CCPZ) and Standard 10BASE-T PHY (ADIN1200CCP32Z). Operates on +5V ± 10%, 500mA USB supply over type-C connector Screwless terminal block to connect all types of 10BASE-T1L SPE cable SPE connector supporting IEC63171-6, one of the SPE connector standards.
