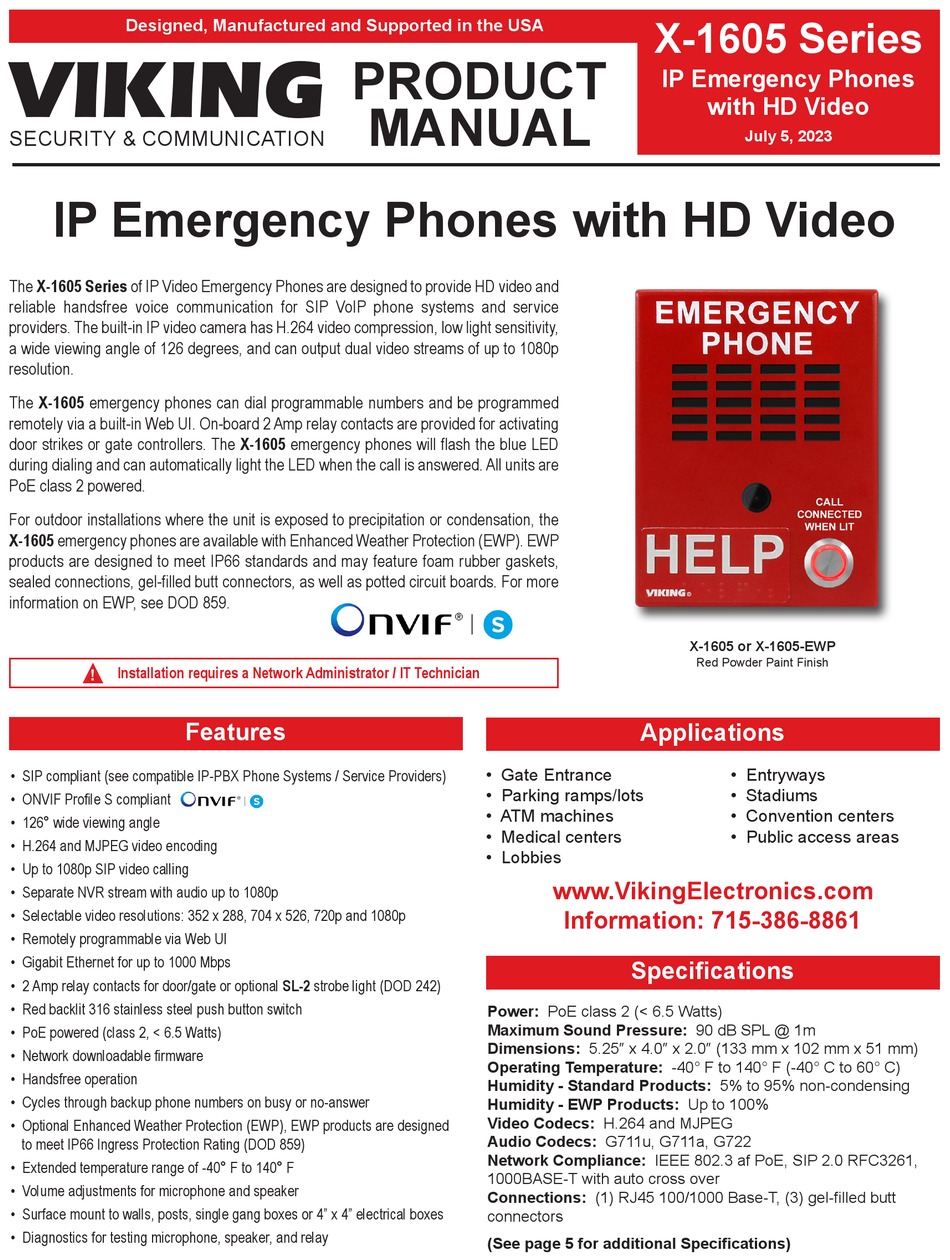

IP Emergency Phones with HD Video
The X-1605 Series of IP Video Emergency Phones are designed to provide HD video and
reliable handsfree voice communication for SIP VoIP phone systems and service
providers. The built-in IP video camera has H.264 video compression, low light sensitivity,
a wide viewing angle of 126 degrees, and can output dual video streams of up to 1080p
resolution.
The X-1605 emergency phones can dial programmable numbers and be programmed
remotely via a built-in Web UI. On-board 2 Amp relay contacts are provided for activating
door strikes or gate controllers. The X-1605 emergency phones will flash the blue LED
during dialing and can automatically light the LED when the call is answered. All units are
PoE class 2 powered.
For outdoor installations where the unit is exposed to precipitation or condensation, the
X-1605 emergency phones are available with Enhanced Weather Protection (EWP). EWP
products are designed to meet IP66 standards and may feature foam rubber gaskets,
sealed connections, gel-filled butt connectors, as well as potted circuit boards. For more
information on EWP, see DOD 859.
Installation requires a Network Administrator / IT Technician
!
Features
• SIP compliant (see compatible IP-PBX Phone Systems / Service Providers)
• ONVIF Profile S compliant
• 126° wide viewing angle
• H.264 and MJPEG video encoding
• Up to 1080p SIP video calling
• Separate NVR stream with audio up to 1080p
• Selectable video resolutions: 352 x 288, 704 x 526, 720p and 1080p
• Remotely programmable via Web UI
• Gigabit Ethernet for up to 1000 Mbps
• 2 Amp relay contacts for door/gate or optional SL-2 strobe light (DOD 242)
• Red backlit 316 stainless steel push button switch
• PoE powered (class 2, < 6.5 Watts)
• Network downloadable firmware
• Handsfree operation
• Cycles through backup phone numbers on busy or no-answer
• Optional Enhanced Weather Protection (EWP), EWP products are designed
to meet IP66 Ingress Protection Rating (DOD 859)
• Extended temperature range of -40° F to 140° F
• Volume adjustments for microphone and speaker
• Surface mount to walls, posts, single gang boxes or 4" x 4" electrical boxes
• Diagnostics for testing microphone, speaker, and relay
PRODUCT
MANUAL
• Gate Entrance
• Parking ramps/lots
• ATM machines
• Medical centers
• Lobbies
Power: PoE class 2 (< 6.5 Watts)
Maximum Sound Pressure: 90 dB SPL @ 1m
Dimensions: 5.25" x 4.0" x 2.0" (133 mm x 102 mm x 51 mm)
Operating Temperature: -40° F to 140° F (-40° C to 60° C)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
Video Codecs: H.264 and MJPEG
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261,
1000BASE-T with auto cross over
Connections: (1) RJ45 100/1000 Base-T, (3) gel-filled butt
connectors
(See page 5 for additional Specifications)
X-1605 Series
IP Emergency Phones
with HD Video

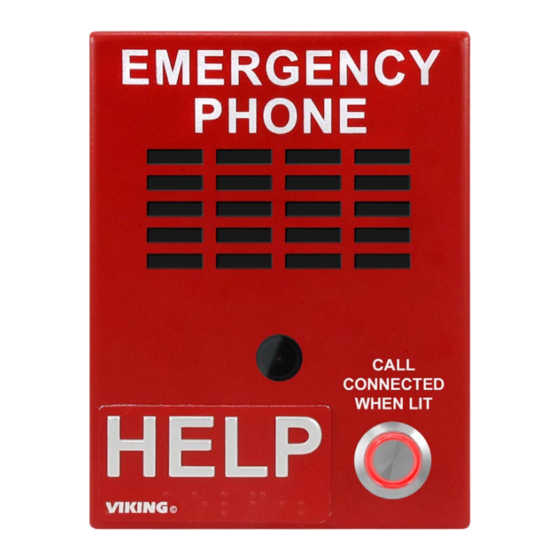

X-1605 or X-1605-EWP
Red Powder Paint Finish
Applications
• Entryways
• Stadiums
• Convention centers
• Public access areas
www.VikingElectronics.com
Information: 715-386-8861
Specifications
July 5, 2023
