ADA* Compliant Emergency Phone
The E-1600-912A ADA Compliant Emergency Phones are designed to fit in Viking
VE-9x12 Series outdoor enclosures. They provide quick and reliable handsfree
communication for any standard analog telephone line, analog phone system
station port or Cell to Pots Converter. All E-1600-912A phones meet ADA
requirements for emergency telephones, and can be programmed from any touch
tone phone. The phones can dial up to 5 programmable emergency numbers, as
well as 2 central station numbers.
The E-1600-912A phones can be programmed to automatically deliver a digital
announcement to identify the location of the emergency call. Alternatively, a DTMF
touch tone code may also be delivered. A "Call Connected" LED can be initiated
manually or automatically. All programming parameters, including phone numbers
and location numbers, are stored in non-volatile memory. All units are phone line
powered, requiring no batteries or external power and are compatible with
common Central Station Monitoring equipment.
E-1600-912A-EWP adds Enhanced Weather Protection (EWP) for outdoor
installations where the unit is exposed to precipitation or condensation. EWP
products are designed to meet IP66 standards and may feature foam rubber
gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit
boards with internally sealed, field-adjustable trim pots and DIP switches for easy
onsite programming. For more information go to www.vikingelectronics.com/ewp.
Features
• Optional cellular connectivity using compatible 3rd party Cell to
POTS converters, See Page 2
• Automatic Noise Canceling (ANC) feature for clear audio in noisy
environments
• Meets ADA requirements for Emergency Phones:
- Automatically lights the "Call Connected" Buttons LED
- Transmits a unique location I.D. code or voice announcement
- Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 16 seconds of voice memory
• Advanced call progress detection
• Handsfree operation
• Phone line powered
• Non-volatile memory (no batteries required)
• Marine grade 316 stainless steel prevents corrosion
• Dials up to five emergency numbers
• Cycles through backup phone numbers on busy or no-answer
• Optional Enhanced Weather Protection (EWP), EWP products are
designed to meet IP66 Ingress Protection Rating, go to:
www.vikingelectronics.com/ewp
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch
tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-30°F to 170°F)
• Central Station Monitoring capability (dials 2 numbers)
• Also available with VoIP interface, see DOD 255 for more information.
• Optional VE-SPG Hinge Spring, https://vikingelectronics.com/products/ve-spg/
• Optional PB-100 Polling System, https://vikingelectronics.com/products/pb-100/
• Optional BLK-4-EWP strobe light kit, https://vikingelectronics.com/?s=BLK-4-EWP
• Optional LC-6 Six Port Concentrator, https://vikingelectronics.com/?s=LC-6
• Optional 261529 Red "Emergency Label", https://store.vikingelectronics.com/
PRODUCT
MANUAL
for Viking Outdoor Enclosures
E-1600-912A / EWP
E-1600-912A
261529 - Emergency label
(sold separately)
VE-SPG - Door Return Hinge Spring
(sold separately)
Applications
• Emergency pool phones
• Gas Stations
• EV Charging Stations
• Water Parks
• Amusement Parks
• Parking ramps/lots
* Americans with Disabilities Act of 1992 contains federal regulations
regarding elevator telephones (Public Law 101-336).
www.VikingElectronics.com
Information: 715-386-8861
Specifications
Power: Telephone line powered. Minimum 24V DC talk battery voltage, with
a minimum loop current of 20mA loop. Loop current may be boosted on low
current lines with a Viking model TBB-1B Talk Battery Booster (DOD 632).
Dimensions: See Installation and Specifications
Operating Temperature: -30° F to 170° F (-34° C to 77° C)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
CAUTION - When installing on an analog extension of a phone system:
Some phone systems do not conform to analog telecom standards and might
not be compatible with the E-1600-912A emergency phones. For a detailed
description of the telephone line specifications required for any of the 1600A
phones, see DOD 869.
Emergency Phone
for Viking Outdoor
Enclosures
January 21, 2025

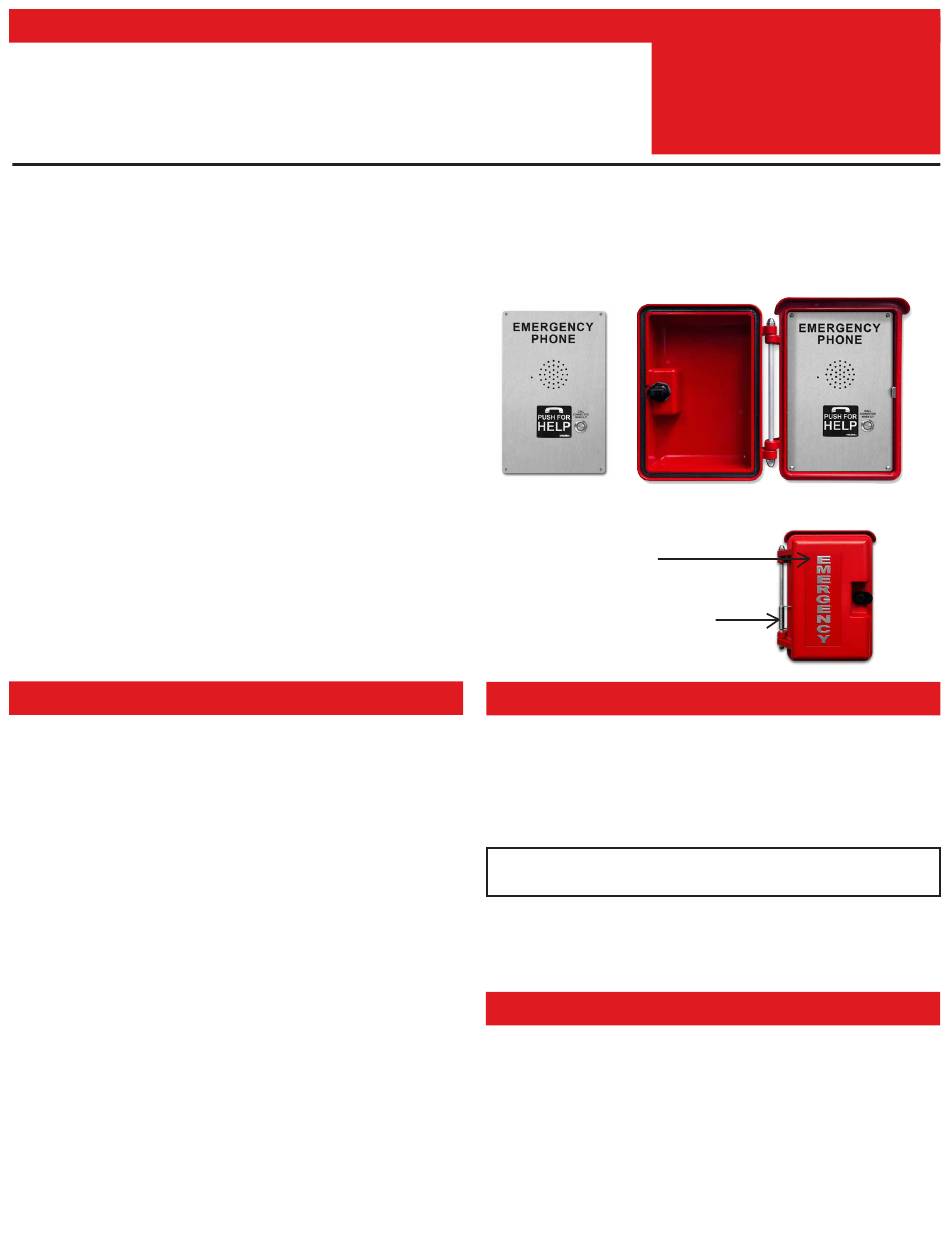

E-1600-912A shown mounted in a
VE-9x12R-0P (sold separately)
• Entryways
• Campus emergency stations
• Roadside emergency stations
• Stadiums
• Convention centers
