Designed, Manufactured and Supported in the USA
VIKING
SECURITY & COMMUNICATION
ADA & CE Compliant VoIP Emergency Phones
with Built-In Dialer and Digital Voice Announcer

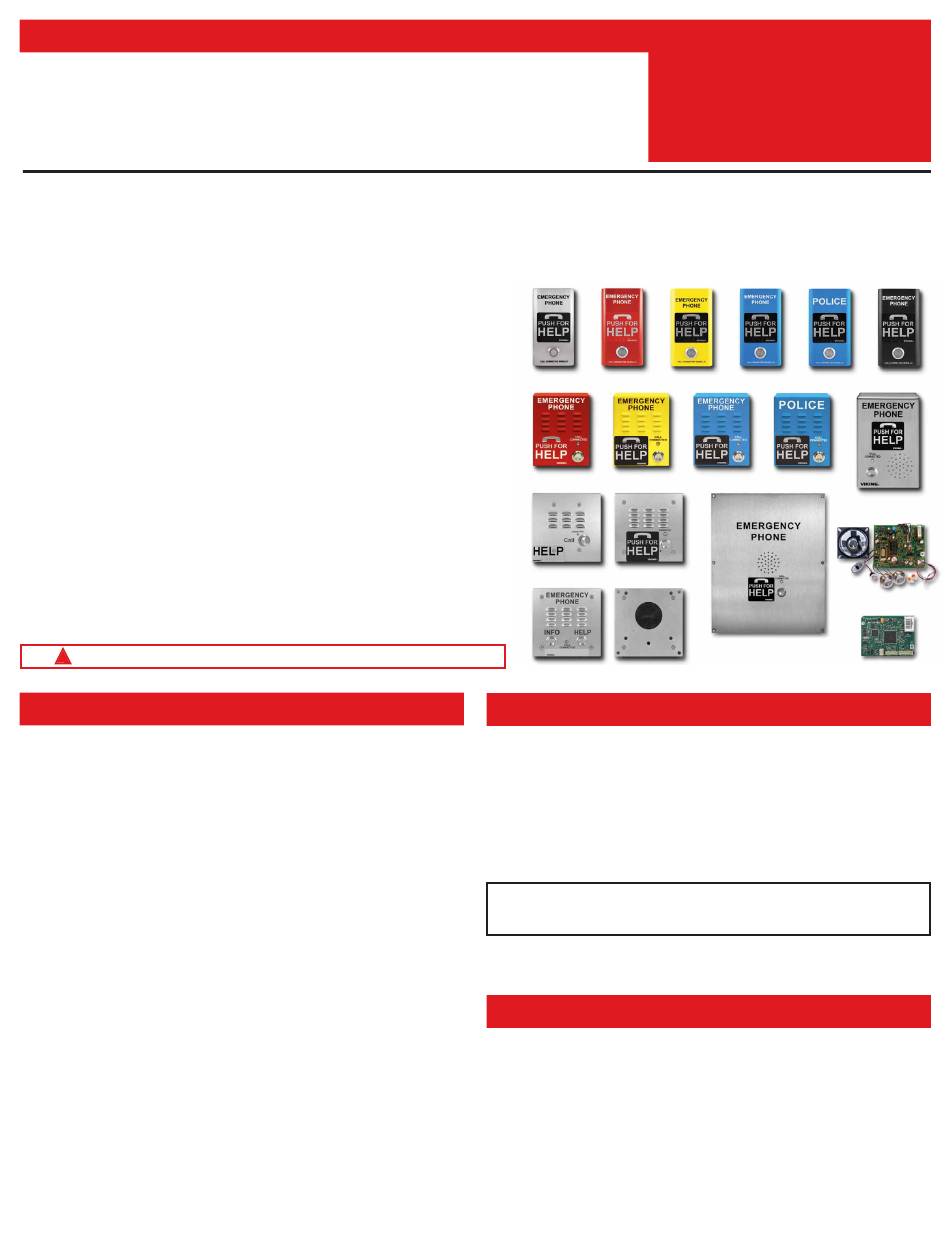

The 1600-IP Series of ADA Compliant VoIP Emergency Phones are designed to
provide quick and reliable handsfree communication for SIP VoIP phone systems
with PoE. All 1600-IP Series phones meet ADA requirements for elevator or
emergency telephones, and can be programmed from any touch tone phone or
PC on the same LAN or remotely using a static IP address. The phones can dial
up to 5 programmable emergency numbers. In addition, the E-1600-20-IP,
E-1600-22-IP, E-1600-52-IP and E-1600-TP2IPEWP feature a second "INFO"
button that will dial up to 5 non-emergency numbers. Two amp relay contacts are
provided for strobe light, camera, door/gate control, etc.
The 1600-IP Series phones can be programmed to automatically deliver a digital
announcement to identify the location of the emergency call. Alternatively, a DTMF
touch tone code may also be delivered. A "Call Connected" LED can be initiated
manually or automatically. All programming parameters, including phone numbers
and location numbers, are stored in non-volatile memory, requiring no batteries.
All units are PoE powered.
For outdoor installations where the unit is exposed to precipitation or condensation,
select 1600-IP Series phones are available with Enhanced Weather Protection
(EWP). EWP products are designed to meet IP66 standards and may feature foam
rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit
boards with internally sealed, field-adjustable trim pots and DIP switches for easy
onsite programming. For more information go to www.vikingelectronics.com/ewp
Installation requires a Network Administrator / IT Technician
!
Features
• Automatic polling and programming software included
• 2 Amp relay contacts for door/gate or SL-2 strobe light control
• SIP compliant (see page 2 for more information)
• ASME A17.1 code compliant when used with the Model LV-1K Line Verification Panel
• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy areas
• VoIP eliminates the need for "Push to Talk" mode
• Network downloadable firmware
• Meets ADA requirements for Emergency Phones:
- Automatically lights the Red "Call Connected" LED
- Transmits a unique location I.D. code or voice announcement
- Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 28 seconds of voice memory
• Marine grade 316 stainless steel prevents corrosion on the stainless steel models
• Laser etched graphics on stainless steel models
• Dials up to 5 emergency numbers
• E-1600-20-IP, E-1600-22-IP, E-1600-52-IP, and E-1600-TP2IPEWP dial up to 5
non-emergency "INFO" numbers
• Cycles through backup phone numbers on busy or no-answer
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet
IP66 Ingress Protection Rating, go to: www.vikingelectronics.com/ewp
• Hangs up on busy signal, time-out or touch tone command
• Extended temperature range (-40°F to 140°F)
• 17 different chassis or board only available
• Available in 42" tower phone model E-1600-BLTIPEWP
• Optional LV-1K Line verification Panel
• Optional PB-100 Polling System available
• Optional SL-2 or BLK-4-EWP strobe light kit available
• Optional E-1600A-MK-GNP Pedestal Mounting Kit
• Optional PB-1 Panic Button Kit
• Diagnostics for testing microphone, speaker, and relay
PRODUCT
MANUAL
E-1600-SS-IP
E-1600-IP
E-1600-32-IP
E-1600-20-IP
• Elevators
• Parking ramps/lots
• Emergency pool phones
• ATM machines
• Medical centers
• Silent hold-up alarm dialer
with an optional PB-1 Panic
Button Kit
* Americans with Disabilities Act of 1992 contains federal
regulations regarding elevator telephones (Public Law 101-336).
Power: PoE class 1 (<4 Watts)
Maximum Sound Pressure: 95 dB SPL @ 1m
Dimensions: See Installation and Specifications
Operating Temperature: -40°F to 140°F (-40° C to 60° C)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with
auto cross over
Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
1600-IP Series
ADA Compliant VoIP
Emergency Phones
August 26, 2024
E-1600-RD-IP
E-1600-YL-IP
E-1600-45-IP
E-1600-65-IP
E-1600-30-IP
E-1600-02-IP/E-1600-TP-IPEWP
E-1600-TP2IPEWP/E-1600-GT-IPEWP,
E-1600-55-IP
E-1600-RT-IPEWP, E-1600-RTMIPEWP
Applications
• Area of refuge locations
• Lobbies
• Entryways
• Campus emergency stations
• Stadiums
• Convention centers
• Public access areas
www.VikingElectronics.com
Specifications
E-1600-BL-IP
E-1600-BLP-IP E-1600-BK-IP
E-1600-60-IP
E-1600-03-IP
E-1600-50/52-IP
E-1600-53-IP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Viking E-1600-RT-IPEWP
Summary of Contents for Viking E-1600-RT-IPEWP
- Page 1 E-1600-02-IP/E-1600-TP-IPEWP Installation requires a Network Administrator / IT Technician E-1600-TP2IPEWP/E-1600-GT-IPEWP, E-1600-20-IP E-1600-55-IP E-1600-53-IP E-1600-RT-IPEWP, E-1600-RTMIPEWP Features Applications • Automatic polling and programming software included • Elevators • Area of refuge locations • 2 Amp relay contacts for door/gate or SL-2 strobe light control •...
- Page 2 VoIP SIP System Compatibility For compatibility and vendor specific detailed configuration instructions, see the Viking VoIP SIP System Compatibility List, DOD 944. To open and download this PDF file: Scan the QR code below to open 1. Go to www.vikingelectronics.com...
- Page 3 Model: E-1600-53-IP Description: 14 gauge marine grade Description: 1600-IP board (PCB) only kit. 316 stainless steel with #4 brushed Can be used to convert any analog Viking 1600A-Series finish phone to a VoIP version Model: E-1600-55-IP HxWxD: 5.0 x 5.0 x 2.0...
- Page 4 GAI-TRONICS Red replacement for Talk-A-Phone replacement for Talk-A-Phone Alert Model 397-700 models ETP-400V or VoIP-500 models ETP-400DV or VoIP-500D Model: E-1600-RT-IPEWP Model: E-1600-RTMIPEWP HxWxD: 11.938 x 8.281 x 2.0 HxWxD: 8.5 x 6.5 x 2.0 Mounting: Flush mount Mounting: Flush mount...
-
Page 5: Features Overview
IP address. Yellow Network Status LED: Lights steady to indicate power and data link. Blinks to indicate network activity. Green Unit Status LED Viking model LV-1K shown (not included), see DOD 246 - Black + Red Connect to Optional Optional 2 Amp Relay Strobe Light, LV-1K, etc. -
Page 6: Mounting Plate
Mounting Kit allows you to mount the E-1600A, E-1600-40A, E-1600-45A, 4” x 4” electrical junction boxes or recess mount in elevator E-1600-60A or E-1600-65A to any Viking Gooseneck Pedestal. phone boxes. Attach mounting plate in desired location. Attach wires then fasten cover to mounting plate with set screw. -
Page 7: Mounting Plate Dimensions
Radius (model E-1600-BLP-IP only) Speaker Grade 2 Braille Label PUSH FOR 5.75 HELP Microphone Screw Screw VIKING © Push to Call button with red backlit Call Connected LED SIDE VIEW 0.313 Radius CALL CONNECTED WHEN LIT 1.05 FRONT VIEW 2.92 2.52... -
Page 8: Side View
6.25 provided wire nut PHONE 13.0 Minimum Cutout Red Call Connected CALL 12.5 CONNECTED PUSH FOR HELP Grade 2 Earth Braille VIKING © Ground Label Push To Call Button FRONT VIEW (6) 0.188 diameter countersunk holes SIDE VIEW... -
Page 9: Front View
Earth Ground the Green/Yellow PHONE wire using the provided wire nut Earth Grade 2 Braille Label PUSH FOR Ground HELP 7.22 VIKING © Marine grade 316 CALL stainless steel faceplate CONNECTED Call Connected LED and push button switch (sealed per IP67) - Page 10 / sides of faceplate or VE-5x5. Mounting with Optional VE-5x5: Surface mount to walls, single gang boxes, double gang boxes, posts, or to a Viking VE-GNP Gooseneck Note: When European CE compliance is required, mount in optional VE- pedestal.
- Page 11 E-1600-22-IP Dimensions: 5.0” x 5.0” x 2.25” (127mm x 127 x 57mm) Optional Enhanced Weather Protection (EWP) Available: EWP products are designed to meet IP66 standards and may Shipping Weight: 2.12 lbs (1.0 lbs) feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally Front Panel Material: 14 gauge marine grade 316 brushed sealed, field-adjustable trim pots and DIP switches for easy...
- Page 12 E-1600-32-IP Dimensions: 5.0” x 5.0” x 2.25” (127mm x 127 x 57mm) Optional Enhanced Weather Protection (EWP) Available: EWP products are designed to meet IP66 standards and may Shipping Weight: 2.12 lbs (1.0 kg) feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally Front Panel Material: 14 gauge marine grade 316 brushed sealed, field-adjustable trim pots and DIP switches for easy...
- Page 13 Mounting with Optional VE-5x5: Surface mount to walls, single gang Note: When European CE compliance is required, mount in optional boxes, double gang boxes, posts, or to a Viking Gooseneck pedestal. VE-5X5 metal enclosure. 2.1”...
- Page 14 Just like all may feature foam rubber gaskets, sealed connections, gel- Viking ADA Compliant Emergency Phones, these kits filled butt connectors, as well as potted circuit boards with provide quick and reliable handsfree communication in the internally sealed, field-adjustable trim pots and DIP switches event of an emergency.
- Page 15 This is a E-1600-IP board (PCB) only kit. This kit can be used to convert 2008 Shipping Weight: 1.0 lb (0.45 kg) or newer Viking 1600A Series Analog Emergency Phones to a VoIP version. A Connections: (1) RJ45 10/100 Base-T, (3) optional gel-filled butt...
- Page 16 E-1600-55-IP The E-1600-55-IP is a universal emergency phone kit for Optional Enhanced Weather Protection (EWP) Available: EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed installing behind elevator panels, or an installation connections, gel-filled butt connectors, as well as potted circuit boards with requiring a custom panel.
- Page 17 Ground 11.75 Minimum Cutout 10.250 CALL CONNECTED 5.125 PUSH FOR 2 Amp Relay HELP Output Contacts VIKING © Gray (N.C.) Blue (COM.) 2.125 Yellow (N.O.) (to control beacon 0.75 or strobe light) (6) 0.250 diameter counter sunk "Call Connected" LED 82°...

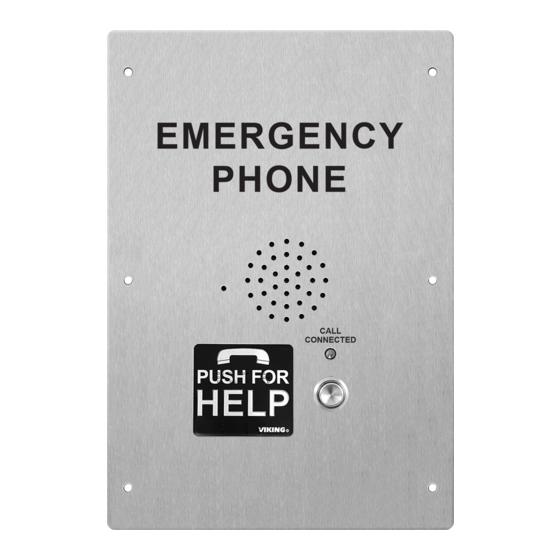

- Page 18 E-1600-RT-IPEWP Enhanced Weather Protection (EWP): EWP products Dimensions: 8.281” x 11.938” x 2.0” (210 mm x 303mm x are designed to meet IP66 standards and may feature 51mm) foam rubber gaskets, sealed connections, gel-filled butt Shipping Weight: 3.1 lbs (1.41 kg)
- Page 19 PUSH FOR Yellow (N.O.) PUSH FOR HELP HELP (to control beacon or strobe light) VIKING VIKING 1.250 "Call Connected" LED Marine grade 316 stainless steel faceplate (6) 0.203 diameter and push button switch (sealed per IP67) Grade 2 Braille Label...
- Page 20 Ground 12.00 Minimum Cutout 9.60 CALL CONNECTED 5.125 PUSH FOR 2 Amp Relay HELP Output Contacts VIKING Gray (N.C.) © Blue (COM.) 2.25 Yellow (N.O.) (to control beacon or strobe light) 1.20 (6) 0.250 diameter counter sunk "Call Connected" LED 82°...
- Page 21 2. Click E-1600-IP in the search results 3. Scroll down the page to Downloads, click IP Programming Software 4. Install the programming software by saving or opening the file and then clicking on setup Viking IP Programming.exe 5. Follow the prompts on your screen to complete software installation 6.
-
Page 22: Connect / Disconnect
A. Connect / Disconnect Open the “Viking IP Programming” software on the PC and the start screen shown below will appear. Any Viking IP phones that are connected to the network will appear on the list. Simply select the 1600-IP Series on the list and click on the “Connect”... - Page 23 C. Configuring the E-1600-IP Network Settings Open the “Viking IP Programming” software on a windows PC that is connected to the same LAN as the 1600-IP Series phone to be Step 1. programmed. The window in the upper left corner of the menu will show you each 1600-IP Series phone that is connected to that LAN. Select the Step 2.
- Page 24 D. Configuring E-1600-IP VLAN Settings Step 1. Click on the “VLAN” tab Step 2. Disable or enable VLAN tagging by setting the value of “VLAN Tagging”. Step 3. Set the VLAN tag ID by selecting an integer (1 to 4094) in “ID for all packets”. Set the Priority Code Point (PCP) value for all not SIP and RTP packets in the “PCP for all packets”...
- Page 25 Programming Features Index DESCRIPTION Section Page Connect/Disconnect VLAN Settings Unit Name SIP Server Peer to Peer Settings Outbound Proxy Authentication ID Register Fails Speed Dial Numbers Security code (factory set to 845464) ID Number Access Code (1 - 6 digits, blank = disabled, factory set to 123456) Audio File Recording Emergency Announcement from a phone Internal / External Relay (factory set to Internal)
-
Page 26: Programming Features
Programming Features 1. Unit Name Up to a 31 character unit name can be assigned to the 1600-IP Series Phone being programmed. 2. SIP Server Enter the IP address or URL of your SIP server or service provider in this field. The SIP server IP address is limited to 74 characters. -
Page 27: Security Code
Note: A majority of the features below can also be Touch Tone (In-Band DTMF) programmed, see DOD 949. 7. Speed Dial Phone Numbers Note: Up to 90 digits can be stored in each of the 5 speed dial phone number positions. The number programmed in the first location under “Speed Dial Numbers”... - Page 28 With the relay set to “Internal” the E-1600-IP Series Phone will activate its on board relay for door strike / gate control. The Relay should be set to “External” for higher security installations when using a Viking remote model RC-4A relay controller to activate the door strike / gate controller.
- Page 29 15. Relay Activation Command The one or two digit code stored in the Relay Activation Command is the touch tone command that the person being called must enter on their phone in order to momentarily activate the relay to control a doorstrike, mag-lock, gate controller, or other device.
- Page 30 23. Microphone Volume / Automatic Noise Cancelling Mode The microphone volume can be set from 1 to 9, 1 = lowest volume setting, 9 = highest volume setting. Alternatively the microphone can be placed in the “Auto” Automatic Noise Cancelling mode. With the mic in the Auto mode, when background noise increases, the mic gain will automatically decrease.
- Page 31 The Inbound Call Mode determines how the 1600-IP Series Phone handles incoming SIP calls. One option is to generate a loud ring sound through the speaker. The 1600-IP Series Phone can also auto answer a SIP call to transmit a page, control the relay or listen to transmit audio from the microphone. The last option is the silent monitor mode, which allows callers to listen to the transmit audio from the microphone.
- Page 32 35. Call LED Mode The “Call” LED on the E-1600-IP Series can be programmed to one of four different modes. Factory Setting: Emergency Phone OFF Mode: Useful for silent monitoring applications. In this mode the LED will not light during normal operation. It will only light (blink) if it cannot register with the programmed SIP server or while manually resetting all network parameters to factory default.
- Page 33 45. Diagnostics The Diagnostics section in the Viking IP Programming can be used to test the functionality of the mic, speaker and the relay. Note: Using the “Test Relay Activation” button is not recommended when Relay Mode is set to LV-1K Control.
-
Page 34: Operation
You may silence the error beeps, per instance, by pressing and holding the HELP/CALL button for 5 seconds or by clicking the “Mute Alarm Until Next Failure” button in the Viking IP Programming Software (see section B on page 19). The error... -
Page 35: Related Products
LAN connection is not functioning. The LV-1K can be added to any new or existing Viking 1600-IP Series elevator emergency phone as a stand alone solution. The LV-1K continuously monitors for loss of PoE or communication with the server and will immediately provide an audible and visual indication when the LAN connection has been accidentally cut or disconnected. - Page 36 For more information, see DOD 235. Emergency Phone Panic Button Kit (for use with Viking Emergency Phones) The PB-1 Panic Button Kit connects to a Viking 1600A or 1600-IP Series Emergency Phone to provide a one-way talk path to the pre-programmed number when used.
-
Page 37: Returning Product For Repair
TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
