Direct Physical Replacement for:
RAMTEL models 733 and 733M
For use with RAMTEL towers, PLC columns, boxes pedestals and
wall mount enclosures.
The E-1600A-RT-EWP or E-1600A-RTM-EWP will call up to 5
programmable emergency numbers, as well as 2 central station
numbers and send a digital announcement to identify the location
of the emergency call. The included BLK-4 control module will
supply a contact or switched 12V DC to activate a strobe light.
Though the strobe requires external power to operate, voice
communication is possible during power failures. All phone
numbers,
location
numbers,
programming parameters are stored in non-volatile memory. No
batteries are required.
The E-1600A-RT-EWP and E-1600A-RTM-EWP are equipped with
Enhanced Weather Protection (EWP) for outdoor installations
where the unit is exposed to precipitation or condensation. EWP
products are designed to meet IP66 standards and may feature
foam rubber gaskets, sealed connections, gel-filled butt connectors,
as well as potted circuit boards with internally sealed, field-
adjustable trim pots and DIP switches for easy onsite programming.
For more info on EWP, go to: www.vikingelectronics.com/ewp
Features
• Automatic Noise Canceling (ANC) feature for clear audio in noisy
environments
• Enhanced Weather Protection (EWP), EWP products are designed to
meet IP66 Ingress Protection Rating, go to: vikingelectronics.com/ewp
• Meets ADA requirements for Emergency Phones:
- Automatically lights the "Call Connected" LED
- Transmits a unique location I.D. code or voice announcement
- Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 16 seconds of voice memory
• Provides contact or switched 12V DC for controlling a stobe light
• Advanced call progress detection
• Handsfree operation
• Phone line powered emergency phone (BLK-4 reqires power)
• Non-volatile memory (no batteries required)
• Marine grade 316 stainless steel prevents corrosion
• Dials up to 5 emergency numbers
• Cycles through backup phone numbers on busy or no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch
tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range of-30°F to 170°F
• Central Station Monitoring capability (dials two numbers)
• Separate Central Station voice speed dial numbers
• Also available with VoIP interface, see models E-1600-RT-IPEWP or
E-1600-RTMIPEWP
PRODUCT
MANUAL
voice
announcement
and

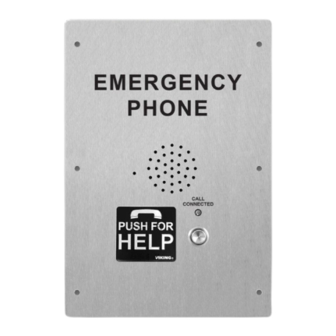

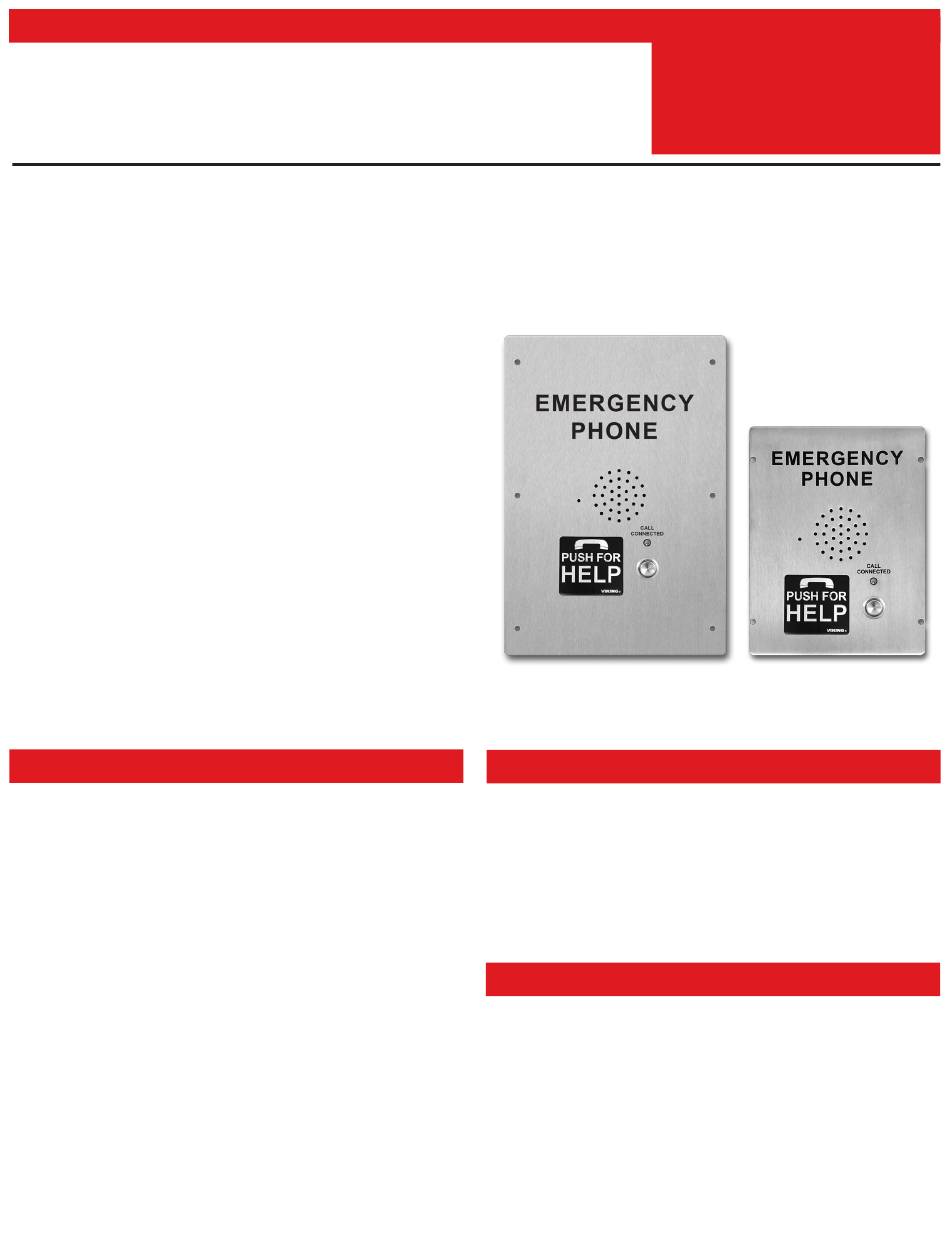

E-1600A-RT-EWP
(Ramtel 733 Replacement)
• Replace weather damaged
RAMTEL panel phones
• Parking ramps/lots
• Emergency pool phones
• ATM machines
• Area of refuge locations
• Lobbies
Phone Power: Telephone line powered. Minimum 24V DC talk battery
voltage, with a minimum loop current of 20mA loop. Loop current may be
boosted on low current lines with a Viking model TBB-1B Talk Battery
Booster.
BLK-4 Control Module: 120V AC/12V DC 500mA, UL listed adapter
provided
Dimensions and Shipping Weight: See Installation and Specifications
Operating Temperature: -30° F to 170° F (-34° C to 77° C)
Humidity - EWP Products: Up to 100%
CAUTION - When installing on an analog extension of a phone system:
Some phone systems do not conform to analog telecom standards and might
not be compatible with the 1600A Series emergency phones. For a detailed
description of the telephone line specifications required for any of the 1600A
Series phones, see DOD 869.
E-1600A-RT-EWP
E-1600A-RTM-EWP
ADA Emergency Phone
Replacements for RAMTEL
August 26, 2024
E-1600A-RTM-EWP
(Ramtel 733M Replacement)
Applications
• Stairwells in public buildings
• Entryways
• Campus emergency stations
• Roadside emergency stations
• Stadiums
• Convention centers
Specifications
