TECHNICAL
TECHNICAL
S
S
Direct Physical Replacement for: Talk-A-Phone models ETP-400V and
ETP-400DV, GAI-Tronics models 397-001, 397-002, 397-003 and 397-004
For use with Talk-A-Phone or GAI-Tronics tower, stan-
chion, pedestal, surface, wall and flush mount enclo-
sures. Code Blue towers require redrilling and tapping.
The E-1600A-TP-EWP, E-1600A-TP2-EWP or E-
1600A-GT-EWP will call up to 5 programmable emer-
gency numbers, as well as 2 central station numbers
and send a digital announcement to identify the location
of the emergency call. The included BLK-4 control
module will supply a contact or switched 12V DC to acti-
vate a strobe light. In addition, the E-1600A-TP2-EWP
features a second "Info" button that will dial up to 3 non-
emergency numbers.
Though the strobe requires external power to operate,
voice communication is possible during power failures.
All phone numbers, location numbers, voice announce-
ment and programming parameters are stored in non-
volatile memory. No batteries are required.
The E-1600A-TP-EWP, E-1600A-TP2-EWP and E-
1600A-GT-EWP are equipped with Enhanced Weather
F
e
a
t
u
r
e
s
F
e
a
t
u
r
e
s
• New Automatic Noise Canceling (ANC) feature for proper opera-
tion in noisy environments
• Enhanced Weather Protection (EWP), EWP products are designed to
meet IP66 Ingress Protection Rating, see DOD# 859
• Meets ADA requirements for Emergency Phones:
- Automatically lights the "Call Connected" LED
- Transmits a unique location I.D. code or voice announcement
- Grade 2 Braille label for the visually impaired
• Non-volatile digital voice announcer with 16 seconds of voice memory
• Provides contact or switched 12V DC for controlling a strobe light
• Advanced call progress detection
• Handsfree operation
• Phone line powered emergency phone (BLK-4 requires power)
• Non-volatile memory (no batteries required)
• Marine grade 316 stainless steel prevents corrosion
• Dials up to 5 emergency numbers
• E-1600A-TP2-EWP can also dial up to 3 non-emergency "Info" num-
bers
• Cycles through backup phone numbers on busy or no-answer
• Hangs up on CPC, silence, busy signal, dial tone, time-out or touch
tone command
• Programmable to auto-answer on incoming calls
• Remotely programmable
• Extended temperature range (-15°F to 130°F)
• Central Station Monitoring capability (dials 2 numbers)
• Separate central station voice speed dial number
• Optional PB-100 Polling System available
• High visibility, vandal and weather resistant
C
C
E
C
U
R
I
T
Y
A
N
D
O
E
C
U
R
I
T
Y
A
N
D
O
P
r
a
c
P
r
a
c
S
S
M
M
U
N
I
C
A
T
I
O
N
O
M
M
U
N
I
C
A
T
I
O
N
O

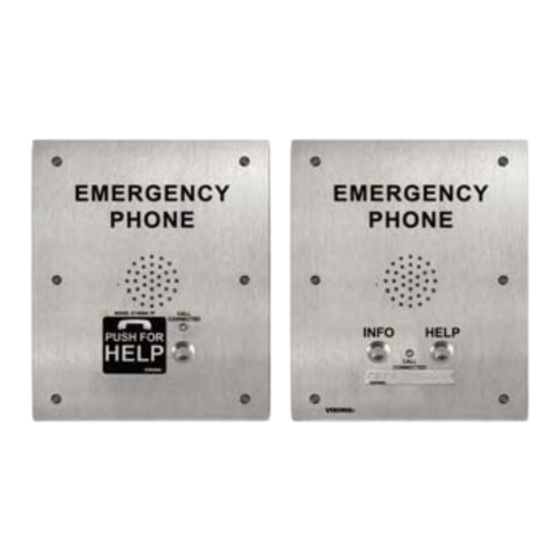

E-1600A-TP-EWP
Protection (EWP) for outdoor installations where the unit
is exposed to precipitation or condensation. EWP prod-
ucts feature foam rubber gaskets and boots, sealed con-
nections, gel-filled butt connectors, as well as urethane or
thermal plastic potted circuit boards with internally sealed,
field-adjustable trim pots and DIP switches for easy on-
site programming. For more information, see DOD# 859.
A
p
p
l
A
p
p
• Replacing weather damaged Talk-A-Phone or GAI-Tronics
panel phones
• Campus Security Sites
• Area of Refuge sites
• Parking Ramps/Lots
• Automated Tellers (ATM)
• Entryways
• Roadside Emergency Sites
• Stairwells in Public Buildings
CAUTION - When installing on an analog extension of a phone system:
Some phone systems do not conform to analog telecom standards and might
not be compatible with the 1600A Series emergency phones. For a detailed
description of the telephone line specifications required for any of the 1600A
Series phones, see DOD# 869.
S
p
e
c
S
p
e
c
Phone Power: Telephone line powered. Minimum 24V DC talk battery
voltage, with a minimum loop current of 20mA. Loop current may be
boosted on low current lines with a Viking Model TBB-1B talk battery
booster (DOD# 632).
BLK-4 Control Module: 120V AC/12V DC 500mA, UL listed adapter pro-
vided
Dimensions: See Installation
Shipping Weight:
Mounting: Flush mount to Talk-A-Phone ETP towers, wall mounts, boxes
and pedestals
Environmental: -26°C to 54°C (-15°F to 130°F) with up to 100% con-
densing humidity
Material: .105" (12 gauge) brushed Marine grade 316 stainless steel
Connections: Color-coded wires with gel-filled butt connectors
E-1600A-TP-EWP
E-1600A-TP-EWP
E-1600A-TP2-EWP
E-1600A-TP2-EWP
E-1600A-GT-EWP
E-1600A-GT-EWP
t
i
c
e
t
i
c
e
ADA Emergency Phone Replacements
for Talk-A-Phone and GAI-Tronics
L
U
T
I
O
N
S
L
U
T
I
O
N
S
E-1600A-TP2-EWP
Material: Brushed 316 Stainless Steel
i
c
a
t
i
o
n
s
l
i
c
a
t
i
o
n
s
i
f
i
c
a
t
i
o
n
s
i
f
i
c
a
t
i
o
n
s
2.9 kg (6.4 lbs)
May 18 , 2015
E-1600A-GT-EWP
Advertisement
Table of Contents
Related Manuals for Viking E-1600A-TP2-EWP
Summary of Contents for Viking E-1600A-TP2-EWP
- Page 1 • Non-volatile memory (no batteries required) • Marine grade 316 stainless steel prevents corrosion • Dials up to 5 emergency numbers • E-1600A-TP2-EWP can also dial up to 3 non-emergency “Info” num- bers Phone Power: Telephone line powered. Minimum 24V DC talk battery voltage, with a minimum loop current of 20mA.
- Page 2 TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
- Page 3 Remote Trigger Switch Yellow (see section G on page 4) White *** Note: When wires are routed from above, a “drip loop” is recommended to keep water away from the circuit board. B. E-1600A-TP-EWP and E-1600A-TP2-EWP Panel Dimensions 9.50 7.750 0.75 4.50 EMERGENCY 5.125...
-
Page 4: Dip Switches
CALL 2.725 CONNECTED PUSH FOR Grade 2 Braille Label HELP 4.800 VIKING © (6) 0.250 diameter holes (clearance holes for #10-32 cap head screws, not included) Marine grade 316 stainless steel faceplate 2.800 and push button switch (sealed per IP67) BLK-4 Control Module A. - Page 5 Step 5. When finished programming, move DIP switch 3 back to the ON position (see section J). Warning: Failure to do step 5 above will cause the 1600A Series to call Viking Technical Support instead of your programmed number. Note: If a valid memory position is entered, a double beep will be heard, four beeps indicate an error.
-
Page 6: Speed Dial Numbers
“INFO” button is first pressed. Additional information speed dial numbers will be dialed when there is no answer and the next number redial feature is activated. The E-1600A-TP2-EWP phone will cycle through the programmed speed dial numbers until answered. To program, enter the desired speed dial number followed by the location number (#07 - #09). To clear a speed dial location, simply enter the location (#07 - #09) alone. -
Page 7: Identification Number
E. Identification Number (memory location #20) The Touch Tone I.D. number (up to 20 digits) is used by emergency personnel to identify the location of the caller and is given out when the receiving party presses a Touch Tone Q. The security office can display the number using a Touch Tone decoder. - Page 8 G. Voice Announcer/Miscellaneous Options (memory location #17) The 1600A series phones have a built-in non-volatile digital voice announcer that may be used to identify the location of the emergency phone call. The 16 seconds of digital record time is recorded remotely from a Touch Tone phone. Programming options are as follows: Dial: A + B + C + D + E + F + # + 1 + 7 Factory Default Setting: 0 + 0 + 1 + 2 + 1 + 0...
-
Page 9: Recording The Announcement
CO line, or behind a "dial 9" PBX. The 1600A Series phone will first dial 9, and then listen for second dial tone; if detected it will continue to dial Viking’s assisted programming phone number. If a second dial tone is not detected, it then knows is not behind a PBX, so it will momentarily hang up and then directly dial Viking’s assisted programming phone number. - Page 10 #06 for Central Station Voice Line two-way voice communication Voice: Info (E-1600A-TP2-EWP only) Notes: If only a central station is to be dialed, the central sta- Voice: Info (E-1600A-TP2-EWP only) tion phone number must be preprogrammed in memory loca- Voice: Info (E-1600A-TP2-EWP only) tion #05 and memory locations #00-#04 must be cleared.
- Page 11 2. Central Station Formats The following examples explain the receiver formats and how to properly program memory location #20. Each for- mat starts with a four digit account code. This is the code that is assigned by your central station for billing purpos- es.
-
Page 12: Standard Operation
LED and goes into the “two-way talk mode” or hangs up and dials position #06 if programmed. Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries assume no responsibility for errors and omissions contained in this information.
