Rectifying faults

Machine faults (error messages)

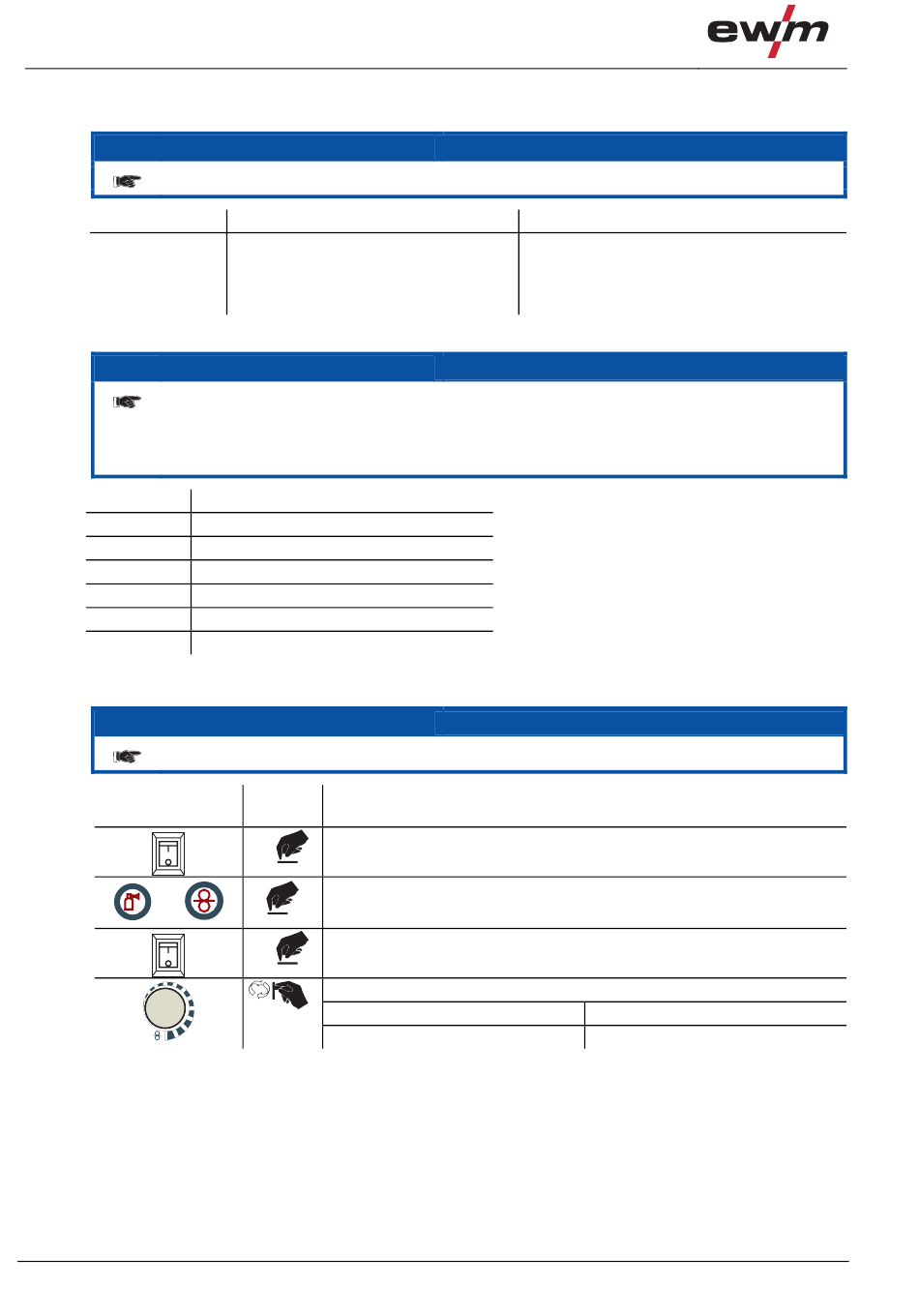

7.2 Machine faults (error messages)
Only with the M2.4x machine control.
Error message
Pol. (M2.41)
7.2.1

Check the machine type setting

After switching on, the machine type that has been set is displayed for a short time,
denoted as "tyP".
If the machine type displayed does not match the machine, you have to correct this
setting.
„tyP 00" Saturn 251
„tyP d00" Saturn 256
„tyP 01" Saturn 301
„tyP 02" Saturn 351
„tyP d02" Wega 351, Saturn 351 DG
„tyP d03" Wega 401,451
„tyP d04" Wega 501,601
7.3

Setting the machine type

Only with the M2.4x machine control.
Operating
element
+
m/min
26
Possible cause
The selected welding current polarity
does not match the machine
configuration
Action Result
Switch off the welding machine.
1 x
Press and hold both buttons.
Switch on the welding machine, "Anl" is shown on the display.
1 x
Whilst "Anl" is being displayed, set the machine type:
0 - Saturn 251
1 - Saturn 301
NOTE
Remedy
Set the changeover switch for the welding
current polarity (welding voltage display) on
the rear of the machine's power source to
the selected polarity.
NOTE
NOTE
2 - Saturn 351
3 - all decompact (DK)
099-005167-EW501
29.06.2010
