Item
Symbol Description
1
2
3
4
•
Place the shielding gas cylinder into the relevant cylinder bracket.
•
Secure the shielding gas cylinder using a securing chain.
•
Tighten the pressure reducer screw connection on the gas bottle valve to be gas-tight.
099-005167-EW501
29.06.2010
0
Pressure reducer
Shielding gas cylinder
Output side of the pressure reducer
Cylinder valve
Design and function

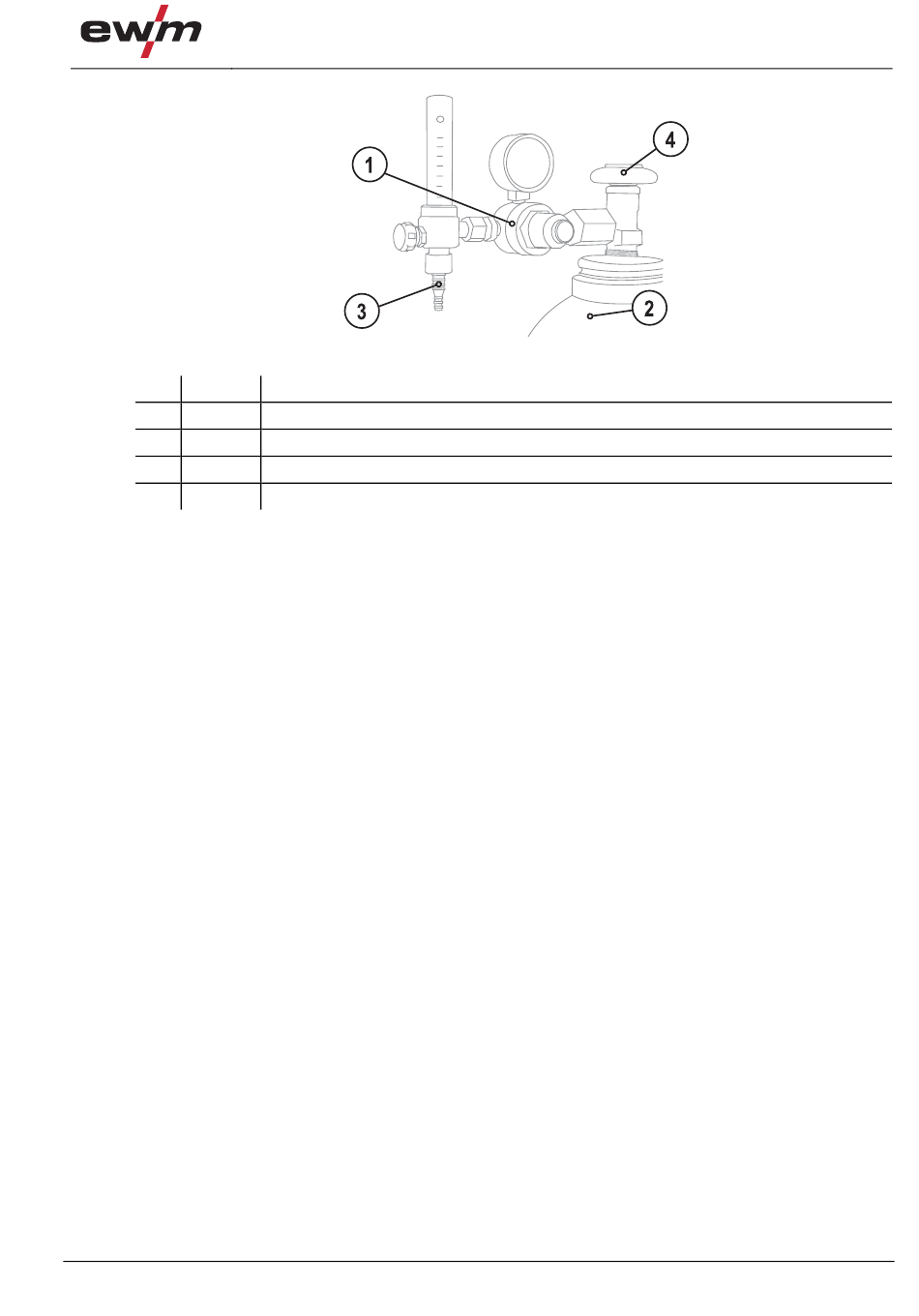

Figure 5-3
Shielding gas supply
21
