4.2
Rear view
Item
Symbol Description
1
42V/4A
2
3
4
5
6
7
8
9
10
11
099-005167-EW501
29.06.2010
Machine description – quick overview
0
Key button, automatic cutout
Wire feed motor supply voltage fuse
press to reset a triggered fuse
Changeover switch for welding current polarity (welding voltage display)
Depending on the polarity selected on the welding torch (standard MIG or cored wire
welding) it is necessary to set this status on the machine to ensure the welding voltage
is displayed correctly.
Position A: Standard MIG welding (factory setting)
Position B: Cored wire welding (self-shielding)
Earth cable connecting (PE)
Connection of green-yellow earth cable from the intermediate tube package
7-pole connection socket
Wire feed unit control lead
Connector plug, welding current "+"
Welding current connection on wire feed unit
Securing elements for shielding gas cylinder (strap/chain)
Cooling air outlet
Bracket for shielding gas cylinder
Conveyor rolls, fixed castors
Mains connection cable
Intermediate tube package strain relief

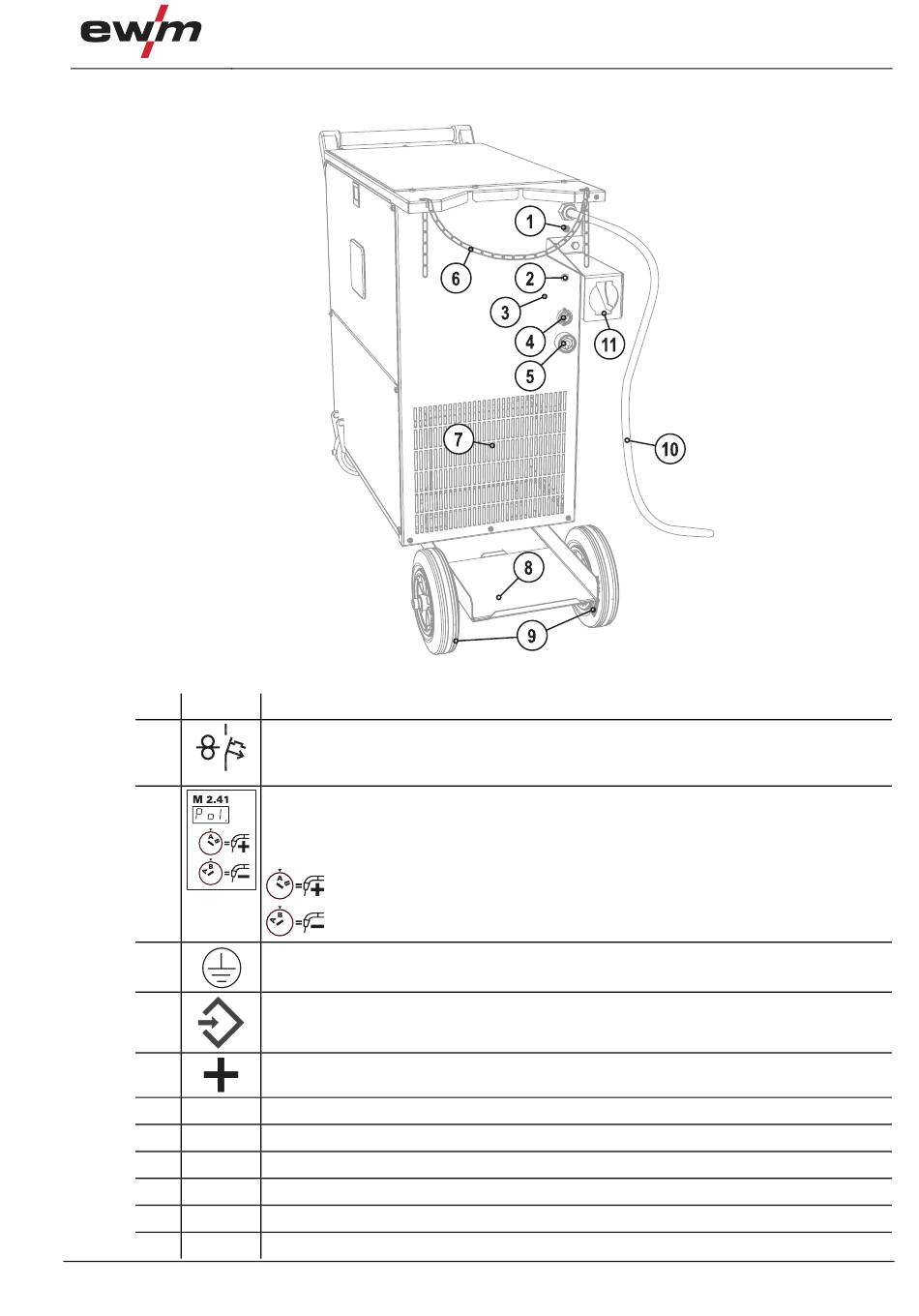

Figure 4-2
Rear view
15
