Configuration Chart; Hardware And Accessories; Installation Instructions - Altronix TROVE PLUS T3M77XK1V Installation Manual

Altronix Trove Plus kits are pre-wired, pre-assembled and consist of Trove3M3 enclosure/backplane with factory installed Altronix power supply/
charger(s) and sub-assemblies, wire harnesses and finger duct.
Altronix
Model Number
T3M77XK1
T3M77XK2
T3M77XK3
6.3A/
5.4
250V
T3M77XK1D
T3M77XK2D
T3M77XK3D
• Two (2) tamper switches (Altronix Model TS112 or equivalent).
• Cam lock.
• Battery leads.
• 16 Gauge enclosure with ample knockouts for convenient access.
• Enclosure Dimensions (H x W x D): 36.12" x 30.125" x 7.06" (917.5mm x 768.1mm x 179.3mm).
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws
in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws, level and secure.
Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install
the three fasteners. Place the enclosure's upper keyholes over the three upper screws.
Install the three lower screws and make sure to tighten all screws.
3. Mount included UL Listed tamper switches (Altronix Model TS112 or equivalent) in desired
location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure
approximately 2" from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the
Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the door of the enclosure.
4. Mount Mercury boards to backplane, refer to pg. 3, 4.
5. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow104NBV
and corresponding Sub-Assembly Installation Guides for PDS8(CB) and ACMS8(CB) for
further installation instructions.
6. Position Lenel/Mercury access controller module over corresponding spacers and depress onto
snap on spacers (Fig. 2-4, pg. 3-5).
7. Mount backplane to enclosure with hardware.
- 2 -

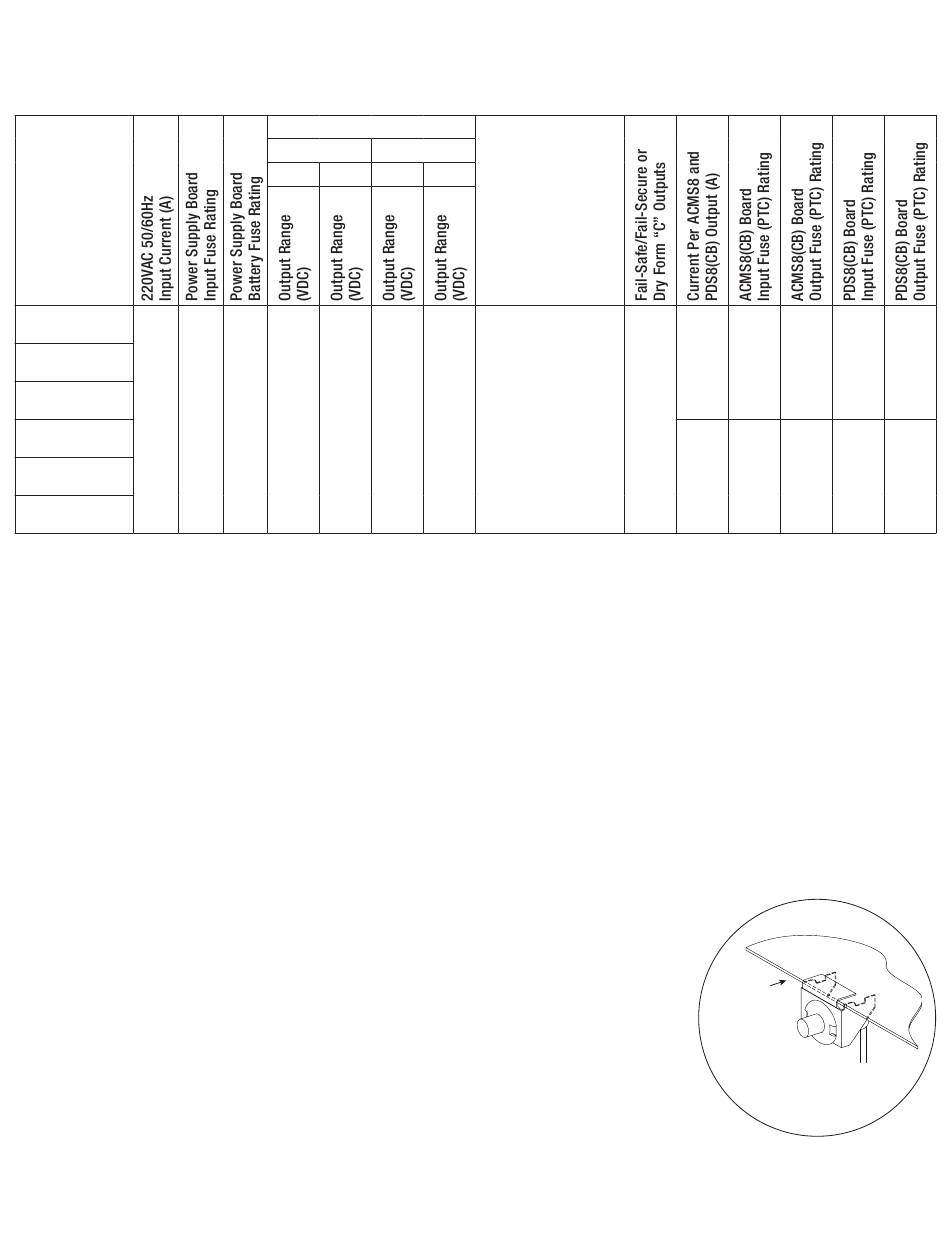

Configuration Chart:

Nominal DC Output Voltage
Power Supply 1 Power Supply 2
[DC] [Aux] [DC]
15A/ 20.17- 20.28- 20.17-
32V 26.4 26.4 26.4

Hardware and Accessories:

Installation Instructions:

Overview:
[Aux]
Maximum Supply
Current for Main and
Aux. Outputs on
Power Supply board
and ACMS8(CB)
Access Power
Controller's outputs
20.28-
24VDC @ 9.4A
26.4
Mechanical:
15A/ 3A/
2.5
32V 32V
16
2.0 9A 2.5A
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
T3M77XKV Kit Series Installation Guide
10A/ 3A/
32V 32V
9A 2.5A
Fig. 1
