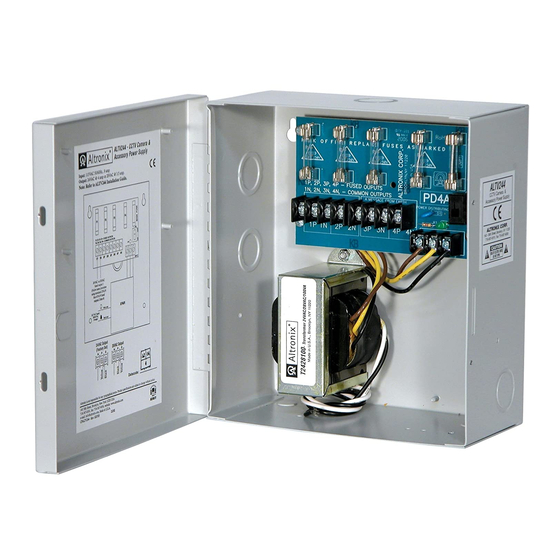

ALTV244 Series
CCTV Power Supplies
Installation Guide
Models Include:
ALTV244
- 24VAC @ 4A (100VA)
or 28VAC @ 3.5A.
- Four (4) Fuse Protected Outputs.
ALTV244175
- 24VAC @ 7.25A (175VA)
or 28VAC @ 6.25A.
- Four (4) Fuse Protected Outputs.
ALTV244300
- 24VAC @ 12.5A (300VA).
or 28VAC @ 10A.
- Four (4) Fuse Protected Outputs.
For models with the factory installed 3-wire line cord add suffix "3", e.g. ALTV2443003.
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
ALTV244CB
- 24VAC @ 4A (100VA)
or 28VAC @ 3.5A.
- Four (4) PTC Protected Outputs.
ALTV244175CB
- 24VAC @ 7.25A (175VA)
or 28VAC @ 6.25A.
- Four (4) PTC Protected Outputs.
ALTV244300CB
- 24VAC @ 12.5A (300VA).
or 28VAC @ 10A.
- Four (4) PTC Protected Outputs.
Rev. 020705
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix ALTV244
Summary of Contents for Altronix ALTV244
-
Page 1: Installation Guide
ALTV244 Series CCTV Power Supplies Installation Guide Models Include: ALTV244 ALTV244CB - 24VAC @ 4A (100VA) - 24VAC @ 4A (100VA) or 28VAC @ 3.5A. or 28VAC @ 3.5A. - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. -
Page 2: Specifications
Overview: These Altronix CCTV Power Supplies provide 24VAC or 28VAC distributed via four (4) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Four (4) Output ALTV244 Reference Chart: Output 115VAC Total Current Main 50/60Hz... -
Page 3: Terminal Identification
6. Connect devices to the terminals marked [1P - 1N] through [4P - 4N] on PD4/PD4CB board, carefully observing correct polarity (Fig. 1, pg. 4). 7. Slide switch SW1 to ON position (Models ALTV244 and ALTV244CB), (Fig. 1, pg. 4). Turn main switch on all other models to the “RESET” (ON) position. - Page 4 ALTV244 1P, 2P, 3P, 4P = FUSED OUTPUTS 1N, 2N, 3N, 4N = COMMON OUTPUTS INPUT 24VAC or 28VAC fused output 1 (Follow same procedure Voltage Selection using terminals 2P & N through 4P & N fused Configuration outputs 2 through 4)
- Page 5 ALTV244175 1P, 2P, 3P, 4P = FUSED OUTPUTS 1N, 2N, 3N, 4N = COMMON OUTPUTS INPUT 24VAC or 28VAC fused output 1 (Follow same procedure using terminals 2P & N through 4P & N fused outputs 2 through 4) Power Switch Voltage Selection Configuration...
- Page 6 ALTV244300 Power Switch Transformer underneath power supply board Voltage Selection Configuration Black Lead White Lead 24VAC Output (Yellow) (Black) ALTV244300CB 28VAC Power Switch Output (Black) (Yellow) Transformer underneath power supply board Black Lead White Lead - 6 - ALTV244series Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 7 Enclosure Dimensions (H x W x D) for: • ALTV244 • ALTV244CB 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm) 7.25” (184.15mm) 3.625” (184.15mm) 1.25” (31.75mm) 3.5” (88.9mm) 0.6” 0.6” 1.25” 6.05” (15.24mm) (15.24mm) (31.75mm) (153.67mm) 1.125” 1.125”...
- Page 8 (25.4mm) (25.4mm) 7.25” (184.15mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. MEMBER II1ALTV244Series I08O - 8 - ALTV244series Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
