AL1024ULX Series
Power Supply/Charger
Installation Guide
Models Include:
AL1024ULX
- Single Output.
AL1024ULXPD4
- Four (4) Fuse Protected Outputs.
AL1024ULXPD8
- Eight (8) Fuse Protected Outputs.
AL1024ULXPD16
- Sixteen (16) Fuse Protected Outputs.
For a red enclosure add an "R" suffix to the part #, e.g. AL1024ULXPD8R
Rev. 121012
AL1024ULXPD4CB
- Four (4) PTC Protected Outputs.
AL1024ULXPD8CB
- Eight (8) PTC Protected Outputs.
AL1024ULXPD16CB
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL1024ULX
Summary of Contents for Altronix AL1024ULX
-
Page 1: Installation Guide
AL1024ULX Series Power Supply/Charger Installation Guide Models Include: AL1024ULX - Single Output. AL1024ULXPD4 AL1024ULXPD4CB - Four (4) Fuse Protected Outputs. - Four (4) PTC Protected Outputs. AL1024ULXPD8 AL1024ULXPD8CB - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs. -
Page 2: Specifications

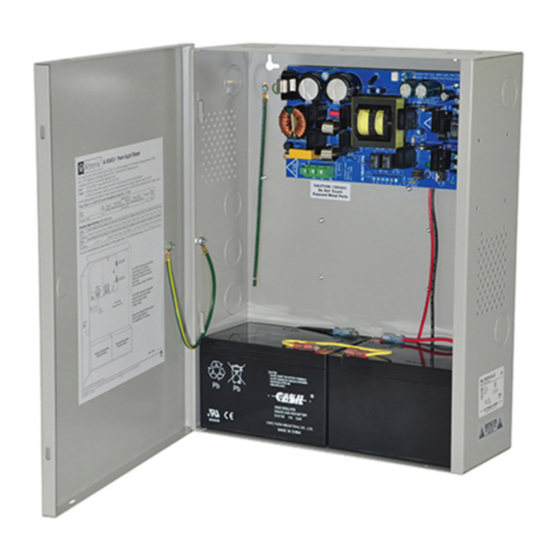

Overview: Altronix AL1024ULX is a power supply that converts a 115VAC / 60Hz input to a 24VDC regulating output (see specifications below). The AL1024ULX is the base power supply unit for the UL Listed multi-output power supply/charger series: AL1024ULXPD4, AL1024ULXPD4CB, AL1024ULXPD8, AL1024ULXPD8CB, AL1024ULXPD16, AL1024ULXPD16CB (Refer to AL1024ULX Series Power Supply Configuration Reference Chart below). - Page 3 Distribution Module(s) INPUT Optional Rechargeable Optional Rechargeable Stand-by Battery Stand-by Battery CAUTION: Optional rechargeable stand-by batteries must match the power supply output voltage setting. Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. AL1024ULX Series - 3 -...
-
Page 4: Installation Instructions
4. Connect devices to be powered: a. For AL1024ULX Power Supply: connect devices to the terminals marked [+ DC –] (Fig. 1, pg. 3) b. For other Power Distribution Models: connect devices to be powered to terminal pairs 1 to 4 marked [1P &... -
Page 5: Terminal Identification
Class 2 Rated Power-Limited From Power Supply DC Output to devices Board Non Power-Limited From Power Supply (Factory Installed) DC Output to devices Board 1P-8P Power Outputs, (Factory Installed) 1P-8P Power Outputs, 1N-8N Common Outputs 1N-8N Common Outputs AL1024ULX Series - 5 -... -
Page 6: Appendix A - Ul Listed Compatible Devices
Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL1024ULX output. System Sensor Max Stand-by Alarm Detector Type Smoke Detector/Base Current (mA) Current (mA) B112LP Base 0.12... - Page 7 J. Battery capacity required I*1.8 (safety factor) __________________ Note: AL1024ULX series power supply is designed to work with batteries up to 65AH. Please note: line [I] must not exceeds 36AH. You have to reduce either stand-by current consumption or stand-by time in order to comply with requirement.
- Page 8 (117.22mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIAL1024ULX Series C05R...
