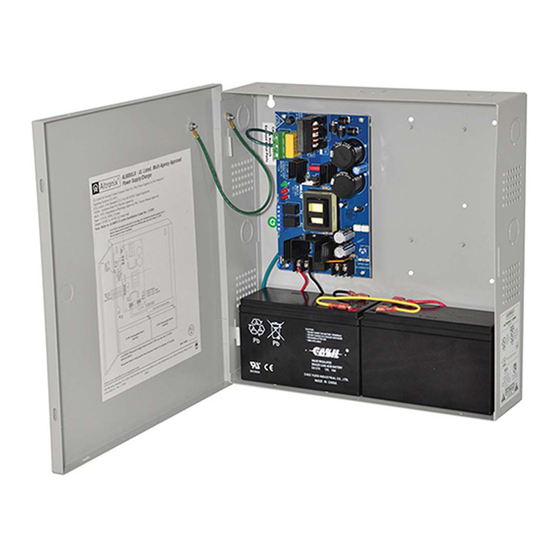

AL600ULX Series
Power Supply/Charger
Installation Guide
Models Include:
• AL600ULX
-
Single Output
• AL600ULPD4
-
Four (4) Fused Outputs
• AL600ULPD8
-
Eight (8) Fused Outputs
• AL600ULXPD16
-
Sixteen (16) Fused Outputs
For a red enclosure, add an "R" suffix to the part # e.g. AL600ULPD8R
For a larger enclosure, add "XX" to the suffix to the part # e.g. AL600ULXX
• AL600ULPD4CB
-
Four (4) PTC Outputs
• AL600ULPD8CB
-
Eight (8) PTC Outputs
• AL600ULXPD16CB
-
Sixteen (16) PTC Outputs
Rev. 120612
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL600ULX
Summary of Contents for Altronix AL600ULX
-
Page 1: Installation Guide
AL600ULX Series Power Supply/Charger Installation Guide Models Include: • AL600ULX Single Output • AL600ULPD4 • AL600ULPD4CB Four (4) Fused Outputs Four (4) PTC Outputs • AL600ULPD8 • AL600ULPD8CB Eight (8) Fused Outputs Eight (8) PTC Outputs • AL600ULXPD16 • AL600ULXPD16CB... -
Page 2: Specifications
Overview: The AL600ULX is a power supply that converts a 115VAC / 60Hz input to a 12VDC or 24VDC regulating output (see specifications below). The AL600ULX is the base power supply unit for the UL Listed multi-output power supply/charger series: AL600ULPD4, AL600ULPD4CB, AL600ULPD8, AL600ULPD8CB, AL600ULXPD16, AL600ULXPD16CB (Refer to AL600ULX Series Power Supply Configuration Reference Chart below). -
Page 3: Power Supply Output Specifications
CLOSED - 12V Optional Rechargeable Optional Rechargeable Stand-by Battery Stand-by Battery CAUTION: Optional rechargeable stand-by batteries must match the power supply output voltage setting. Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing. AL600ULX Series - 3 -... -
Page 4: Maintenance
5. Connect device(s) to be powered: a. For AL600ULX(R) Power Supply: connect devices to the terminals marked [+ DC -] (Fig. 1, pg. 3). b. For other Power Distribution Models: connect devices to be powered to the terminal pairs 1 to 4 marked [1P &... -
Page 5: Terminal Identification
Class 2 Rated Power-Limited From Power Supply DC Output to devices Board Non Power-Limited From Power Supply (Factory Installed) DC Output to devices Board 1P-8P Power Outputs, (Factory Installed) 1N-8N Common Outputs 1P-8P Power Outputs, 1N-8N Common Outputs AL600ULX Series - 5 -... -
Page 6: Appendix A - Ul Listed Compatible Devices
Appendix A - UL Listed Compatible Devices A.1 Four (4) Wire Smoke Detectors Table A-1 below lists four (4) wire smoke detectors compatible with AL600ULX output. System Sensor Max Stand-by Alarm Detector Type Smoke Detector/Base Current (mA) Current (mA) B112LP Base 0.12... - Page 7 Enclosure Dimensions (BC300): AL600ULX, AL600ULPD4, AL600ULPD4CB, AL600ULPD8 and AL600ULPD8CB 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm) 1.40” 4.85” 4.85” 1.40” (36mm) (123mm) (123mm) (36mm) 1.20” (31mm) 3.25” (83mm) 12.5” (318mm) 1.20” 1.20” 0.75” 0.75” (31mm) 11.0” (31mm)
- Page 8 (117.22mm) (117.22mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER IIAL600ULX Series A30N - 8 - AL600ULX Series...
