9 Technical data and accessories
9.2

Temperature sensor cable

Cable version
GEL 2444
(2-core temperature sensor cable)
GEL 2444
(4-core temperature sensor cable)
GEL 2444
(6-core temperature sensor cable)

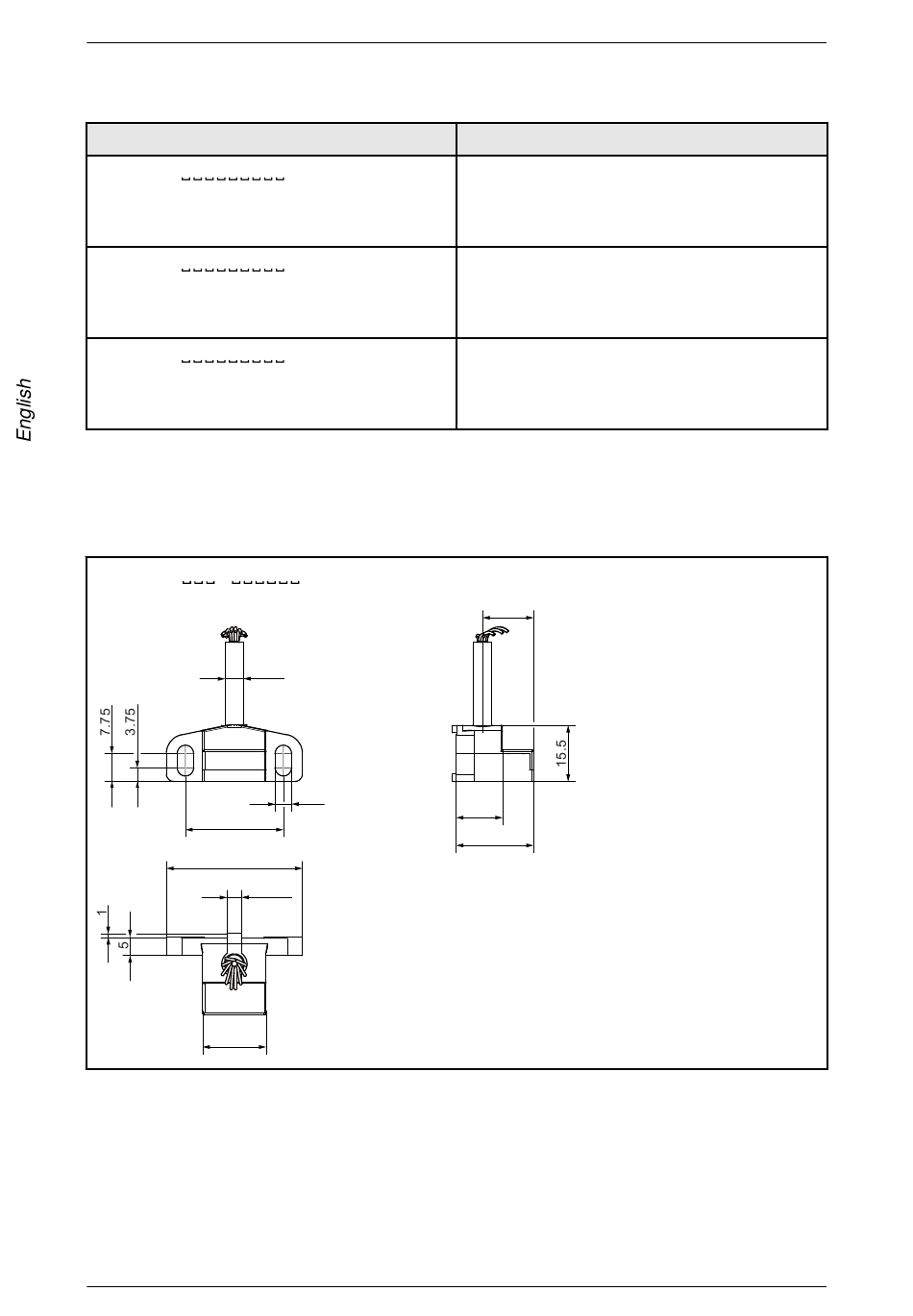

9.3

Dimensional drawings

All dimensions stated in millimeters
General tolerance ISO 2768 –mK
GEL 2444 R
27
37.5
17.5
70
Temperature sensor cable
M
N
P
ø
5
4.5
-0.05
-0.1
4
Technical data
● TEFLON cable 2 × 0.14 mm
● Outside diameter: 2.8 mm (± 0.1)
● Minimum bending radius: 20 mm
● ETFE cable 4 × 0.14 mm
● Outside diameter: 3.5 mm (± 0.2)
● Minimum bending radius: 7 mm
● ETFE cable 6 × 0.14 mm
● Outside diameter: 3.5 mm (± 0.2)
● Minimum bending radius: 7 mm
14.1
12.8
21.4
Lenord+Bauer
2
2
2
GEL 2444
