3 Prevention of damage
1
2

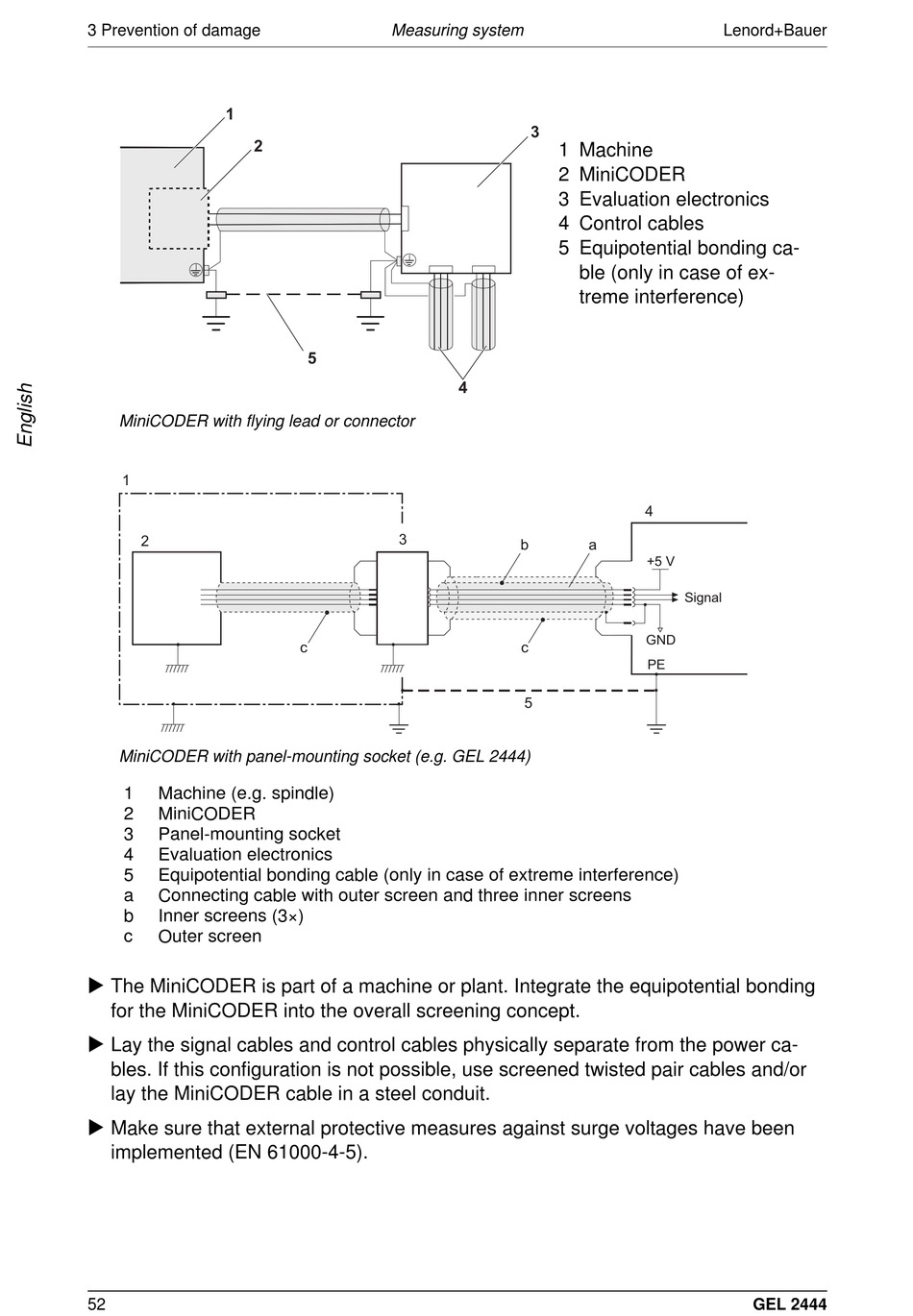

MiniCODER with flying lead or connector
1
2
MiniCODER with panel-mounting socket (e.g. GEL 2444)
1 Machine (e.g. spindle)
2 MiniCODER
3 Panel-mounting socket
4 Evaluation electronics
5 Equipotential bonding cable (only in case of extreme interference)
a Connecting cable with outer screen and three inner screens
b Inner screens (3×)
c Outer screen
 The MiniCODER is part of a machine or plant. Integrate the equipotential bonding
for the MiniCODER into the overall screening concept.
 Lay the signal cables and control cables physically separate from the power ca-
bles. If this configuration is not possible, use screened twisted pair cables and/or
lay the MiniCODER cable in a steel conduit.
 Make sure that external protective measures against surge voltages have been
implemented (EN 61000-4-5).
