Lenord+Bauer

6.3.2

Mounting

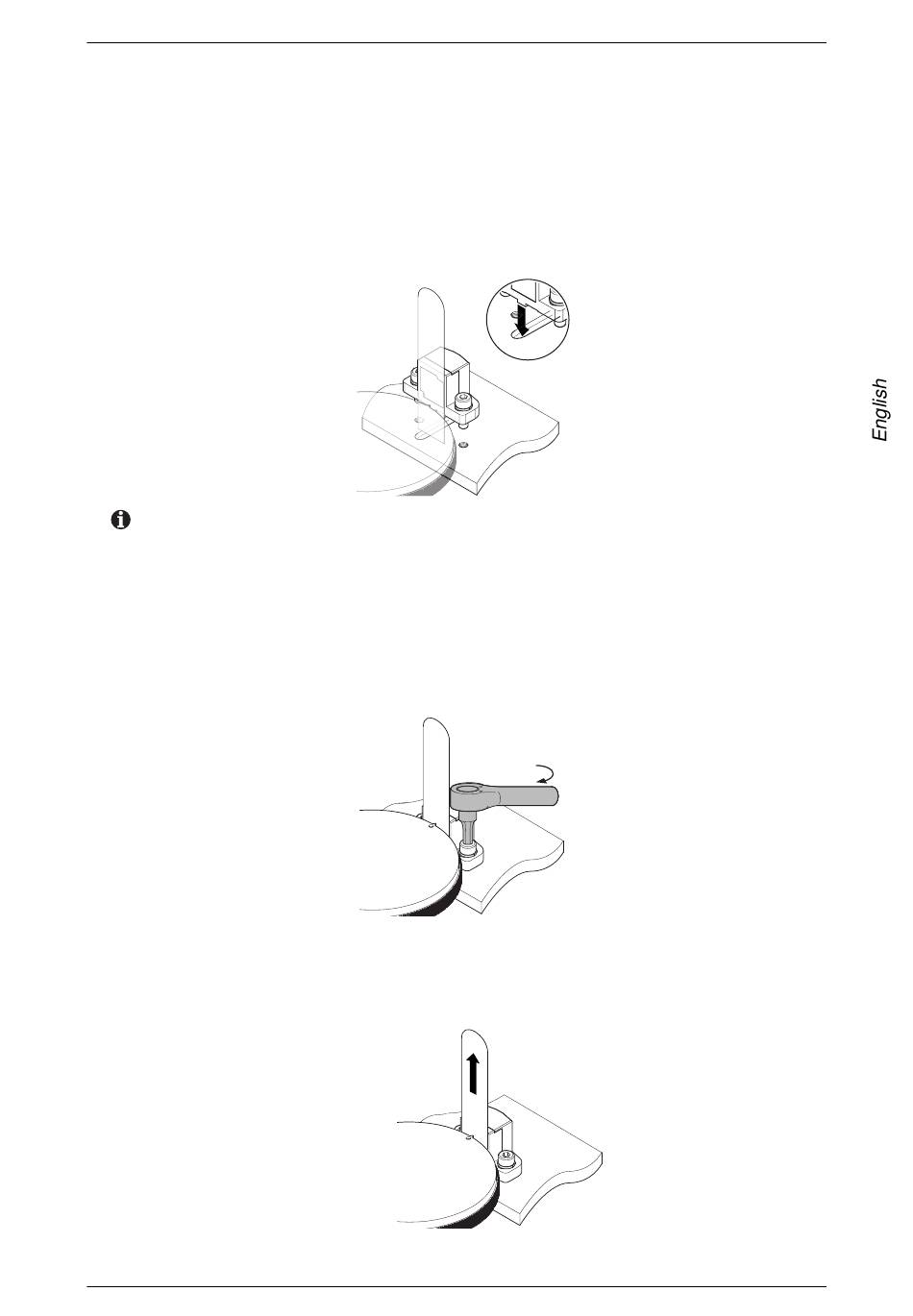

► Remove the MiniCODER and the matching distance gauge from the packaging.

► Wet 2 screws M4 (recommendation: DIN 912 M4×10) with threadlocker to prevent

unintentional loosening.

► Fit the screws with spring washers and washers in the slots on the flange.

► Place the distance gauge on the target wheel in the installation space.

Only use the distance gauge supplied as a mounting aid. It will protect the

measuring surface against mechanical damage during assembly and ensure

the correct adjustment of the air gap.

► Fit the two guide lugs on the MiniCODER in the guide slot on the mounting surface

and slide it against the distance gauge.

► Fix the MiniCODER by tightening the two screws to the torque (M) of max.

2.5 Nm.

► Check again the air gap with the aid of the distance gauge.

► Remove the distance gauge and keep it in a safe place for subsequent removal or

adjustment.

GEL 2444

Mounting MiniCODER

6 Mounting and connection
