Muse M-175 WI - FM Dual Alarm Clock Radio Manual

LOCATION AND DESCRIPTION OF CONTROLS

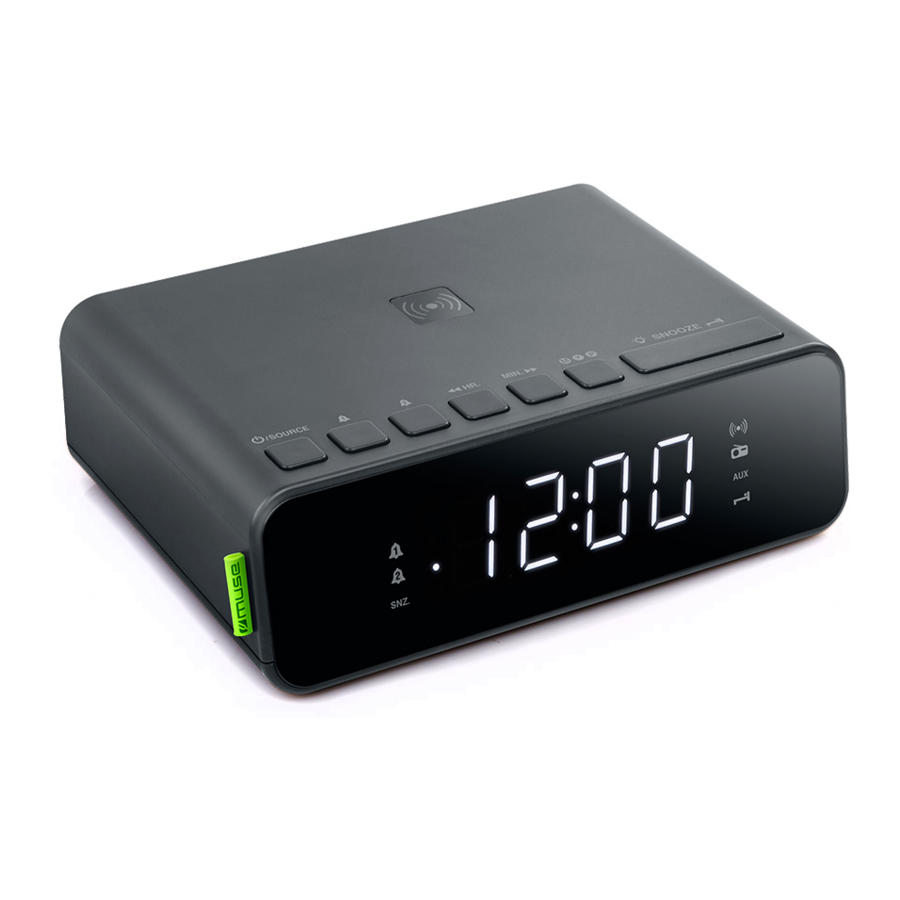

Device Overview

  1. : To turn unit on/off
    SOURCE: To select function mode: FM, AUX
  2. Alarm 1
  3. Alarm 2
  4. HR. Hour setting
    Tuning/ Setting down
  5. MIN. Minute setting
    Tuning /Setting up
  6. Memorization
    Setting the clock
    Presetting station
  7. Dimmer light intensity of the screen
    SNOOZE: Interval alarm repetition
    To fall asleep with the radio
  8. Wireless charging area
  9. Volume control
  10. LED display
  11. Alarm 1 indicator
  12. Alarm 2 indicator
  13. SNZ. Snooze indicator
  14. Wireless charging indicator
  15. Radio on indicator
  16. AUX: Aux indicator
  17. Sleep indicator
  18. Speaker
  19. AUX IN jack
  20. USB charging port
  21. DC IN jack
  22. FM wire antenna
  23. Battery compartment

POWER SUPPLY

AC ADAPTOR

The supplied AC adaptor is suitable for use on AC main supplies of AC 100-240V 50/60Hz and should only be connected to a mains supply within these parameters.

  • The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
  • Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
  • When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
  • Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
  • AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
  • Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

BACKUP SYSTEMS

DC: 2x1.5V, battery type AAA/R03/UM4 for back-up (not provided)

For optimal performance, alkaline batteries are recommended. These batteries must be replaced every six months.

Install the batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. In order to avoid leakage, remove the batteries when unit will not be used for a long period of time. Do not mix different types of batteries or old batteries with new ones.


Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Note: All settings are memorized, however, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash 0:00 to indicate this power failure and the necessity to redo your settings.

SETTING THE TIME

  1. In standby mode, press and hold button, the display will flash. Set the time with HR. and/or MIN..
  2. Press again to confirm.

Note: If during the adjustment time no key is activated in 9 seconds, the current display will be automatically stored.

TURNING UNIT ON/OFF

In standby mode, press once to turn on the unit. Press and hold to turn off the unit.

SELECTING FUNCTION

When the unit is ON, press SOURCE button repeatedly to select the desired function in cycle: FM, AUX.

LISTENING TO THE RADIO

Manual search

  1. Choose your radio station with or .
  2. Adjust the volume level by the VOLUME knob.
  3. To stop listening to the radio, press and hold to turn off the unit.

Automatic search
Press and hold for few seconds or . The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .

Note: During the search operation, the sound level is automatically muted.

To enhance radio reception ability: Extend the antenna.

Preset stations
This unit can store 20 FM stations.

Manual storage:

  1. Select a radio station manually or in automatic search.
  2. Press and hold until "P 01" blinks on the screen.
  3. Press or to select a channel.
  4. Press to save it.
  5. Repeat steps 1-4 to store other stations.

Listen to station presets
Press and repeat the operation as many times as necessary to select your station.
Adjust the volume level by the VOLUME knob.

SETTING THE ALARM AND THE ALARM MODE

  1. In standby mode, press and hold for a few seconds. The display blinks.
  2. Press HR. and/or MIN. to set the time of wake up, then press to confirm.
  3. Press HR. or MIN.to select the source of wake up: Buzzer or FM . Then press to confirm. Rotate VOLUME knob to set the alarm volume level, then press to confirm. The indicator will light up.

* Same procedure applies for Alarm 2 with button.

Note: The corresponding alarm indicator blinks when the alarm function is activated.

STOPPING THE ALARM

  1. Alarm repetition
    Press SNOOZE. The alarm stops and will sound again 9 minutes later. The snooze indicator lights up during the snooze time.
  2. Alarm stop
    Press or . The alarm will sound again the next day at the same time.
  3. Alarm Cancellation
    In standby mode, press to cancel the alarm permanently. The alarm indicator lights off.

In standby mode, press to cancel the alarm permanently. The alarm indicator lights off.

Note: Same procedure applies for Alarm 2 with button.

SLEEP FUNCTION

When the unit is ON, press and hold button to access sleep mode and repeatedly press button to select 120-90-60-30-15-10 or 05 minutes of listening. The sleep indicator will light up. The unit will automatically turn off after the specified time. To cancel the sleep function, press and hold button to access sleep mode and repeatedly press button until "OFF" is displayed. The sleep indicator lights off.

CONNECTING AUXILIARY SOURCE

  1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the back of unit (cable not included).
  2. When the unit is on, press SOURCE button on unit repeatedly to select AUX mode. The display will show " " for a few seconds and change to clock time. The AUX indicator will light up.
  3. Start playback from your auxiliary source.
  4. Adjust the volume to desired level.
  5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

DIMMER

Press repeatedly to select the brightness of the screen: high, low or OFF.

USB CHARGING

This unit is equipped with a built-in USB charging port (Output: 5V 1A) for recharging your mobile device (e.g. Smartphone, tablet, etc.)

Simply plug the USB charging cable (not included) into the USB charging port and connect it to your mobile device.

WIRELESS CHARGING

Wireless charging output: 5W

Put the smartphone on the wireless charging area on the top of unit, then the smartphone will be charged. The wireless charging indicator will light up.

Notes:

  • Use only one charging device, either USB charging port or wireless charging. Do not use together.
  • It may happen that the FM radio reception is affected while using wireless charging.
  • The wireless charging function only works with mobile devices that support this technology.
  • There are many wireless charging enabled devices in the market. We cannot guarantee to support all different models.

TECHNICAL SPECIFICATIONS

POWER SUPPLY:

AC adaptor:
Input: AC 100-240V
50/60Hz 1.0A
Output: DC 5.0V 3.0 A 15.0W

Battery back-up: DC 3V 2x1.5V, battery type AAA/R03/UM-4 (not provided)

RADIO: FM 87.5-108MHz

Specifications are subject to change without notice.

Hereby, NEW ONE S.A.S, declares that this MUSE M-175 WI is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

NEW ONE S.A.S 10, Rue de la Mission, 25480 Ecole Valentin, France
