Muse M-170 CR, M-170 CMR - Dual Alarm Clock Radio PLL Manual

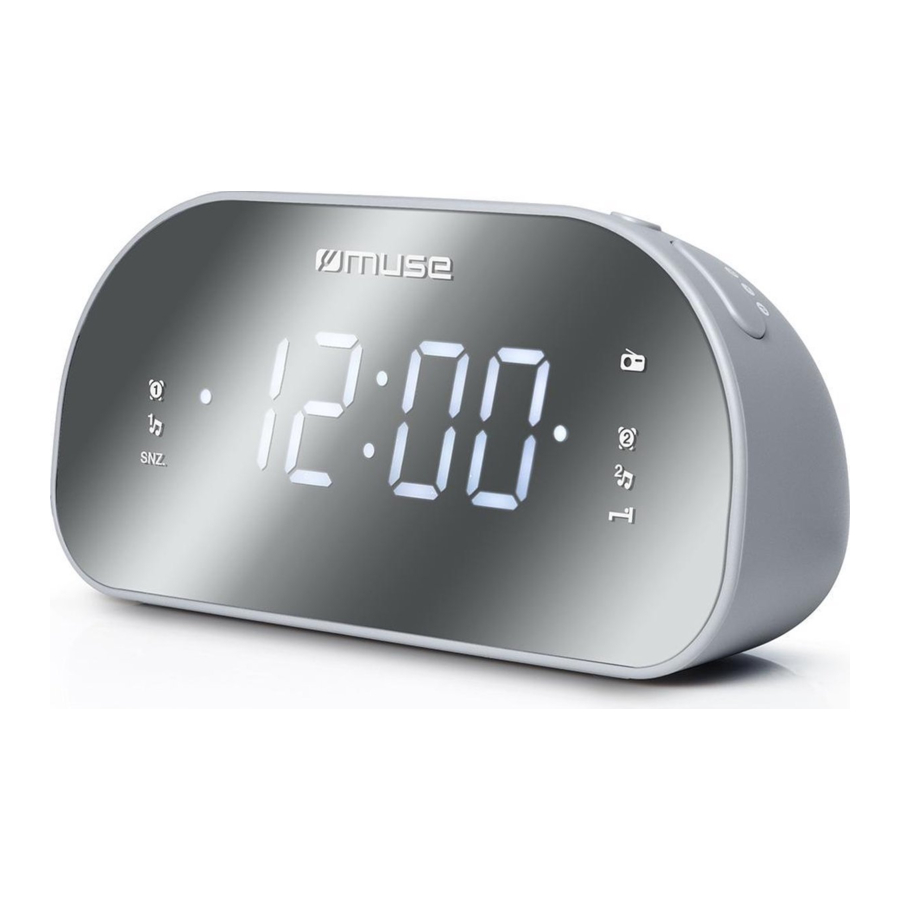

LOCATION AND DESCRIPTION OF CONTROLS

LOCATION OF CONTROLS

Please read the instruction carefully before operating the unit.

  1. LED display
  2. Alarm 1 indicator (wake up to buzzer)
  3. Alarm 1 indicator (wake up to radio)
  4. Snooze indicator
  5. Radio on indicator
  6. Alarm 2 indicator (wake up to buzzer)
  7. Alarm 2 indicator (wake up to radio)
  8. Sleep indicator
  9. To turn unit on/off
  10. Volume down
    Alarm 1
  11. Volume up
    Alarm 2
  1. Dimmer light intensity of the screen
    SNOOZE: Interval alarm repetition
    To fall asleep with the radio
  2. HR. Hour setting
    Setting down
  3. MIN. Minute setting
    Setting up
  4. Memorization
    Setting the clock
    Presetting station
  5. Speaker
  6. Battery compartment
  7. AC power cord
  8. FM wire antenna

POWER SUPPLY

AC: 230V 50 Hz
DC: 2x1.5V, battery type AAA/R03/UM4 (not provided) for back-up
For optimal performance, alkaline batteries are recommended.
These batteries must be replaced every six months.

  1. Insert the plug of power cord into a standard wall outlet.
  2. Install the batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. Do not attempt to recharge the batteries, they can catch fire or explode.


Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

BACKUP SYSTEM: All settings are memorized, however, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash to indicate this power failure and the necessity to redo your settings.

SETTING THE TIME

  1. In standby mode, press and hold button, the display will flash. Set the time with HR. hour and/or MIN. minutes.
  2. Press again to confirm.
    NOTE: If during the adjustment time no key is activated in 7 seconds, the current display will be automatically stored.

TURNING UNIT ON/OFF

In standby mode, press once to turn on the unit. Press again to turn off the unit.

LISTENING TO THE RADIO

Manual search

  1. Choose your radio station with or.
  2. Adjust the volume by or to the desired level.
  3. To stop listening to the radio, press to turn off the unit.

Automatic search

Press and hold for few seconds or . The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .
NOTE: During the search operation, the sound level is automatically muted.
To enhance radio reception ability:
FM: Extend the antenna.

Preset stations
This unit can store 20 FM stations.

Manual storage:

  1. Select a radio station manually or in automatic search.
  2. Press and hold until "P 01" blinks on the screen.
  3. Press or to select a channel.
  4. Press to save it.
  5. Repeat steps 1-4 to store other stations.

Listen to station presets
Press and repeat the operation as many times as necessary to select your station.
Press or to adjust sound level.

SETTING THE ALARM AND THE ALARM MODE

  1. In standby mode, press button repeatedly to select the source of wake up: Buzzer or FM. The corresponding alarm indicator lights up.
  2. Press and hold for a few seconds. The display blinks.
  3. Press HR. and/or MIN. to set the time of wake up.
  4. Press again to confirm.

* Same procedure applies for Alarm 2 with button.

Note:

  • The corresponding alarm indicator blinks when the alarm function is activated.
  • The previous level of listening is stored, the volume of the alarm will be identical. If you wake up with the radio, do not forget to check the volume level.

STOPPING THE ALARM

  1. Alarm repetition
    Press SNOOZE. The alarm stops and will sound again 9 minutes later. The snooze indicator lights up during the snooze time.
  2. Alarm stop
    Press or . The alarm will sound again the next day at the same time.
  3. Alarm Cancellation
    In standby mode, press to cancel the alarm permanently. The alarm indicator lights off. Note: Same procedure applies for Alarm 2 with button.

SLEEP FUNCTION

To fall asleep with the radio, press to turn on the unit, then press to select 120-90-60-30-15-10 or 5 minutes of listening. indicator lights up. The unit will automatically turn off after the specified time. To cancel the sleep function, press or to OFF.

DIMMER

In standby mode, press to select the brightness of the screen: high, low or OFF.

TECHNICAL SPECIFICATIONS

POWER SUPPLY:
AC 230V 50Hz, 4W consumption
DC 3V 2x1.5V, battery type AAA/R03/UM-4 (not provided) for back-up

RADIO: FM 87.5-108MHz

Hereby, NEW ONE S.A.S, declares that this MUSE M-170 CR/ M-170 CMR is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com
