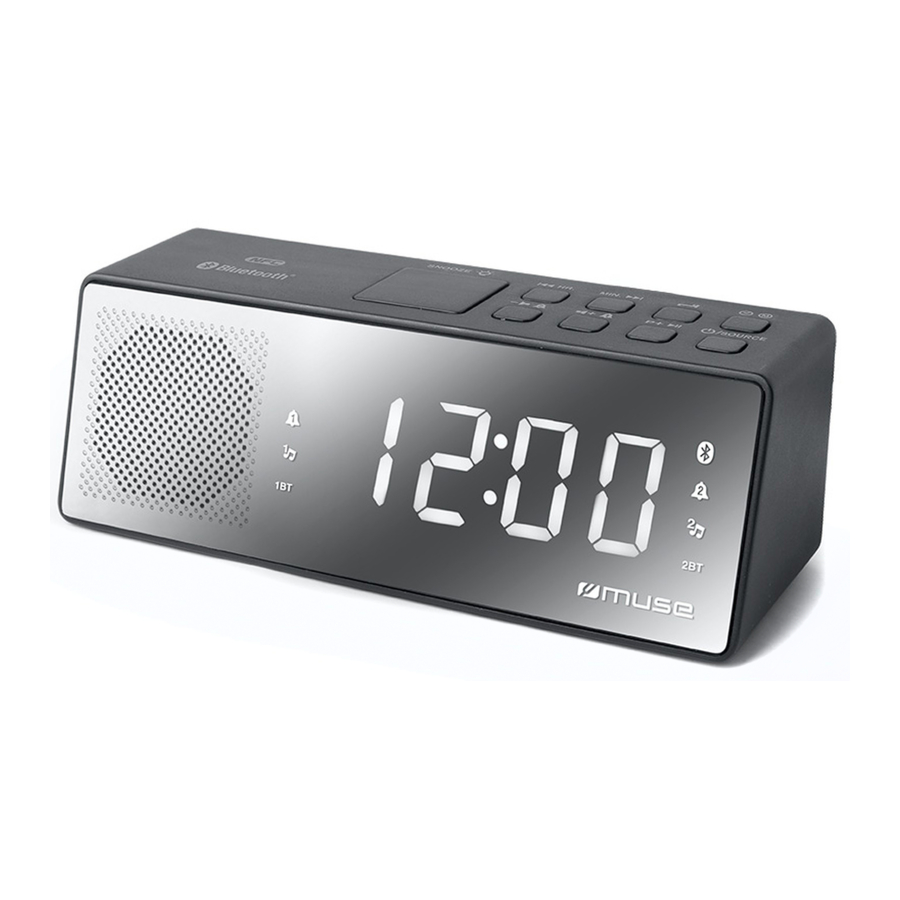

Muse M-173 CMT - Clock Radio Pll With Bluetooth Manual

LOCATION AND DESCRIPTION OF CONTROLS

Please read the instruction carefully before operating the unit.

1. LED display
2. Bluetooth indicator
3. Alarm 1 indicator (wake up to buzzer)
4. Alarm 1 indicator (wake up to radio)
5. 1BT Alarm 1 indicator (wake up to Bluetooth)
6. Alarm 2 indicator (wake up to buzzer)
7. Alarm 2 indicator (wake up to radio)
8. 2BT Alarm 2 indicator (wake up to Bluetooth)
9. Speaker
10. NFC Tag
11. : Dimmer light intensity of the screen
    SNOOZE: Interval alarm repetition
12. HR. Hour setting
    Skip / Tuning down

13. MIN. Minute setting
    Skip / Tuning up
14. To fall asleep with the Radio, Aux and Bluetooth mode
15. Setting the clock
    Memorization
16. Volume down
    Alarm 2
17. Volume up
    Alarm 1
18. P+: Preset up
    Play/Pause
19. / SOURCE: To turn unit on/off; To select FM, AUX or BLUETOOTH mode
20. Battery compartment
21. USB port for charging
22. AUX IN jack (3.5mm)
23. FM wire antenna
24. DC jack

POWER SUPPLY

Ac adaptor
The supplied AC adaptor is suitable for use on AC main supplies of AC 100-240V 50/60Hz and should only be connected to a mains supply within these parameters.
Batteries: 2x1.5V, battery type AAA/R03/UM4 (not provided) for backup.

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.
• For optimal performance, alkaline batteries are recommended. These batteries must be replaced every six months.
• Install the batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. In order to avoid leakage, remove the batteries when unit will not be used for a long period of time. Do not mix different types of batteries or old batteries with new ones.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

BACKUP SYSTEM: All settings are memorized, however, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash to indicate this power failure and the necessity to redo your settings.

TURNING UNIT ON/OFF

In Standby mode, press once to turn on the unit. Press and hold for 2 seconds to turn off the unit.

SELECTING FUNCTION

When the unit is ON, press SOURCE button repeatedly to select the desired function in cycle: FM, AUX, Bluetooth.

LISTENING TO THE RADIO

When the unit is on, press SOURCE button repeatedly to select FM mode. The display will show current frequency for a few seconds and change to clock time.

Manual Search

Automatic search
Press and hold or for few seconds. The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .
Note: For a better reception in FM, extend the antenna.

Preset stations
The unit can store 20 FM stations.

Manual storage:

Automatic storage
In FM mode, press and hold P+ for few seconds and the unit will automatically save the first 20 FM stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Listening to station presets
Press P+ and repeat the operation as many times as necessary to select your station.
Press or to adjust the sound level.

CONNECTING AUXILIARY SOURCE

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

Using a Bluetooth Device

Using a NFC Device
NFC (Near Field Communication) is a technology that enables shortrange wireless communication between NFC-enabled devices, such as mobile phones.

Note: The operational range between the main unit and a NFC device is approximately 10 meters.

Hereby, NEW ONE S.A.S, declares that this MUSE M-173 CMT is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

SETTING THE TIME

SETTING THE ALARM AND THE ALARM MODE

Note:

• The corresponding alarm indicator blinks when the alarm function is activated.
• When is the wake-up source, turn off the radio before alarm time reaches. Otherwise the alarm source will change to buzzer automatically if you are listening to the radio when the alarm time reaches.
• When 1BT is the wake-up source, make sure your Bluetooth device (e.g. Smartphone) is the most recently paired Bluetooth device to MUSE M-173 CMT, and the Bluetooth function is enabled on your Bluetooth device. When the alarm time is reached, the unit will automatically reconnect with your Bluetooth device and the songs in your Bluetooth device will start to play automatically.

* Same procedure applies for alarm 2 with button

STOPPING THE ALARM

1. Alarm repetition
   Press SNOOZE. The alarm stops and will sound again 9 minutes later. The Alarm indicator blinks during the snooze time.
2. Alarm stop
   Press or . The alarm1 will sound again the next day at the same time.
3. Alarm Cancellation
   In Standby mode, press button repeatedly until alarm indicator lights off.

* Same procedure applies for alarm 2 with button.

SLEEP FUNCTION

In sleep mode, the unit will turn off automatically after a specified time. You can select duration in minutes before the unit turns off automatically.

DIMMER

Press to select the brightness of the screen: high, low, or off.

USB CHARGING

This unit is equipped with a built-in USB charging port (Output: DC 5V 1A) for recharging your mobile device (e.g. Smartphone, tablet, etc.) Simply plug the USB charging cable (not included) into the USB charging port and connect it to your mobile device.

TECHNICAL SPECIFICATIONS

POWER SUPPLY: DC 5V 2A
RADIO: FM: 87.5-108 MHz
BLUETOOTH
Bluetooth Version: 5.0+EDR
Bluetooth: 2.402-2.48GHz
RF Output Power: 2 dBm
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device
Note: Design and specification are subject to change without notice.

MORE INFORMATION

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.
The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.
The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.
The Caution mark is located at the back of the device.

• The use of apparatus in moderate climates.
• The Marking plate is located at the back of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.
• The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)
NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
