Muse M-185 CR, M-185 CBL - Dual Alarm Clock Radio Manual

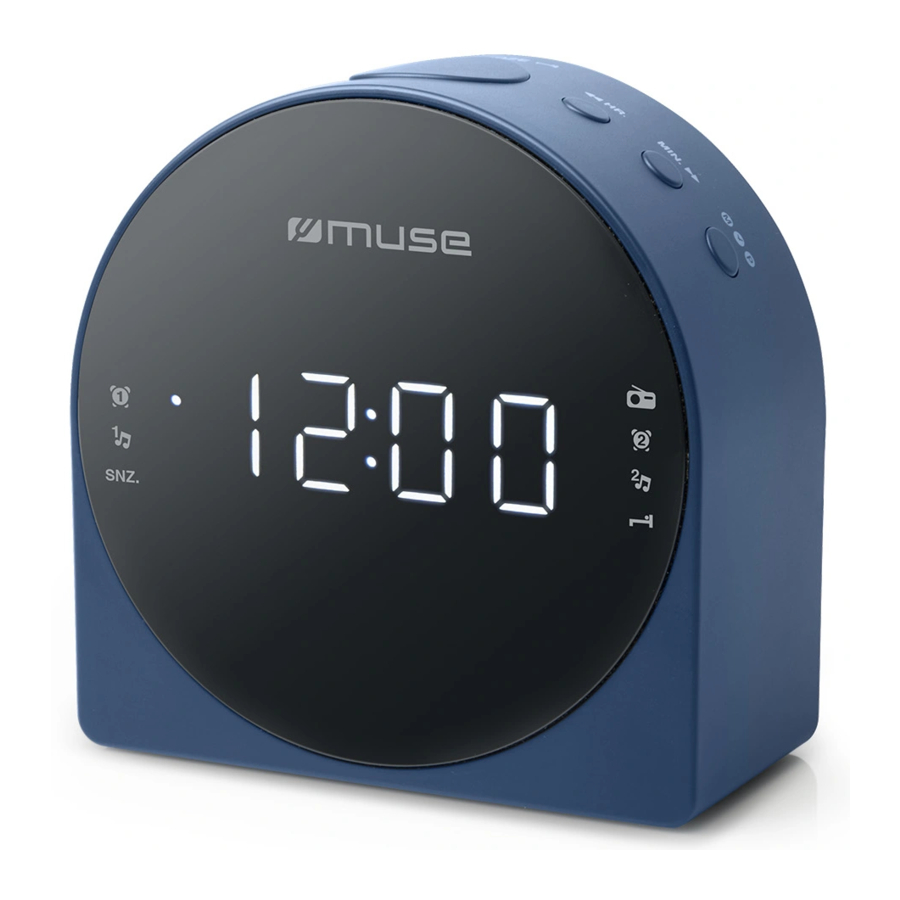

LOCATION AND DESCRIPTION OF CONTROLS

1. : To turn unit on/off
   SOURCE: To select function mode:
   FM, MW, AUX
2. Volume down
   Alarm 1
3. Volume up
   Alarm 2
4. Dimmer light intensity of the screen
   SNOOZE: Interval alarm repetition
   To fall asleep with the radio
5. HR. Hour setting
   Setting down
6. MIN. Minute setting
   Setting up
7. Memorization
   Setting the clock
   Presetting station
8. Alarm 1 indicator
   (wake up to buzzer)
9. Alarm 1 indicator
   (wake up to radio)
10. SNZ. Snooze indicator
11. Radio on indicator
12. Alarm 2 indicator
    (wake up to buzzer)
13. Alarm 2 indicator
    (wake up to radio)
14. Sleep indicator
15. LED display
16. Speaker
17. Battery compartment
18. AUX IN jack
19. FM wire antenna
20. AC power cord

POWER SUPPLY

AC: 230V 50Hz
DC: 2x1.5V, battery type AAA/R03/UM4 (not provided) for back-up For optimal performance, alkaline batteries are recommended. These batteries must be replaced every six months.

1. Insert the plug of power cord into a standard wall outlet.
2. Install the batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. Do not attempt to recharge the batteries, they can catch fire or explode.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

BACKUP SYSTEM: All settings are memorized, however, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash to indicate this power failure and the necessity to redo your settings.

SETTING THE TIME

1. In standby mode, press and hold button, the display will flash.
   Set the time with HR. hour and/or MIN. minutes.
2. Press again to confirm.
   NOTE: If during the adjustment time no key is activated in 3 seconds, the current display will be automatically stored.

TURNING UNIT ON/OFF

In standby mode, press once to turn on the unit. Press and hold to turn off the unit.

SELECTING FUNCTION

When the unit is ON, press SOURCE button repeatedly to select the desired function in cycle: FM, MW, AUX.

LISTENING TO THE RADIO

Manual search

1. Choose your radio station with or .
2. Adjust the volume by or to the desired level.
3. To stop listening to the radio, press and hold to turn off the unit.

Automatic search

Press and hold for few seconds or . The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .
NOTE: During the search operation, the sound level is automatically muted.

To enhance radio reception ability:
FM: Extend the antenna.
MW: Rotate the unit horizontally for optimum reception.

Preset stations

This unit can store 10 FM and 10 MW stations.

Manual storage:

1. Select a radio station manually or in automatic search.
2. Press and hold until "P 01" blinks on the screen.
3. Press or to select a channel.
4. Press to save it.
5. Repeat steps 1-4 to store other stations.

Listen to station presets

Press and repeat the operation as many times as necessary to select your station.
Press or to adjust sound level.

SETTING THE ALARM AND THE ALARM MODE

1. In standby mode, press button repeatedly to select the source of wake up: Buzzer or Radio. The corresponding alarm indicator lights up.
2. Press and hold for a few seconds. The display blinks.
3. Press HR. and/or MIN. to set the time of wake up.
4. Press again to confirm.

* Same procedure applies for Alarm 2 with button.

Note:

• The corresponding alarm indicator blinks when the alarm function is activated.
• The previous level of listening is stored, the volume of the alarm will be identical. If you wake up with the radio, do not forget to check the volume level.

STOPPING THE ALARM

1. Alarm repetition
   Press SNOOZE. The alarm stops and will sound again 9 minutes later. The snooze indicator lights up during the snooze time.
2. Alarm stop
   Press or . The alarm will sound again the next day at the same time.
3. Alarm Cancellation
   In standby mode, press to cancel the alarm permanently. The alarm indicator lights off.
   Note: Same procedure applies for Alarm 2 with button.

SLEEP FUNCTION

To fall asleep with the radio, press to turn on the unit, then press to select 120-90-60-30-15-10 or 5 minutes of listening. indicator lights up. The unit will automatically turn off after the specified time. To cancel the sleep function, press or to OFF.

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e. g. mp3 player) to the AUX IN jack on the back of unit (cable not included).
2. When the unit is on, press SOURCE button on unit repeatedly to select AUX mode. The display will show "" for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

DIMMER

In standby mode, press to select the brightness of the screen:
high, low or OFF.

TECHNICAL SPECIFICATIONS

POWER SUPPLY:
AC: 230V 50Hz, 4W consumption
DC: 3V 2x1.5V, battery type AAA/R03/UM-4 (not provided) for back-up

RADIO: FM 87.5 - 108MHz MW 522 - 1620kHz

Hereby, NEW ONE S.A.S, declares that this MUSE M-185 CR / M-185 CBL is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

IMPORTANT SAFETY INSTRUCTION

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.

The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.

The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.

The caution mark is located on bottom of the device.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

• The use of apparatus in moderate climates.
• The Marking plate is located at the back of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• The power plug is used as a disconnect device and must be easily accessible. To be completely disconnected from the power, the plug of the appliance should be disconnected completely. The socket must not be obstructed and should be easily accessible during intended use.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
