Muse M-081 R, M-081 RW - Portable Radio PLL Manual

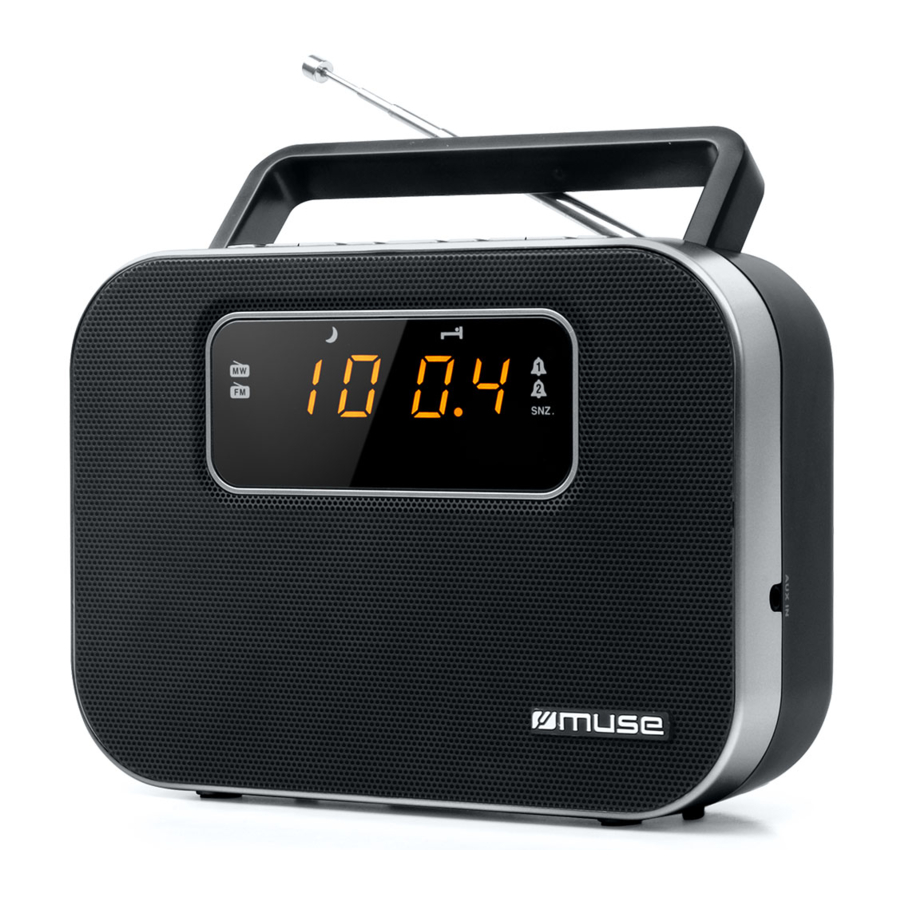

LOCATION AND DESCRIPTION OF CONTROLS

1. LED display
2. To turn unit on/off
   AUX: To select FM, MW or AUX mode
3. Volume down
   Alarm 2
4. Volume up
   Alarm 1
5. Nap
   To fall asleep with the radio
6. Dimmer light intensity of the screen
   SNOOZE : Interval alarm repetition
7. Setting the clock
   Memorization
8. HR. Hour setting
   Setting down
9. MIN. Minute setting
   Setting up
10. Auto scan and preset radio stations
11. Speaker
12. Battery & AC cord compartment
13. AC Power Cord
14. FM telescopic antenna
15. AUX IN jack
16. Carrying handle

Please read the instruction carefully before operating the unit.

POWER SUPPLY

AC: 230V 50 Hz (CE)

DC: 4x1.5V, battery type R14/ UM-2/"C" size (not provided)

For optimal performance, alkaline batteries are recommended.
These batteries must be replaced every six months.

1. Insert the plug of power cord into a standard wall outlet.
2. Install the batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. Do not attempt to recharge the batteries, they can catch fire or explode. The batteries need to be replaced when: The volume decreases, or sound is distorted during operation.

Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

Note:

• When the unit is powered by DC, if no button is pressed within 10 seconds, the display will light off in order to save the battery life.
• The AC cord must be unplugged from the power outlet for the unit to run on the batteries.
• When the set is connected to the mains, the power source automatically switches to AC.

SETTING THE TIME

1. In standby mode, press and hold button, the display will flash, set the time with HR. hour and/or MIN. minutes.
2. Press again to confirm.

NOTE:

• If during the adjustment time no key is activated in 5 seconds, the current display will be automatically stored.

TURNING UNIT ON/OFF

In standby mode, pressonce to turn on the unit. Press and hold for 2 seconds to turn off the unit.

LISTENING TO THE RADIO

Selecting band

When the unit is ON, pressrepeatedly to select FM or MW mode. The corresponding indicator lights up.

Manual search

1. Choose your radio station with or .
2. Adjust the volume by or to the desired level.
3. To stop listening to the radio, press and hold for 2 seconds to turn off the unit.

Automatic search

Press and hold for few seconds or . The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .

NOTE:
During the search operation, the sound level is automatically muted.

To enhance radio reception ability:
FM: Extend the telescopic antenna.
MW: Rotate the unit horizontally for optimum reception.

Preset stations

This unit can store 10 FM and 10 MW stations.

Manual storage

1. Select a radio station manually or in automatic search.
2. Press . "P 01" blinks on the screen.
3. Press or to select a channel.
4. Press to save it.
5. Repeat steps 1-4 to store other stations.

Automatic storage

Press and hold for few seconds and the unit will automatically save the first 10 FM stations or 10 MW stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Listen to station presets

Press and repeat the operation as many times as necessary to select your station.

Press or to adjust sound level.

SETTING THE ALARM AND THE ALARM MODE

1. In standby mode, press and hold for a few seconds, the display blinks.
2. Press HR. and/or MIN. to set the time of wake up.
3. Press then press or to select the source of wake up buzzer, or radio.
4. Press to confirm, the alarm indicator lights up.

Note:
Same procedure applies for Alarm 2 with button.

Note:

• The previous level of listening is stored, the volume of the alarm will be identical. If you wake up with the radio, do not forget to check the volume level.
  Press once to turn on the unit. Adjust the volume with or . Then press and hold for 2 seconds to turn off the unit.
• If you use the sleep mode with low sound level, you should use the buzzer to wake you up.

STOPPING THE ALARM

1. Alarm repetition
   Press SNOOZE. The alarm stops and will sound again 9 minutes later.

2. Alarm stop
   Press or . The alarm will sound again the next day at the same time.

3. Alarm Cancellation
   In standby mode, press to cancel the alarm permanently. The alarm indicator lights off.

Note:
Same procedure applies for Alarm 2 with button.

SLEEP FUNCTION

To fall asleep with the radio , press repeatedly to select FM or MW mode, then press to select 120-90-60-30-15-10 or 5 minutes of listening. indicator lights up. The unit will automatically turn off after the specified time. To cancel the sleep function, press or to OFF.

NAP FUNCTION

This function wakes you up after a short period of time. Only the buzzer may be selected.

1. In standby mode, press to select 120-90-60-30-15-10 or 5 minutes for your nap. The indicator lights up.
2. To stop the alarm, press or .
3. To cancel the function, press repeatedly until "OFF" is displayed.

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the right side of unit (cable not included).
2. Press AUX repeatedly to select AUX mode. "AU" appears on display.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

DIMMER

Press to select the brightness of the screen: high, low or OFF.

TECHNICAL SPECIFICATIONS

POWER SUPPLY:	AC 230V 50Hz, 4W consumption DC 6V 4x1.5V, battery type R14/UM-2/ "C" size (not provided)
RADIO:	FM 87.5-108MHz MW 522-1620kHz
DIMENSION:	180(L) x 71(W) x 132(H) mm

MORE INFORMATION

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.

The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.

The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.

• The use of apparatus in moderate climates.
• The Marking plate is located at the bottom of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• The power plug is used as a disconnect device and must be easily accessible. To be completely disconnected from the power, the plug of the appliance should be disconnected completely. The socket must not be obstructed and should be easily accessible during intended use.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
