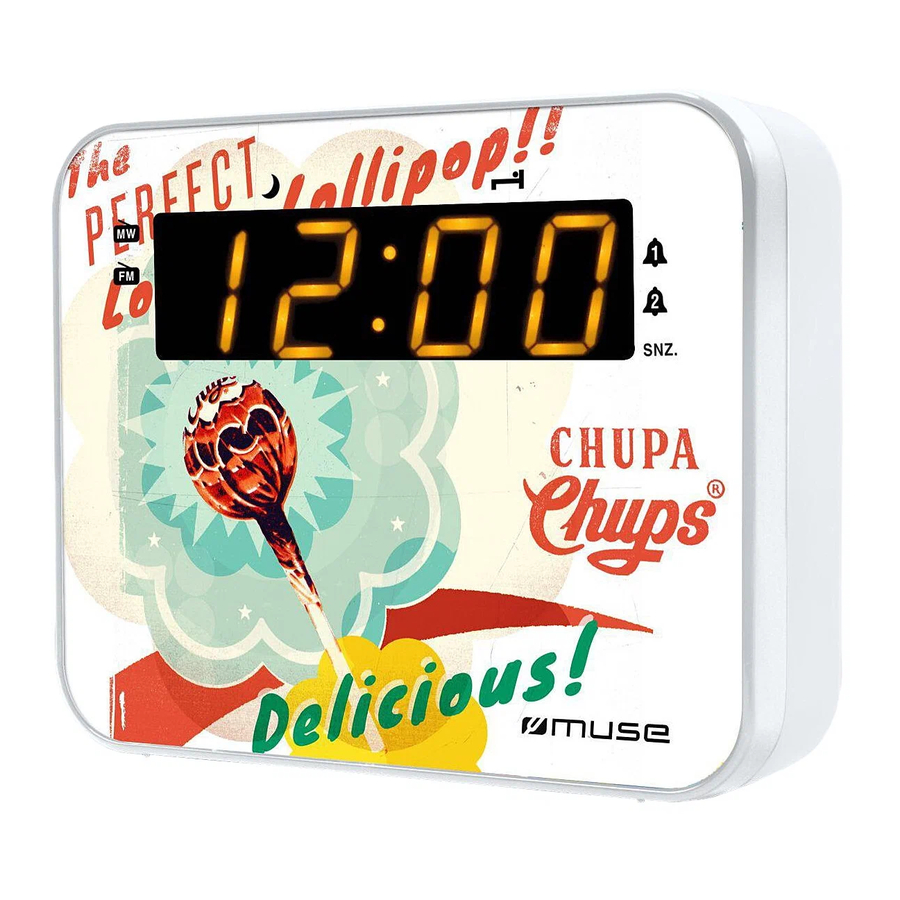

Muse M-165 CC - Dual Alarm Clock Radio PLL Manual

Read the instructions carefully before operating the unit.

LOCATION AND DESCRIPTION OF CONTROLS

1. LED display
2. Standby
   band selector: FM/MW
3. alarm 2/ volume down
4. alarm 1/ volume up
5. NAP
   to fall asleep with the radio
6. Dimmer light intensity of the screen
   SNOOZE Interval alarm repetition
7. Setting the clock
   Memorisation
8. HR. Hour setting
   Setting down
9. MIN. Minute setting
   Setting up
10. auto scan and preset radio stations
11. Speaker
12. Battery compartment
13. AC power cord and FM antenna

POWER SUPPLY

AC: 230V ~ 50Hz (CE)
DC: 2x1.5V, battery type AAA/R03/UM4 (not included) for back up.

For optimal performance, Alkaline batteries are recommended. These batteries must be replaced every six months.

1. Insert the plug of power cord into a standard wall outlet.
2. Install the backup batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. Do not attempt to recharge the batteries, they can catch fire or explode.

Backup System: All settings are memorized, however, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash to indicate this power failure and the necessity to redo your settings.

TURN ON/OFF THE UNIT

In standby mode, press button once to turn on the unit. Long press this button again to turn off the unit.

SETTING THE TIME

1. In standby mode, press and hold button, the display will flash. Set the time with HR. hour and/or MIN. minutes.
2. Press again to confirm.

NOTE: If during the adjustment time no key is activated in 9 seconds, the current display will be automatically stored.

LISTENING TO RADIO

Band selection

When the unit on, repeatedly press button to select FM or MW band.

Manual Search

1. Press / once to turn on the radio.
2. Press / button again to select your desired band.
3. Adjust the volume by or to the desired level.
4. Choose your radio station with or .

To enhance radio reception ability:

FM: Extend the FM antenna.
MW: Rotate the unit horizontally for optimum reception.

Automatic search

Press and hold for few seconds or , the automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .

NOTE: During the search operation, the sound level is automatically muted.

Preset stations

This unit can store 10 FM and 10 MW stations.

Manual storage

1. Repeatedly press button to select FM or MW band.
2. Select a radio station manually or in automatic search.
3. Press . "P 01" blinks on the screen.
4. Press or to select a channel.
5. Press to save it.
6. Repeat steps 1-5 to store other stations.

Automatic storage

In FM mode, press and hold for few seconds and the unit will automatically save the first 10 FM stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Note: same procedure applies for MW automatic storage when in MW mode.

Listening to station presets

Press button to select FM or MW band. Then press and repeat the operation as many times as necessary to select your station.

Press or to adjust the sound level.

SETTING THE ALARM AND THE ALARM MODE

1. In standby mode, press and hold for a few seconds the display blinks.
2. Press HR. and / or MIN. to set the time of wake up.
3. Press then press or to select the source of wake up buzzer, or radio.
4. Press to confirm, the alarm 1 indicator lights up.

Note:

• Same procedure applies for alarm 2 with button.
• If you wake up with the radio, select your desired station, then long press button to turn off the radio before the alarm time reaches. For the station selecting, please refer to "LISTENING TO RADIO".
• The previous level of listening is stored, the volume of the alarm will be identical. If you wake up with the radio, do not forget to check the volume level. Press and or then press again .
• If you use the sleep mode with low sound level, you should use the buzzer to wake you up.

Stopping the alarm

1. Alarm repetition
   Press SNOOZE. The alarm stops and will sound again 9 minutes later.
2. Alarm stop
   Press or . The alarm1 will sound again the next day at the same time.
3. Alarm Cancellation
   In Standby mode, press to cancel the alarm1 permanently. The alarm1 indicator lights off.

Note: Same procedure applies for Alarm2 with button.

SLEEP FUNCTION

To fall asleep with the radio, Press then to select 120-90-60-30-1510 or 5 minutes of listening. Indicator lights up. The unit will automatically turn off after the specified time. To cancel the sleep function, repeatedly press button until "OFF" display or Long press button until indicator lights off.

NAP FUNCTION

This function wakes you up after a short period of time. Only the buzzer may be selected.

1. In standby mode, press to select 120-90-60-30-15-10 or 5 minutes for your nap. The indicator lights nap.
2. To stop the alarm, press or .
3. To cancel the function, press repeatedly until OFF is displayed.

DIMMER

Press to select the brightness of the screen: high, low, or off.

TECHNICAL SPECIFICATIONS

POWER SUPPLY

AC: 230V ~ 50Hz, 4W

DC: 3V 2x1.5V, Battery type AAA/R03/UM4 (not included) for back up.

RADIO: FM: 87.5-108 MHz
MW: 522-1620kHZ

Dimensions: 130 (L) X 37 (W) X 105 (H) mm
