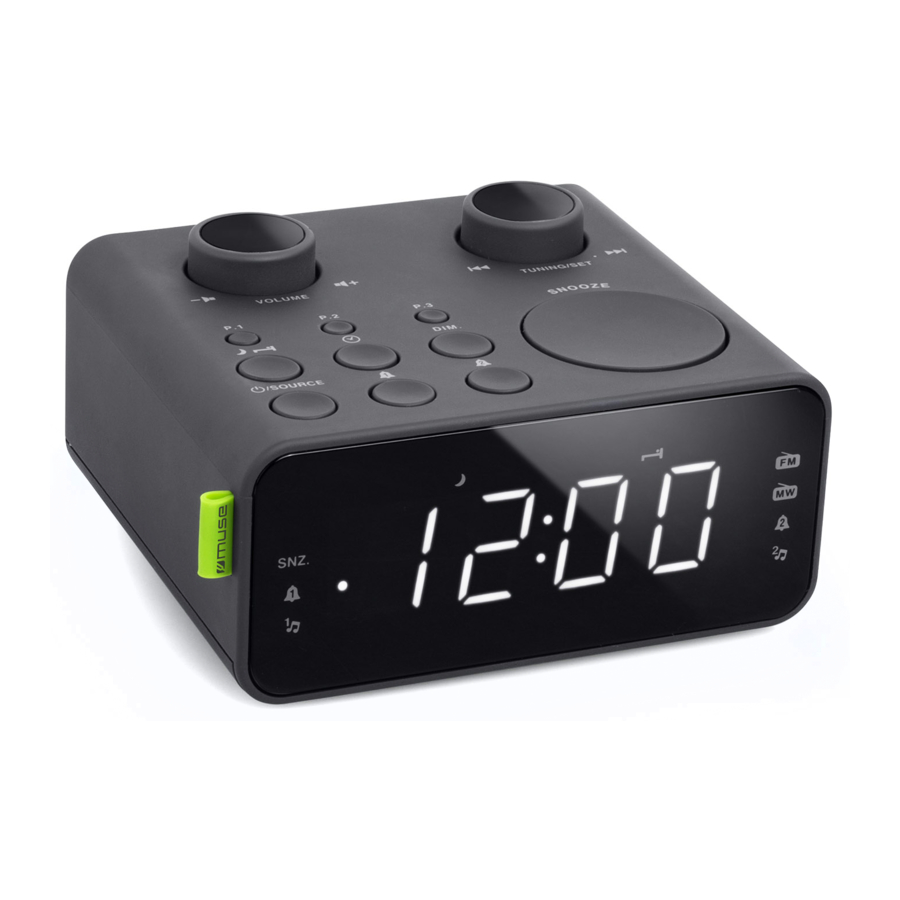

LOCATION AND DESCRIPTION OF CONTROLS

1. LED Display
2. P.1 button
   (To preset channel 1 station)
3. Volume control
4. P.2 button
   (To preset channel 2 station)
5. P.3 button
   (To preset channel 3 station)
6. Tuning / Set knob
7. / SOURCE: To turn unit on/off. To select function mode: FM, MW, AUX
8. Nap
   To fall asleep with the radio
9. Alarm 1 button
10. Setting the clock
11. Alarm 2 button
12. DIM: Dimmer light intensity of the screen
13. SNOOZE: Interval alarm repetition
14. AUX IN jack (3.5mm)
15. Speaker
16. AC power cord
17. FM wire antenna
18. Battery compartment

POWER SUPPLY

AC: 230V 50Hz (CE)
DC: 2x1.5V, battery type AAA/R03/UM4 (not provided) for back-up
For optimal performance, alkaline batteries are recommended. These batteries must be replaced every six months.

1. Insert the plug of power cord into a standard wall outlet.
2. Install the batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. In order to avoid leakage, remove the batteries when unit will not be used for a long period of time. Do not mix different types of batteries or old batteries with new ones.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

BACKUP SYSTEM:
All settings are memorized, however, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash to indicate this power failure and the necessity to redo your settings.

TURNING UNIT ON/OFF

In standby mode, press once to turn on the unit.
Press and hold for 2 seconds to turn off the unit.

SELECTING FUNCTION

When the unit is ON, press SOURCE button repeatedly to select the desired function in cycle: FM, MW, AUX.

LISTENING TO THE RADIO

When the unit is ON, press SOURCE button repeatedly to select FM or MW mode. The display will show current frequency for a few seconds and change to clock time.

Manual search

1. Use the TUNING control to select the desired station.
2. Adjust the volume to desired level.
3. To stop listening to the radio, press and hold for 2 seconds to turn off the unit.

To enhance radio reception ability:
FM: Extend the antenna.
MW: Rotate the unit horizontally for optimum reception.

Preset stations

This unit can store 3 FM and 3 MW stations.

Manual storage

1. Use the TUNING control to select the desired station.
2. Press and hold P.1 button until you hear a beep sound from the unit. "P 01" appears on display for a few seconds. The station is saved as preset channel 1.

* Same procedure applies for P.2 and P.3 buttons to store other stations.

Listen to station presets

Short press P.1, P.2 or P.3 respectively to select your preset station.

Automatic Tuning

In FM or MW mode, fast rotate TUNING knob clockwise or anticlockwise. The radio will automatically search a station upward or downward and stop at a strong station.

SETTING THE TIME

1. In standby mode, press and hold button to enter time setting mode and the hour digits flash.
2. Rotate SET knob to adjust the hour value. Press to confirm and minute digits flash.
3. Rotate SET knob to adjust the minute value and press again to confirm.

NOTE:

• If during the adjustment time no key is activated in 5 seconds, the current display will be automatically stored.

SETTING THE ALARM AND THE ALARM MODE

1. In standby mode, press button repeatedly to select the source of wake up: Buzzer or Radio. The Alarm 1 LED display and the corresponding alarm indicator light up.
2. Press and hold for a few seconds. The hour digits flash.
3. Rotate SET knob to adjust the hour value. Press to confirm and minute digits flash.
4. Rotate SET knob to adjust the minute value and press again to confirm.

* Same procedure applies for Alarm 2 with button.

Note:

• If you wake up with the radio, select your desired station, then press and hold button to turn off the radio before the alarm time reaches. For the station selecting, please refer to "LISTENING TO RADIO".
• The corresponding alarm indicator blinks when the alarm function is activated.
• The previous level of listening is stored, the volume of the alarm will be identical. If you wake up with the radio, do not forget to check the volume level.

STOPPING THE ALARM

1-Alarm repetition
Press SNOOZE. The alarm stops and will sound again 9 minutes later.
The snooze indicator lights up during the snooze time.

2-Alarm stop
Press or . The alarm will sound again the next day at the same time.

3-Alarm Cancellation
In standby mode, press repeatedly until the or indicator lights off.
* Same procedure applies for Alarm 2 with button.

SLEEP FUNCTION

In sleep mode, the unit will turn off automatically after a specified time.
You can select duration in minutes before the unit turns off automatically.

1. When the unit is on, press to select 120-90-60-45-30-15 or 5 minutes of listening. The indicator lights up. The unit will automatically turn off after the specified time.
2. To cancel the sleep function, repeatedly press button until "OFF" is displayed.

Note:

1. Sleep time can only be set when the unit is turned ON.
2. Press button to check the remaining sleep time.

NAP FUNCTION

This function wakes you up after a short period of time. Only the buzzer may be selected.

1. In standby mode, press to select 120-90-60-45-30-15 or 5 minutes for your nap. The indicator lights up.
2. To stop the alarm, press or .
3. To cancel the function, press repeatedly until "OFF" is displayed.

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the back of unit (cable not included).
2. When the unit is on, press SOURCE button on unit repeatedly to select AUX mode. The display will show " " for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

DIMMER

Press DIM to select the brightness of the screen: hign, low or off.

TECHNICAL SPECIFICATIONS

POWER SUPPLY:
AC 230V 50Hz, 4W consumption
DC 2x1.5V, battery type AAA/R03/UM-4 (not provided) for back-up

RADIO:
FM 87.5-108MHz
MW 522-1620kHz

Note: Design and specification are subject to change without notice.
