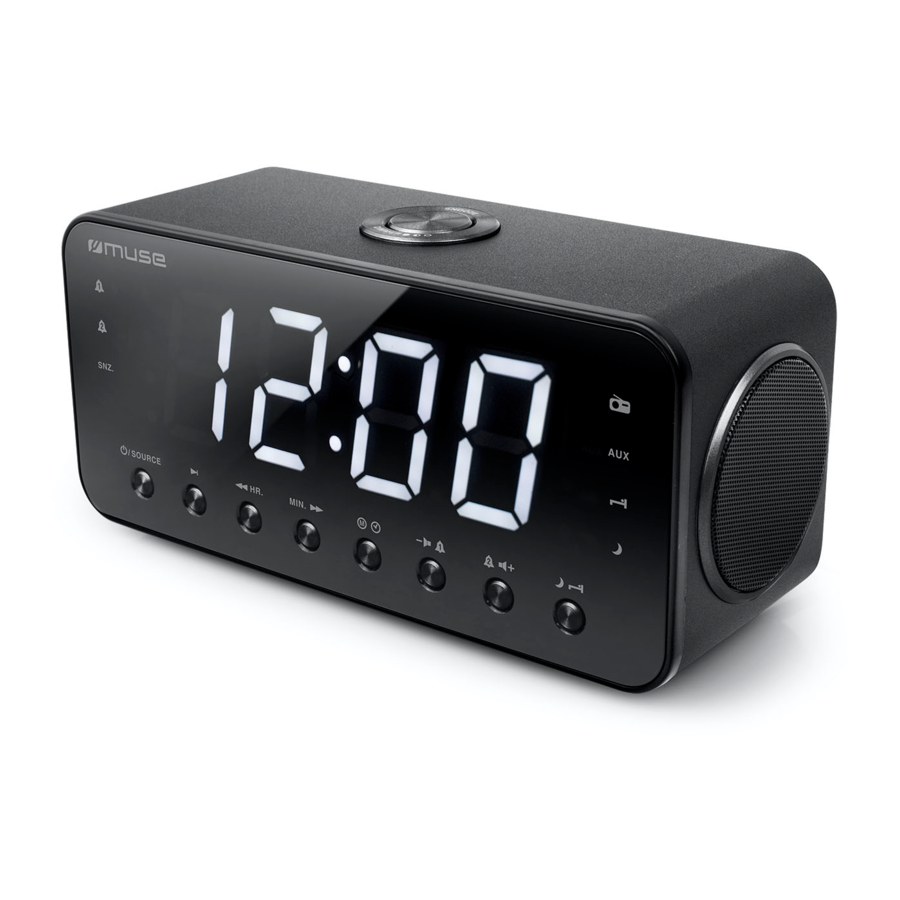

Muse M-192 CR - Clock Radio PLL With Jumbo Display Manual

LOCATION AND DESCRIPTION OF CONTROLS

Read the instructions carefully before operating the unit.

1. LED display
2. alarm 1 indicator
3. alarm 2 indicator
4. SNZ. Snooze indicator
5. FM indicator
6. AUX indicator
7. Sleep indicator
8. Nap indicator
9. : To turn unit on-off
   SOURCE: To select FM or AUX mode.
10. auto search and preset radio stations
11. Setting down
    HR: Hour setting
12. MIN: Minute setting
    : Setting up
13. Memorization
    Setting the clock

14. volume down
    : alarm 1
15. : alarm 2
    volume up
16. NAP
    : To fall asleep with the radio
17. Speakers
18. SNOOZE: Interval alarm repetition
    DIMMER: Dimmer light intensity of the screen
19. Battery compartment
20. AUX IN jack (3.5mm)
21. USB CHARGING: USB port for charging
22. AC power cord

POWER SUPPLY

AC: 100-240V 50/60Hz
DC: 2x1.5V, battery type AAA/R03/UM4 (not included) for back up.
For optimal performance, Alkaline batteries are recommended. These batteries must be replaced every six months.

1. Insert the plug of power cord into a standard wall outlet.
2. Install the backup batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. Do not attempt to recharge the batteries, they can catch fire or explode.

In order to avoid leakage, always remove the batteries when unit will not be used for a long period of time. Do not mix different types of batteries or old batteries with new ones.

Backup System: All settings are memorized, however, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash to indicate this power failure and the necessity to redo your settings.

TURNING ON/OFF THE UNIT

In standby mode, press once to turn on the unit. Press and hold for 2 seconds to turn off the unit.

SETTING THE TIME

1. In standby mode, press and hold button, the display will flash. Set the time with HR. hour and/ or MIN. minutes.
2. Press again to confirm.

NOTE: If during the adjustment time no key is activated in 9 seconds, the current display will be automatically stored.

LISTENING TO FM RADIO

Manual search

1. When the unit is on, Press SOURCE to select FM mode, indicator lights up.
2. Choose your radio station with or .
3. Adjust the volume by or to the desired level.
4. For best reception, extend the FM wire antenna.
5. To stop listening to the radio, press and hold SOURCE to turn the unit off.

Automatic search
Press and hold for few seconds or , the automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .
NOTE: During the search operation, the sound level is automatically muted.

Preset stations
This unit can store 20 FM stations.

Manual storage

Automatic storage
In FM mode, press and hold for few seconds and the unit will automatically save the first 20 FM stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Listening to station presets
Press and repeat the operation as many times as necessary to select your station.
Press or to adjust the sound level.

SETTING THE ALARM AND THE ALARM MODE

Note:

STOPPING THE ALARM

1. Alarm repetition
   Press SNOOZE. The alarm stops and will sound again 9 minutes later, the snooze indicator blinks during snooze time.
2. Alarm stop
   Press or . The alarm1 will sound again the next day at the same time.
3. Alarm Cancellation
   In Standby mode, press to cancel the alarm1 permanently. The alarm1 indicator lights off.
   Note: Same procedure applies for Alarm2 with button.

SLEEP FUNCTION

In radio mode, press to select 120-90-60-30-15-10 or 5 minutes of listening. The indicator lights up. The unit will automatically turn off after the specified time. To cancel the sleep function, repeatedly press button until "OFF" is displayed, or Long press button until turn off the unit.

NAP FUNCTION

This function wakes you up after a short period of time. Only the buzzer may be selected.

DIMMER

Press DIMMER to select the brightness of the screen: high, low, or off.

CONNECTING AUXILIARY SOURCE

USB CHARGING

This unit is equipped with a built-in USB charging port (Output: 5V 1A ) for recharging your mobile device (e.g. Smartphone, tablet, etc. ) Simply plug the USB charging cable (not included) into the USB charging port and connect it to your mobile device.

TECHNICAL SPECIFICATIONS

POWER SUPPLY: AC: 100-240V 50/60Hz, 13W
DC: 3V 2x1.5V, Battery type, AAA/R03/UM4 (not included) for back up.
RADIO: FM: 87.5-108 MHz
Dimensions: 226 (L) X 86 (W) X 108 (H) mm

MORE INFORMATION

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.
The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside
The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the

The caution mark is located at the back of the device.

• The Marking plate is located at the back of the device
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, table cloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Use the apparatus only in moderate climates.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• The power plug is used as a disconnect device and must be easily accessible. To be completely disconnected from the power, the plug of the appliance should be disconnected completely. The socket must not be obstructed and should be easily accessible during intended use.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
