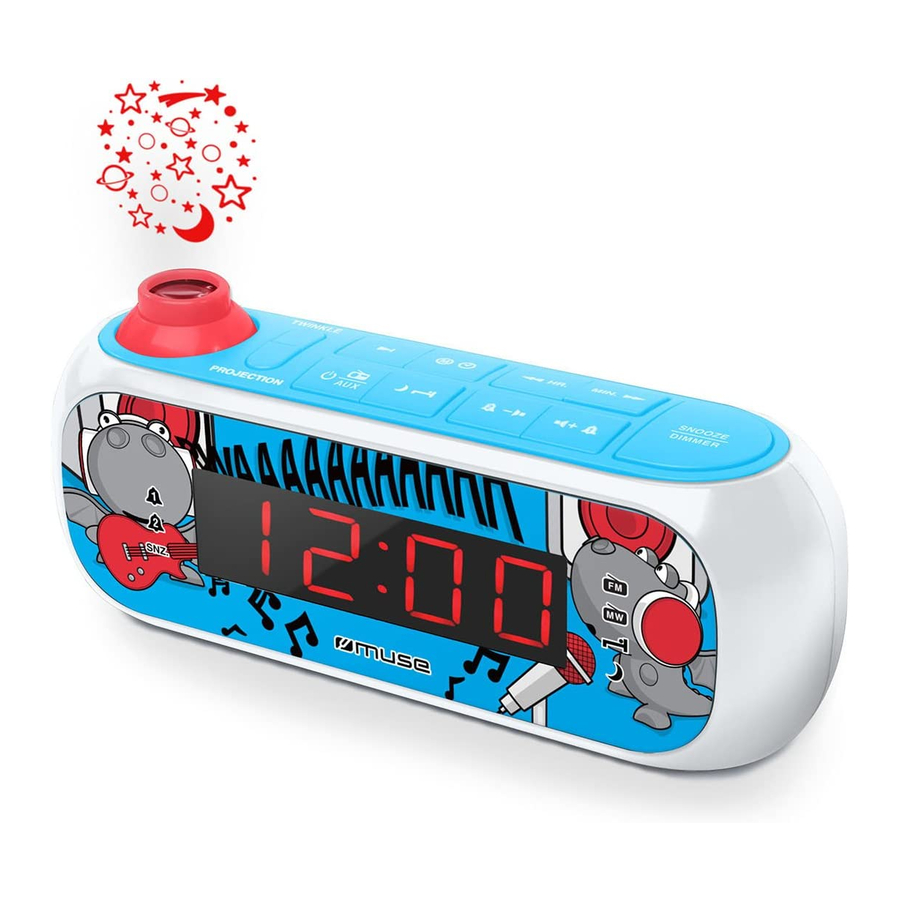

Muse M-167 KDG, M-167 KDB - Projection Clock Radio Manual

LOCATION AND DESCRIPTION OF CONTROLS

Read the instructions carefully before operating the unit.

1. LED display
2. Projector
3. FM wire antenna
4. Speaker
5. AC power cord
6. LINE IN jack
7. TWINKLE: To activate or deactivate the stars twinkling
8. Auto scan and preset radio stations
9. Setting the clock
   Memorization
10. HR. Hour setting
    Setting down
11. MIN. Minute setting
    Setting up
12. PROJECTION: Projector on/off
13. To turn unit on/off
    AUX : To select FM, MW or AUX mode
14. Nap
    To fall asleep with the radio
15. Volume down
    Alarm 2
16. Volume up
    Alarm 1
17. DIMMER: Dimmer light intensity of the screen
    SNOOZE: Interval alarm repetition
18. Battery compartment

POWER SUPPLY

AC: 230V 50 Hz (CE)

DC: 2x1.5V, battery type AAA/R03/UM4 (not provided) for back-up.

For optimal performance, alkaline batteries are recommended. These batteries must be replaced every six months.

1. Insert the plug of power cord into a standard wall outlet.
2. Install the batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. Do not attempt to recharge the batteries, they can catch fire or explode. The batteries need to be replaced when: The volume decreases, or sound is distorted during operation.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

BACKUP SYSTEM:
All settings are memorized, however, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash to indicate this power failure and the necessity to redo your settings.

SETTING THE TIME

1. In standby mode, press and hold button, the display will flash, set the time with HR. hour and/or MIN. minutes.
2. Press again to confirm.

NOTE:

• If during the adjustment time no key is activated in 5 seconds, the current display will be automatically stored.

TURNING UNIT ON/OFF

In standby mode, press once to turn on the unit. Press and hold for 2 seconds to turn off the unit.

LISTENING TO THE RADIO

Selecting band

When the unit is ON, press repeatedly to select FM or MW mode. The corresponding indicator lights up.

Manual search

1. Choose your radio station with or . .
2. Adjust the volume by or to the desired level.
3. To stop listening to the radio, press and hold for 2 seconds to turn off the unit.

Automatic search

Press and hold for few seconds or . The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or .
NOTE:
During the search operation, the sound level is automatically muted.

To enhance radio reception ability:
FM: Extend the antenna.
MW: Rotate the unit horizontally for optimum reception.

Preset stations

This unit can store 10 FM and 10 MW stations.

Manual storage

1. Select a radio station manually or in automatic search.
2. Press . "P 01" blinks on the screen.
3. Press or to select a channel.
4. Press to save it.
5. Repeat steps 1-4 to store other stations.

Automatic storage

Press and hold for few seconds and the unit will automatically save the first 10 FM stations or 10 MW stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Listen to station presets

Press and repeat the operation as many times as necessary to select your station.
Press or to adjust sound level.

SETTING THE ALARM AND THE ALARM MODE

1. In standby mode, press and hold for a few seconds, the display blinks.
2. Press or to select the source of wake up: FM (FM frequency and indicator blinking), MW (MW frequency and indicator blinking) or Buzzer .
3. Press then press HR. and/or MIN. to set the time of wake up.
4. Press to confirm, the alarm indicator lights up.

Note: Same procedure applies for Alarm 2 with button.

Note:

• The previous level of listening is stored, the volume of the alarm will be identical. If you wake up with the radio, do not forget to check the volume level.
  Press once to turn on the unit. Adjust the volume with or . Then press and hold for 2 seconds to turn off the unit.
• If you use the sleep mode with low sound level, you should use the buzzer to wake you up.

STOPPING THE ALARM

1. Alarm repetition
   Press SNOOZE. The alarm stops and will sound again 9 minutes later. The snooze indicator blinks during the snooze time.

2. Alarm stop
   Press or . The alarm will sound again the next day at the same time.

3. Alarm Cancellation
   In standby mode, press to cancel the alarm permanently. The alarm indicator lights off.
   Note: Same procedure applies for Alarm 2 with button.

SLEEP FUNCTION

To fall asleep with the radio, press repeatedly to select FM or MW mode, then press to select 120-90-60-30-1510 or 5 minutes of listening. indicator lights up. The unit will automatically turn off after the specified time. To cancel the sleep function, press or to OFF.

NAP FUNCTION

This function wakes you up after a short period of time. Only the buzzer may be selected.

1. In standby mode, press to select 120-90-60-30-15-10 or 5 minutes for your nap. The indicator lights up.
2. To stop the alarm, press or .
3. To cancel the function, press repeatedly until "OFF" is displayed.

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e. g. mp3 player) to the LINE IN jack on the right side of unit (cable not included).
2. Press AUX repeatedly to select AUX mode. "AU" appears on display.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the LINE IN jack.

DIMMER

Press DIMMER to select the brightness of the screen: high or low.

STARS PROJECTION

1. Turn on or off the projector with the PROJECTION button.
2. Project the stars image on a light/flat surface such as the ceiling.
3. Swivel the projector to position the projected image as desired.
4. Activate or deactivate the stars twinkling by pressing TWINKLE button.

TECHNICAL SPECIFICATIONS

POWER SUPPLY:
AC 230V ~ 50Hz, 4W consumption
DC 2x1.5V, battery type AAA/R03/UM-4 (not provided) for back-up

RADIO:
FM 87.5-108MHz
MW 522-1620kHz

Hereby, NEW ONE S.A.S, declares that this MUSE M-167 KDG / M-167 KDB is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com ;
