INDICATOR OVERVIEW

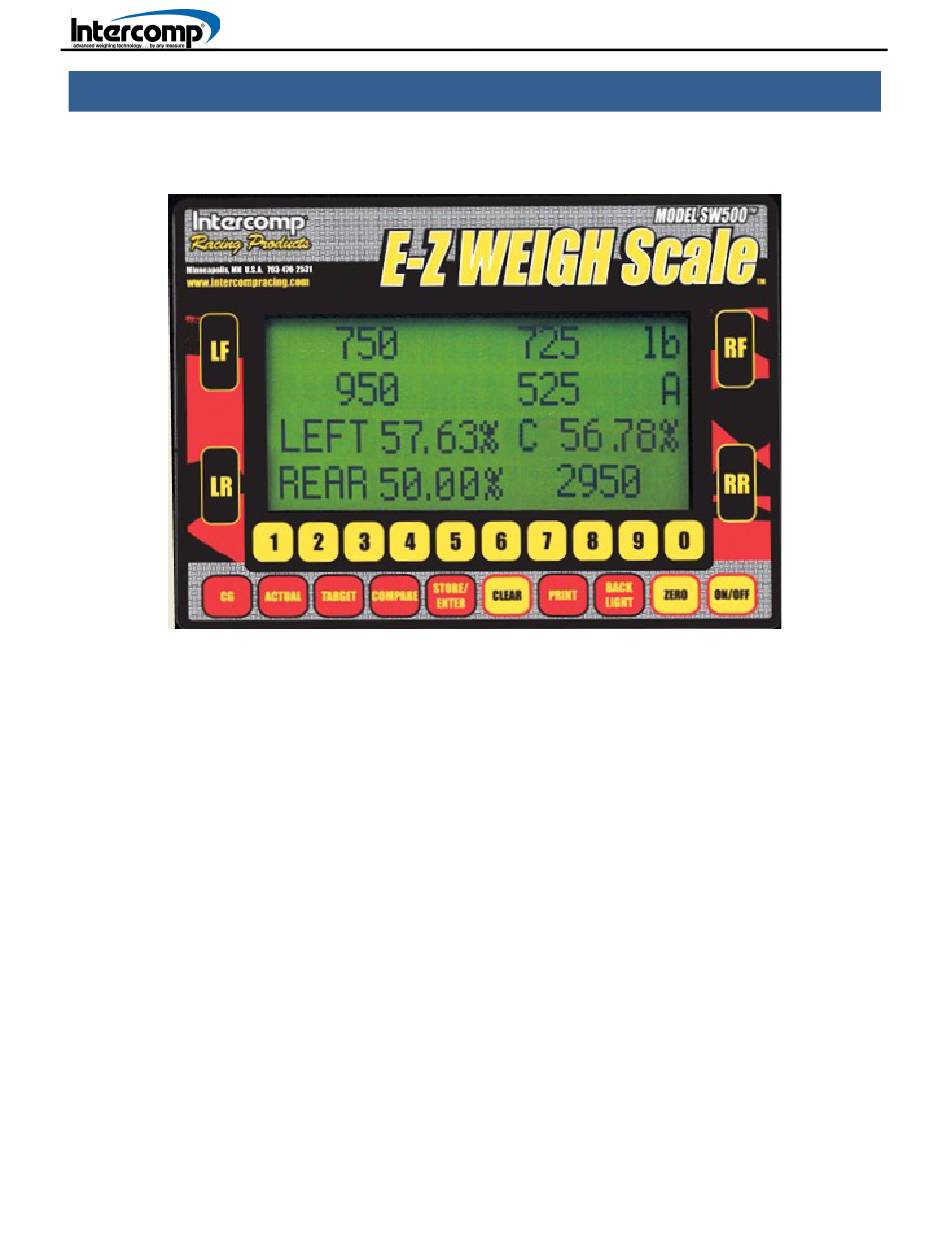

This section provides an overview on the capabilities and operation of the Model
SW500 Indicator and scale system.

INDICATOR CONTROLS

ON/OFF

Press the ON/OFF key to turn the indicator ON and OFF.

ZERO

Press the ZERO key to access the Zero Menu. Press the LF, RF, LR, or RR key to zero
an individual scale. Press the ZERO key to zero all four scales. When the scale is
turned off, the current zero will be retained. If a car is on the scales and the indicator is
turned off, the current weight will be displayed on the indicator when the scale is turned
on.
AZT (Auto Zero Tracking)
The SW RFX Indicator has a feature called Auto Zero Tracking (AZT). AZT corrects
slight zero changes during normal operation. If small weights are added while the
display is at or near zero, the indicator will zero the weights off.
