Hardware layout and configuration

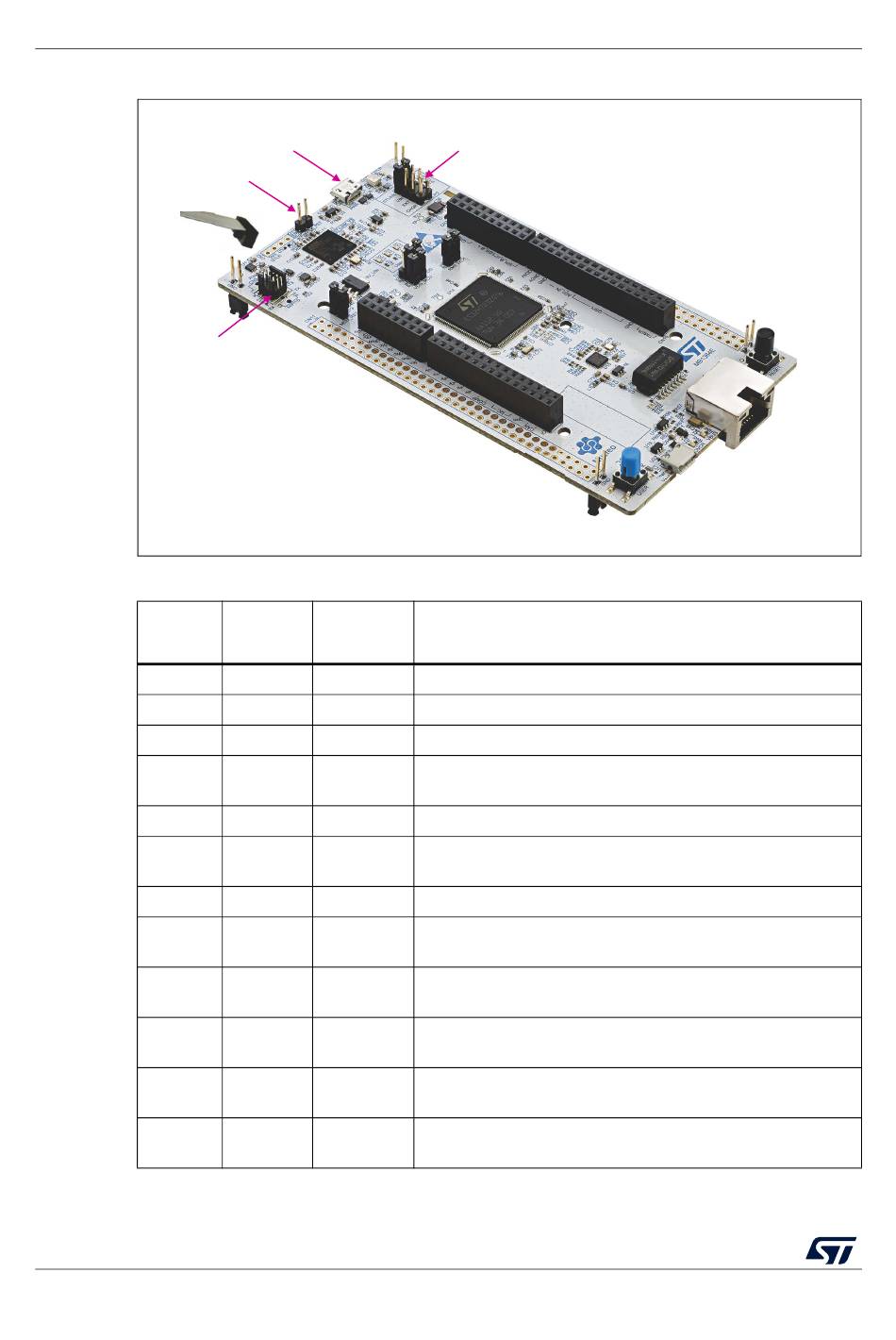

Figure 9. Connecting an external debug tool to program the on-board STM32H7

STLINK-V3E USB connector
STLK_RST (JP1)
External debug tool
MIPI-10
Pin
-
-
1
2
3
4
5
6
7
8
9
10
18/49

Table 5. MIPI-10 debug connector (CN5)

STDC14
CN5
Pin
1 NC
2 NC
3 T_VCC
4 T_SWDIO
5 GND
6 T_SWCLK
7 GND
8 T_SWO
9 T_JRCLK
10 T_JTDI
11 GNDDetect
12 T_NRST
UM2407 Rev 3
Power supply selection
Reserved
Reserved
Target VCC
Target SWDIO using SWD protocol or target JTMS (T_JTMS)
using JTAG protocol
Ground
Target SWCLK using SWD protocol or target JCLK (T_JCLK)
using JTAG protocol
Ground
Target SWO using SWD protocol or target JTDO (T_JTMS)
using JTAG protocol
Not used by SWD protocol, target JRCLK (T_JRCLK) using
JTAG protocol, only for specific use
Not used by SWD protocol, target JTDI (T_JTDI) using JTAG
protocol, only for external tools
GND detection signal for plug indicator, used on SWD and
JTAG neither
Target NRST using SWD protocol or target JTMS (T_JTMS)
using JTAG protocol
Designation
UM2407
MSv61202V3
