37xx = 374E for STLINK-V3E without bridges functions
374F for STLINK-V3E with bridges functions
6.3.2
STLINK-V3E firmware upgrade
The STLINK-V3E embeds a firmware upgrade mechanism for an in-place upgrade through
the USB port. As the firmware might evolve during the lifetime of the STLINK-V3E product
(for example new functionalities, bug fixes, and support for new microcontroller families), ST
recommends keeping the STLINK-V3E firmware up to date before starting to use the
STM32H7 Nucleo-144 board. The latest version of this firmware is available from the
www.st.com
6.3.3
Using an external debug tool to program and debug the on-boards
STM32H7
There are two basic ways to support an external debug tool:
1.
Keep the embedded STLINK-V3E running.
Power on the STLINK-V3E at first until the COM LED lights RED. Then connect your
external debug tool through the MIPI-10 debug connector (CN5).
2.
Set the embedded STLINK-V3E in the high-impedance state:
When the STLK_RST jumper (JP1) is ON, the embedded STLINK-V3E is in the
RESET state, and all GPIOs are in high impedance. Then it is possible to connect the
external debug tool to the debug connector (CN5).

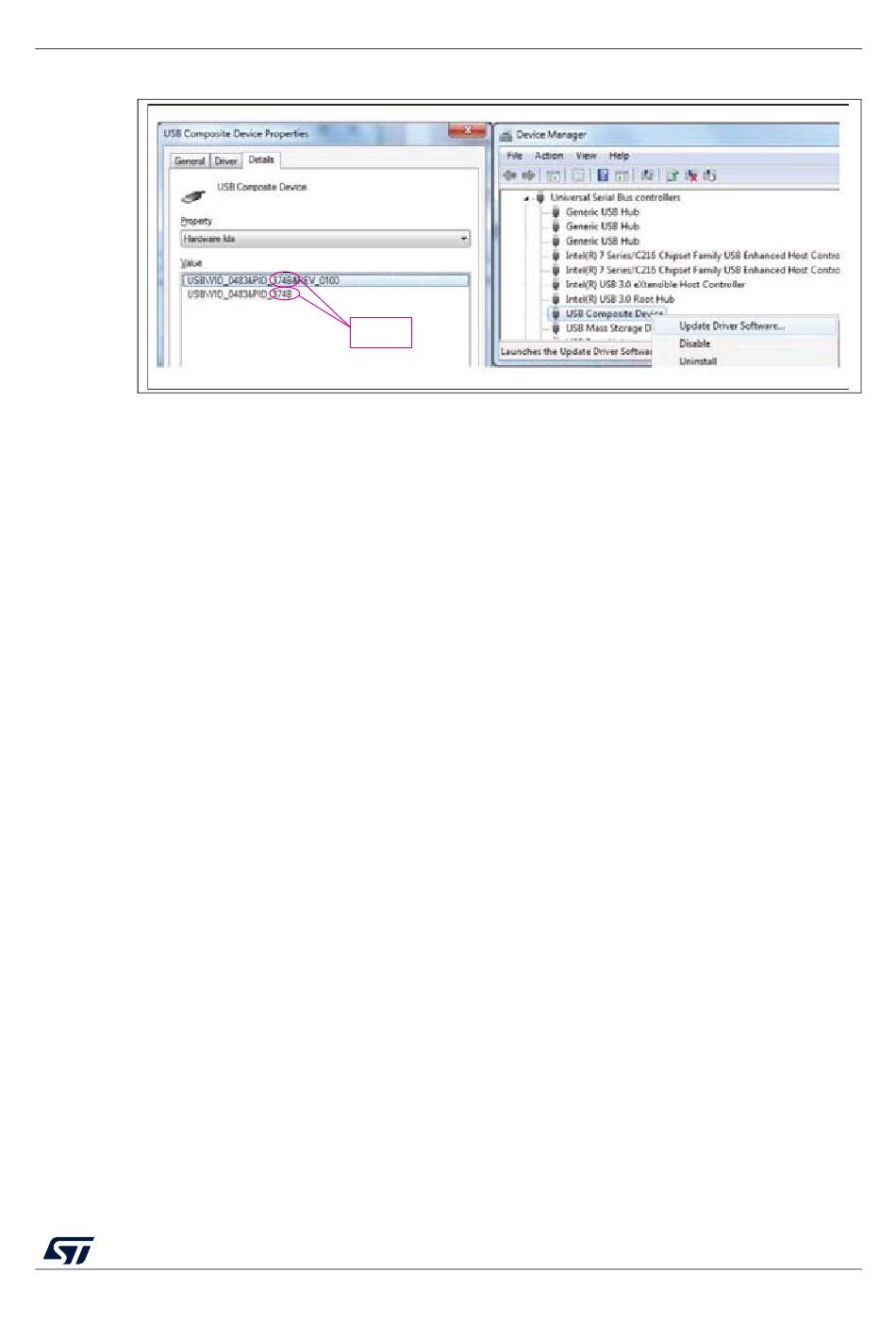

Figure 8. USB composite device
37xx
website.
UM2407 Rev 3
Hardware layout and configuration
17/49
