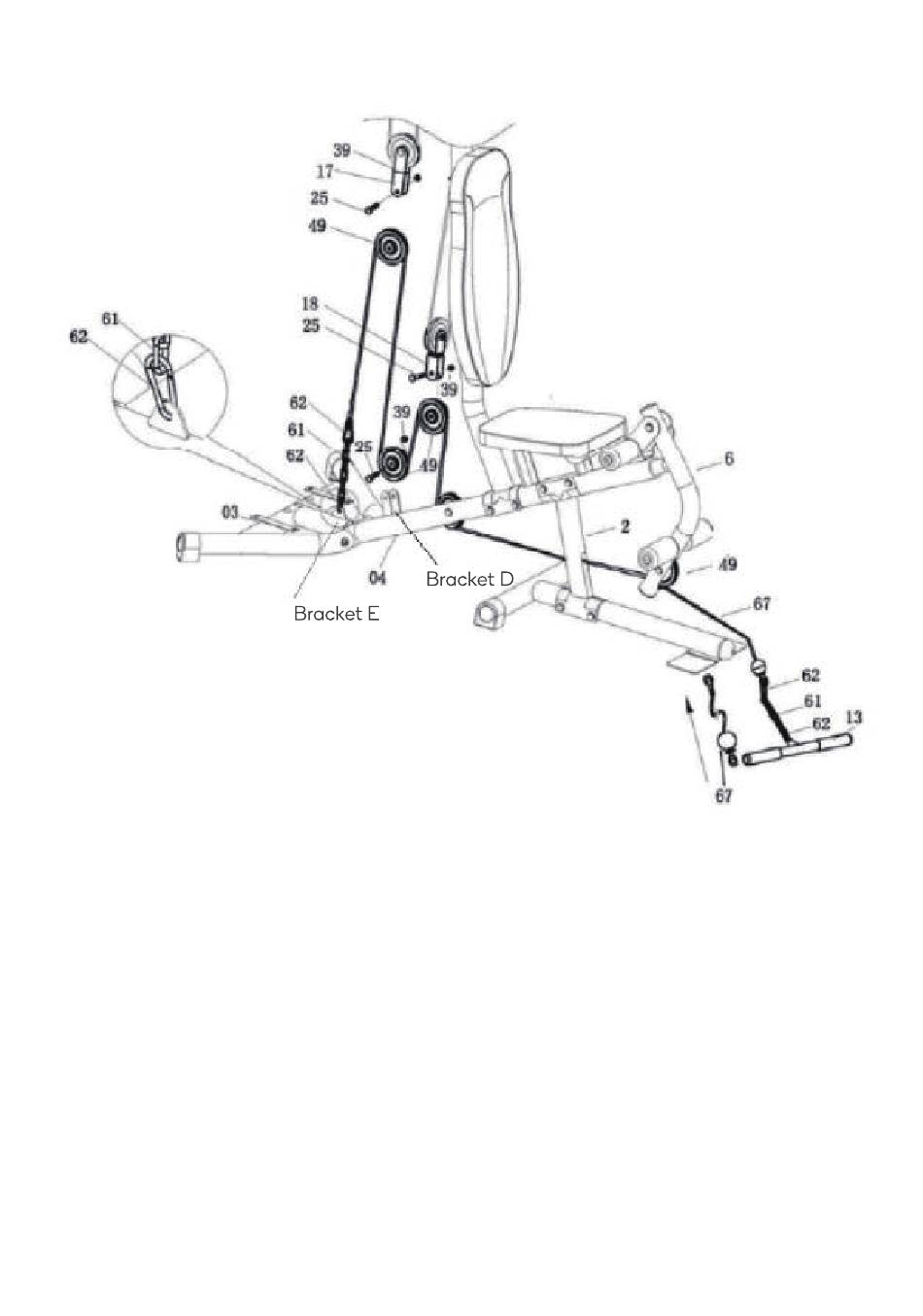

Step H:
1. Attach the end with the stopper ball of the cable for the lower pull
bar (67) to the open bracket leg curl (6), around the underside of the
pulley (49).
Feed the cable (67) through the opening on the lower part of the
seat post (02), around the pulley (49) from the underside. Draw the
cable (67) upward and around the upper side of the pulley (49).
Attach the pulley (49) to the underside of the two-way bracket(18) –
tighten using a hex head bolt (25) and a nylon nut (39).
2. Feed the cable (67) downward and around the underside of the
pulley (49). Attach the pulley (49) to bracket D on the seat post tube
(4) – tighten using a hex head bolt (25) and nylon nut (39).
