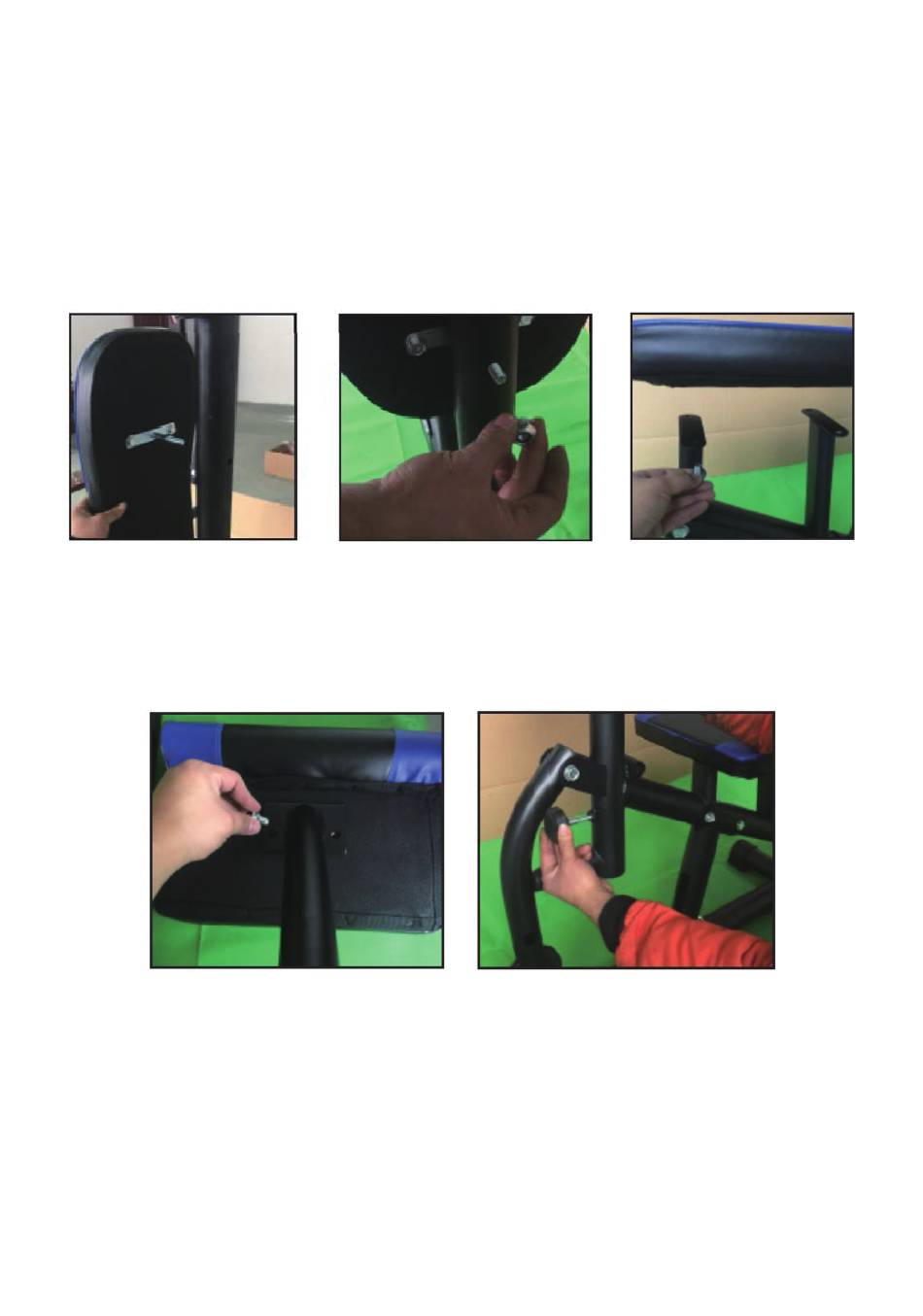

2. Attach the backrest cushion (59) to the upright support tube (05),
by putting the screw on the bracket for the backrest (15) into the
hole in the upright support tube (05) – secure using a curve washer
(34) and an M10 nylon nut (39).
3. Attach the seat (60) onto the seat support tube (04) by putting the
screw on the bracket for the seat into the holes – secure using four
flat washers (35A) and four hex head bolts (24).
4. Attach the elbow cushion (72) onto the elbow cushion support
tube (68) – tighten using two washers (35A) and two hex held bolts
(24). Attach the elbow cushion (68) into the seat support tube (04) –
secure with the knob (71).
5. Screw in the small rubber stopper (52) into the front side of the
seat support tube (04). Attach the leg curve tube (06) to the front
side of the seat support tube (04) – tighten using a hex head bolt
(29), two flat washers (36) and a nylon nut (40).
-18-
