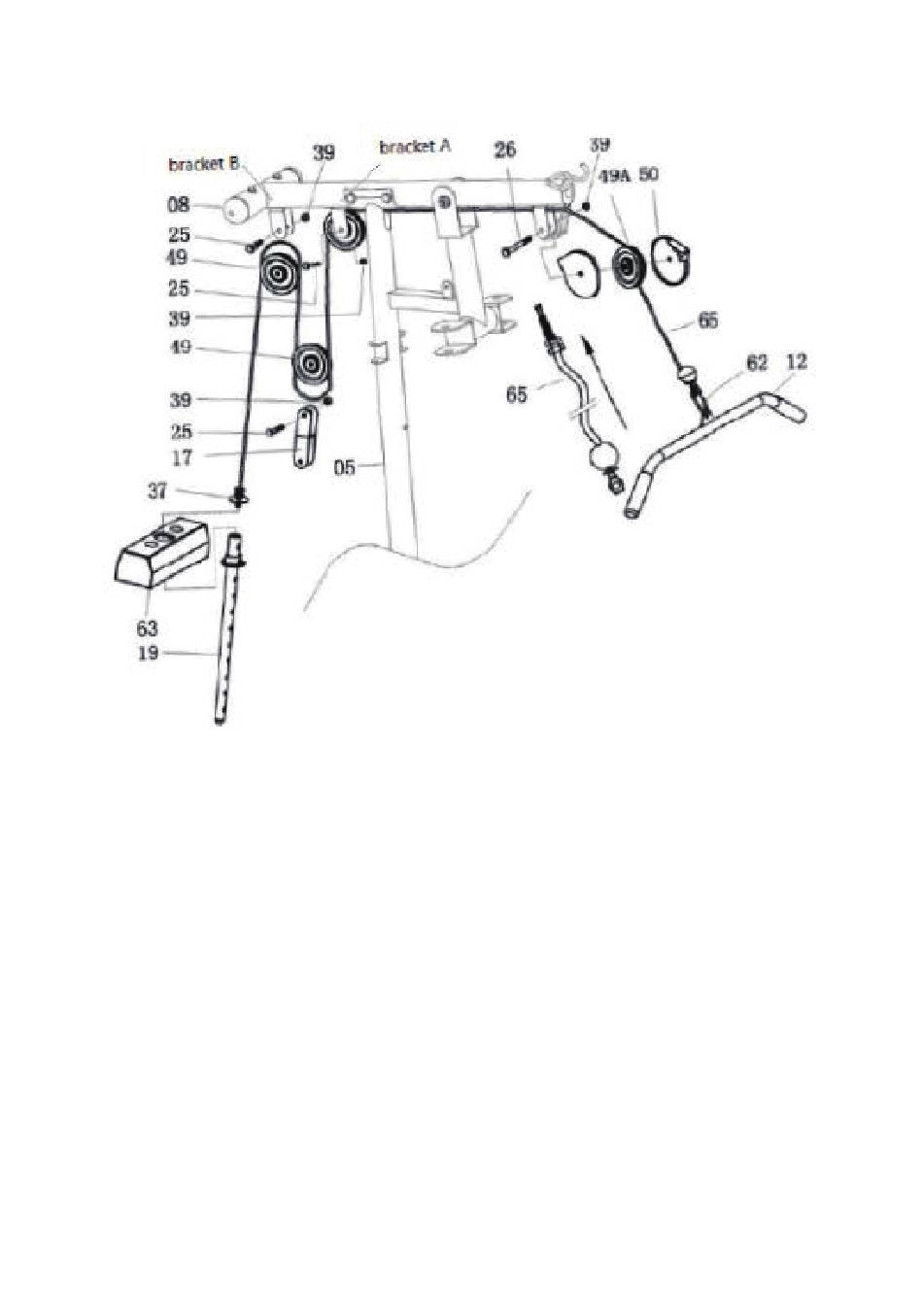

Step F:
1. Attach cable for the lat bar (65) to the opening bracket at the front
of the bridge tube (8).
Note: The ball stopper of the cable (65) should be underneath the
bridge tube (8).
Note: The cable (65) must come out of the cap (50) from the opening
sides. Tighten to the bracket using a head bolt (26) and nylon nut
(39).
2. Draw the cable (65) towards the back side of the machine through
the upper opening of upright support tube (05) and around the pulley
(49), then attach the pulley (49) onto bracket A (refer to the 'Step F'
diagram). Tighten using a hex head bolt (25) and a nylon nut (39).
