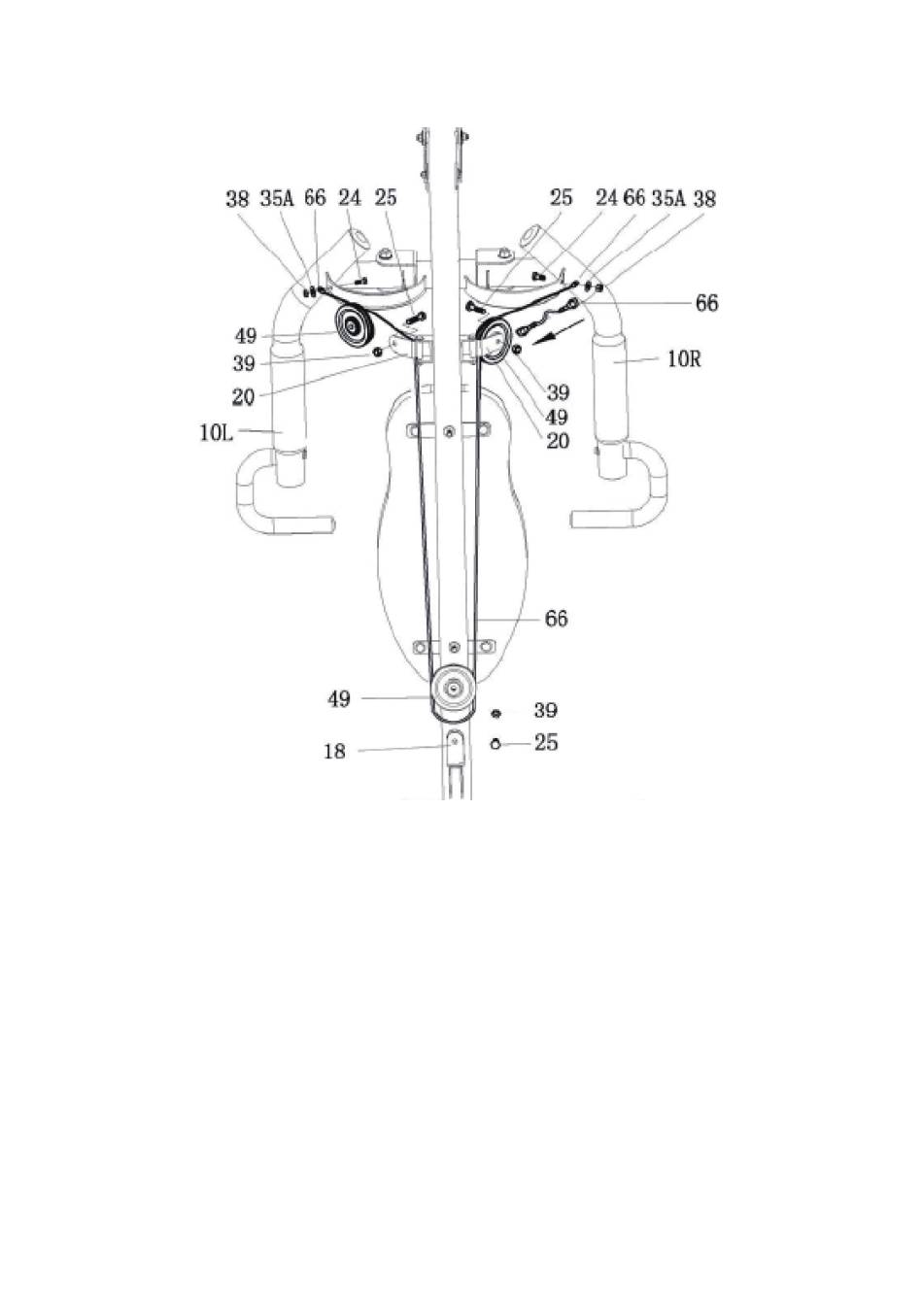

Step G:
1. Attach one end of the cable for the butterfly arm (66) to the hook
on the right butterfly arm (10R) – tighten using a hex head bolt (24),
a flat washer (35A) and a nylon nut (38).
2. Feed the cable (66) around the pulley (49), then attach the pulley
(49) to the bracket (20) on the right side of the upright support tube
(05) – tighten using a hex head bolt (25) and a nylon bolt (39).
3. Feed the other end of the cable (66) downward and around the
pulley (49). Attach the pulley (49) to the upper part of the two-way
bracket (18) – tighten using a hex head bolt (25) and a nylon nut
(39).
-25-
