2. Attach the bridge tube (08) to the upright support tube (05) –
secure using two hex head bolts (30), four flat washers (35) and two
nylon nuts (39).

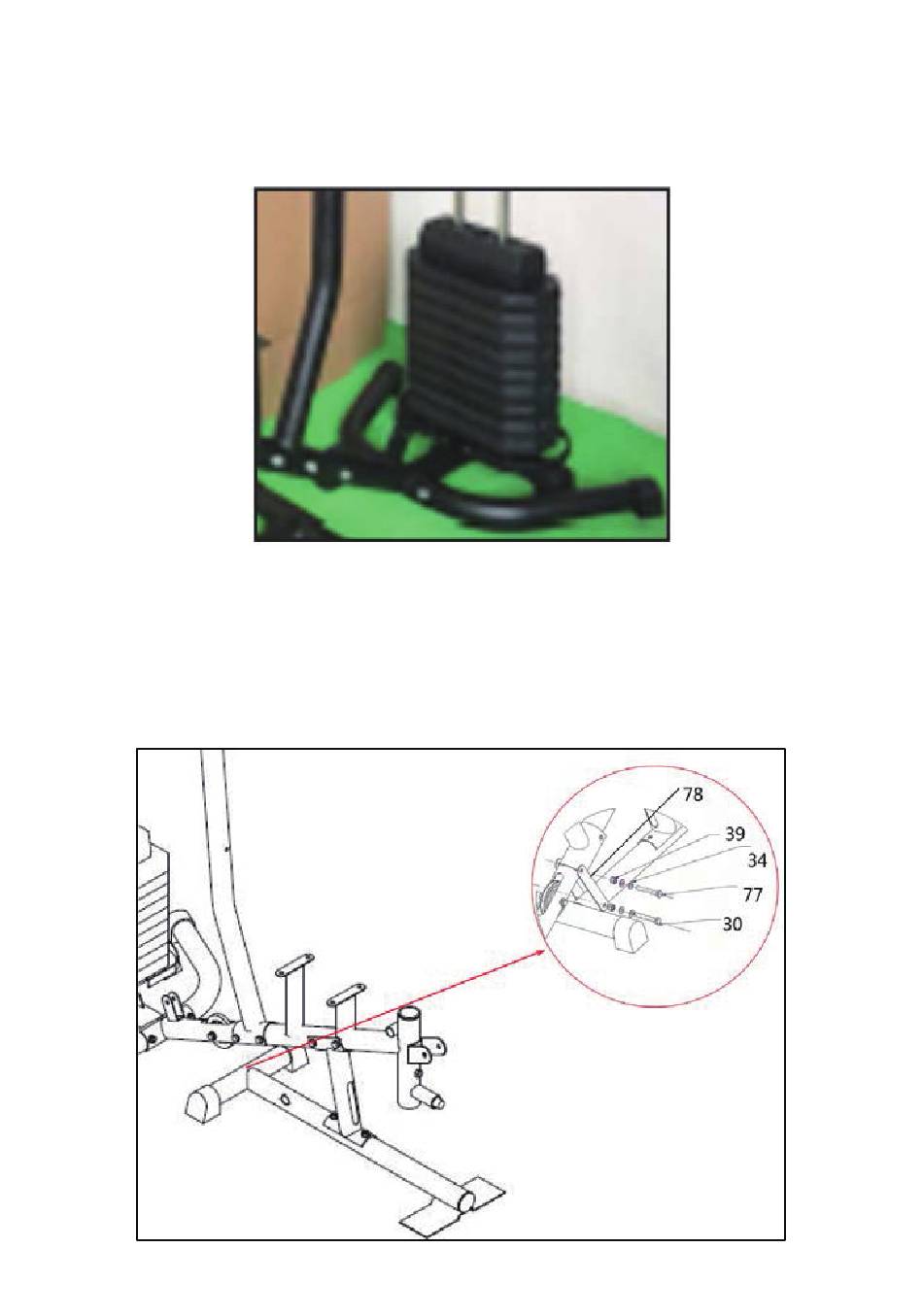

3. Attach the base frame (01) to the upright support tube (05).
Following the diagram, attach the two connection straps (78) using a
hex head bolt (30), hex head bolt (77), two flat washers (34) and two
nylon nuts (39).
-16-
