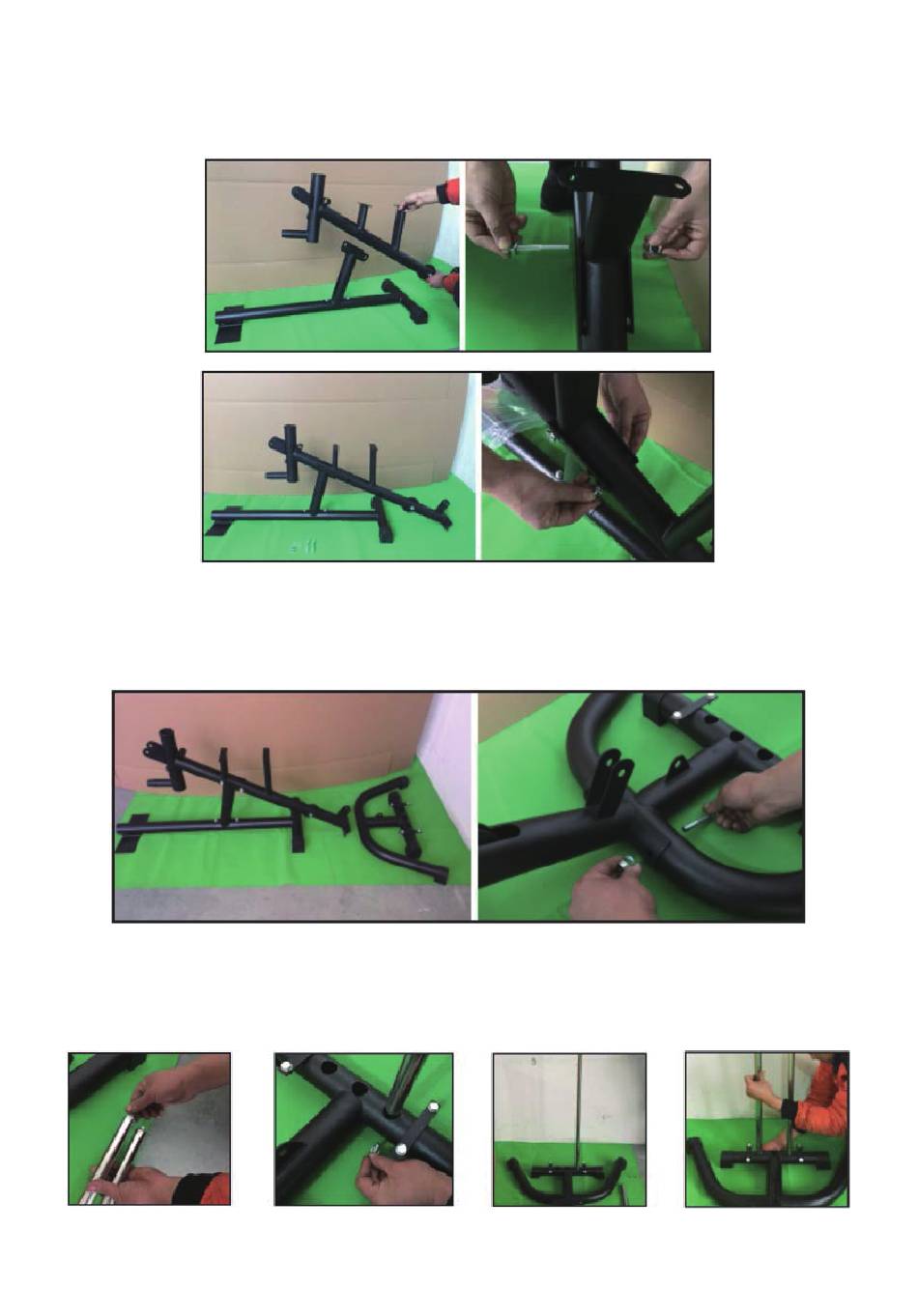

2. Attach the seat support tube (04) to the seat post (02) using two
hex head bolts (30), four flat washers (35) and two nylon nuts (39).
3. Attach the rear stabiliser (03) to the seat support tube (04) using
two hex head bolts (27), four curve washers (34) and two nylon nuts
(39).
4. Attach the guiding tube (07) to the rear stabiliser (03), then attach
the upright support tube (05) to the seat support tube (04) – tighten
using two hex head bolts (30).
-12-
