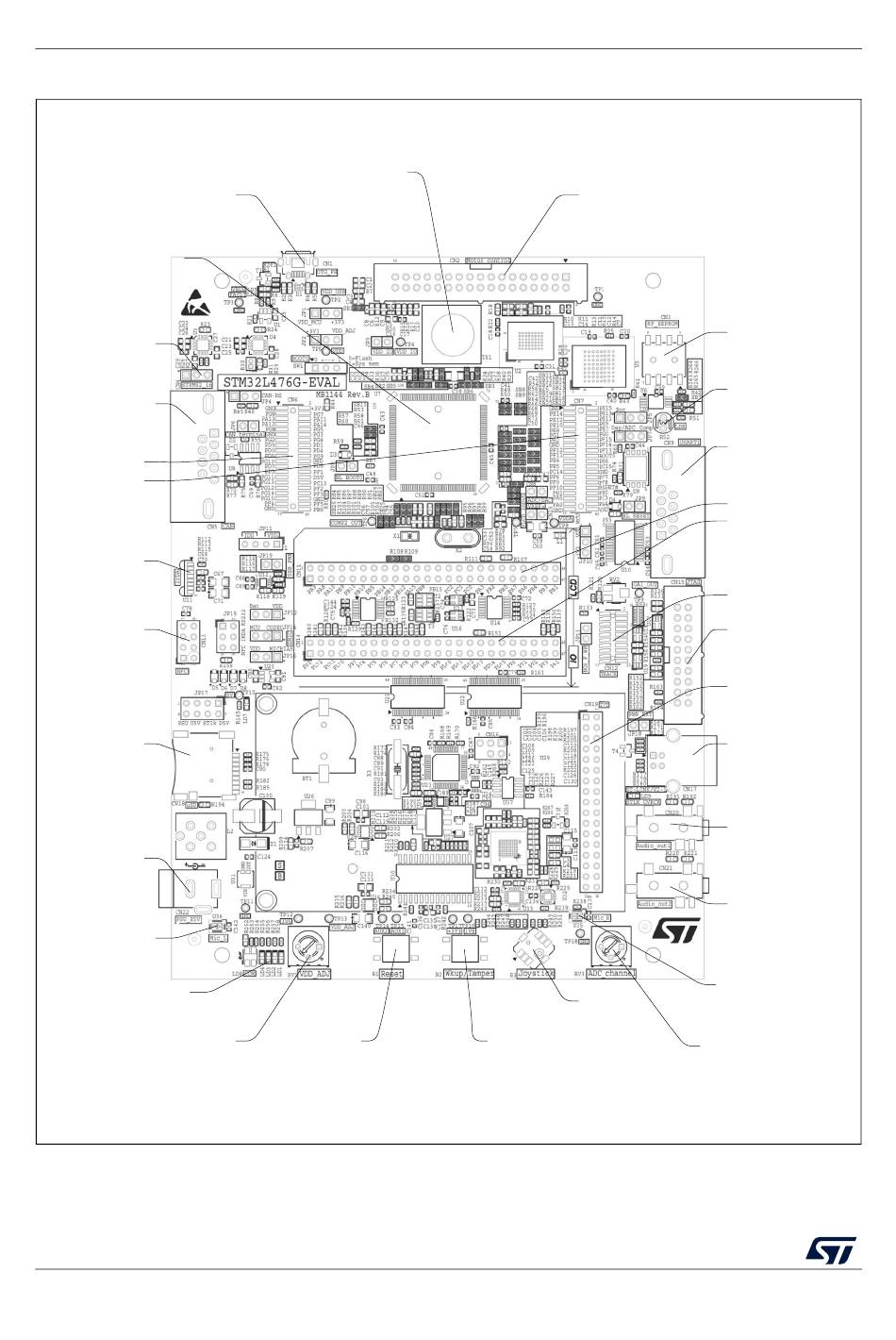

Figure 3. Stm32L476G-Eval Main Component Layout - ST STM32L476ZG User Manual

Hardware layout and configuration
CN1
USB OTG port
U7
STM32L476ZGT6
CN4
Sigma-delta in
CN5
CAN
CN6
CN7
Extension
connectors
U11
IrDA
CN13
NFC
CN18
microSD card
CN22
Power jack
U36 left
microphone
Four LEDs
RV1
VDD setting
14/80

Figure 3. STM32L476G-EVAL main component layout

TS1
Touch-sensing
button
B1
Reset button
B2
Wake-up / tamper
button
UM1855 Rev 6
CN2
Motor control
CN3
RF-EEPROM
R52
LDR
CN9
USART1
CN11
CN14
LCD glass module
daughterboard
DB979
CN12 Trace
CN15
JTAG
CN19
TFT LCD
Standard-B
USB port of
ST-LINK/V2-1
CN20
Headphones 1
jack
CN21
Headphones 2
jack
U35 right
B3
microphone
Joystick
RV3
Potentiometer
UM1855
MSv36941V2
