Data Boxes

A group of up to six data boxes can be displayed, if the information is available
on your system. You select which data is displayed in the boxes during
system set up as described in Chapter 7.
The default data box positions are along the bottom of the display. Each box can
be moved to the required position on the screen using the context-sensitive
cursor.
Note: If you select BDI, CDI or Nav Data for display in a half-screen window,
the data boxes are switched off.
At any time, you can switch the group of data boxes on or off using the SCREEN
soft key. When first installed, the boxes are all OFF. When the display unit is
switched off and on again, the data boxes return to their last-used states (ON or
OFF) and positions.
Note: The SCREEN soft key does not control the nine data boxes that can be
displayed in the half-screen window.
➤ To switch the group of data boxes on or off:

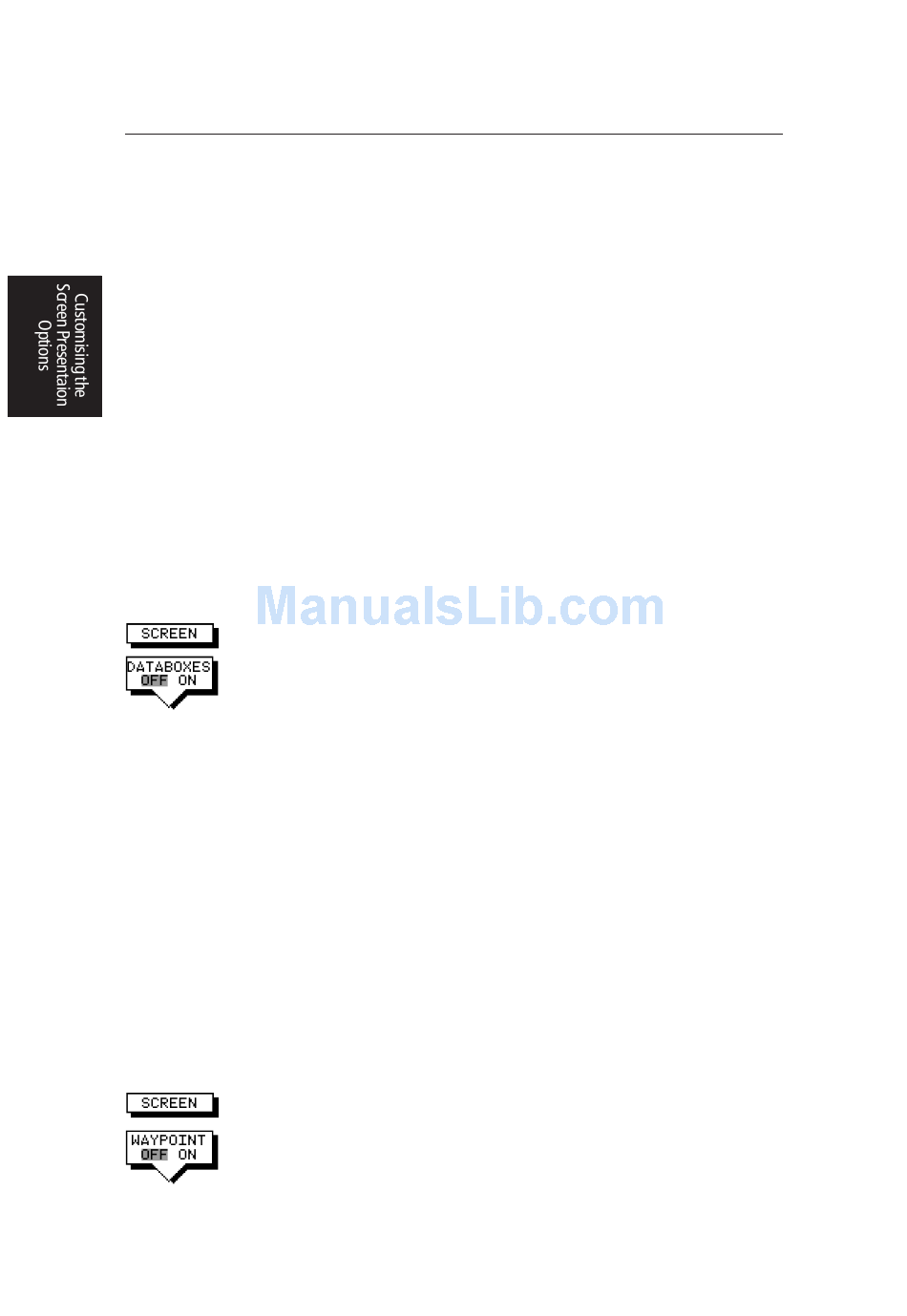

1. Press the SCREEN default soft key.
2. Press the DATABOXES soft key to toggle the setting from ON to OFF or from
OFF to ON.
To return to the default soft key display, press ENTER.
If you turn the data boxes on and none are displayed, you need to select the ones
you require using the system set up menu, as described in Section 7.3.
➤ To move any data box:
1. Use the trackpad to position the cursor over the box until the letters BOX are
displayed.
2. Press ENTER to take control of the box, use the trackpad to move it to the
required position, and press ENTER again.

Waypoint Display - Radar mode

If you are currently going to a waypoint, you can display the active waypoint on
the radar picture as a lollipop symbol. The waypoint may have been generated
locally on the chartplotter, or received via the SeaTalk or NMEA interface.
➤ To display the active waypoint:
1. Press the SCREEN soft key.
2. Press the WAYPOINT soft key to toggle the setting from ON to OFF or from
OFF to ON.
