Chapter 1: Overview 17
D4152-2
The currently selected soft key option is shown by its grey background. If the
key text is displayed in grey rather than in black, it is not currently available.
When you press a soft key one of the following happens:
a) The associated operation is actioned, e.g. NORTH UP.
b) A sub-set of soft keys is displayed, providing further functions.
c) A pop-up menu is displayed, providing further options.
As with dedicated keys, when you press a soft key a single audio beep confirms
the key action. If the key-press is not valid for the current screen or mode, three
rapid beeps sound to indicate that no response is available. If required, you can
turn the key beeps off as part of your set up procedure (see Chapter 7).

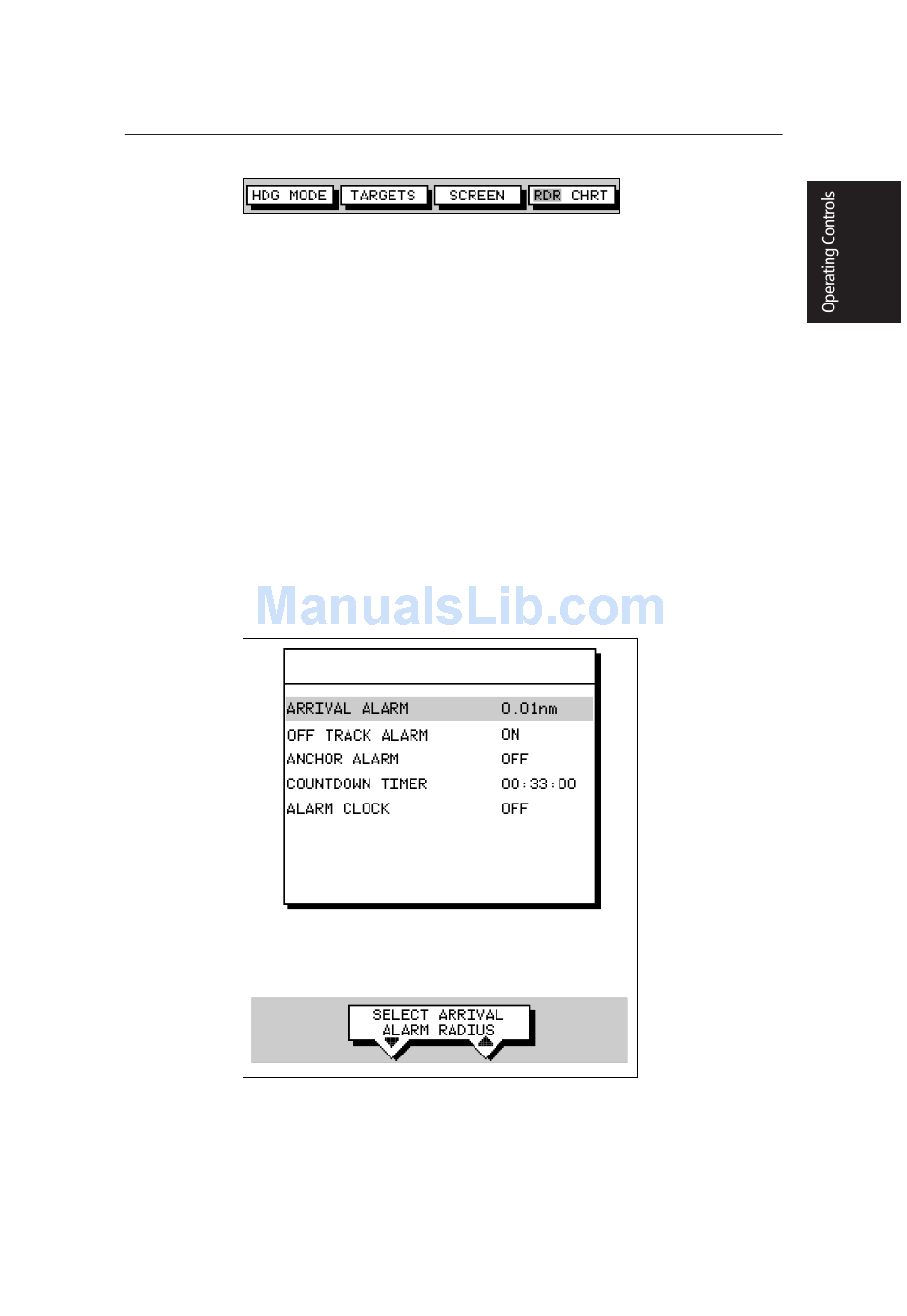

Pop-Up Menus

Pop-up menus usually provide set up options. When a pop-up menu is on-
screen, a set of associated soft keys is also displayed as shown in the example
below.

ALARMS SET UP

D4265-1
You use the trackpad to select an option from the menu, then use the appropriate
soft key to set the option. For example, you can toggle the OFF TRACK ALARM
on/off.
