User Manual
Ouster LiDAR
Configure One LiDAR
24 |
©
Danfoss | March 2023

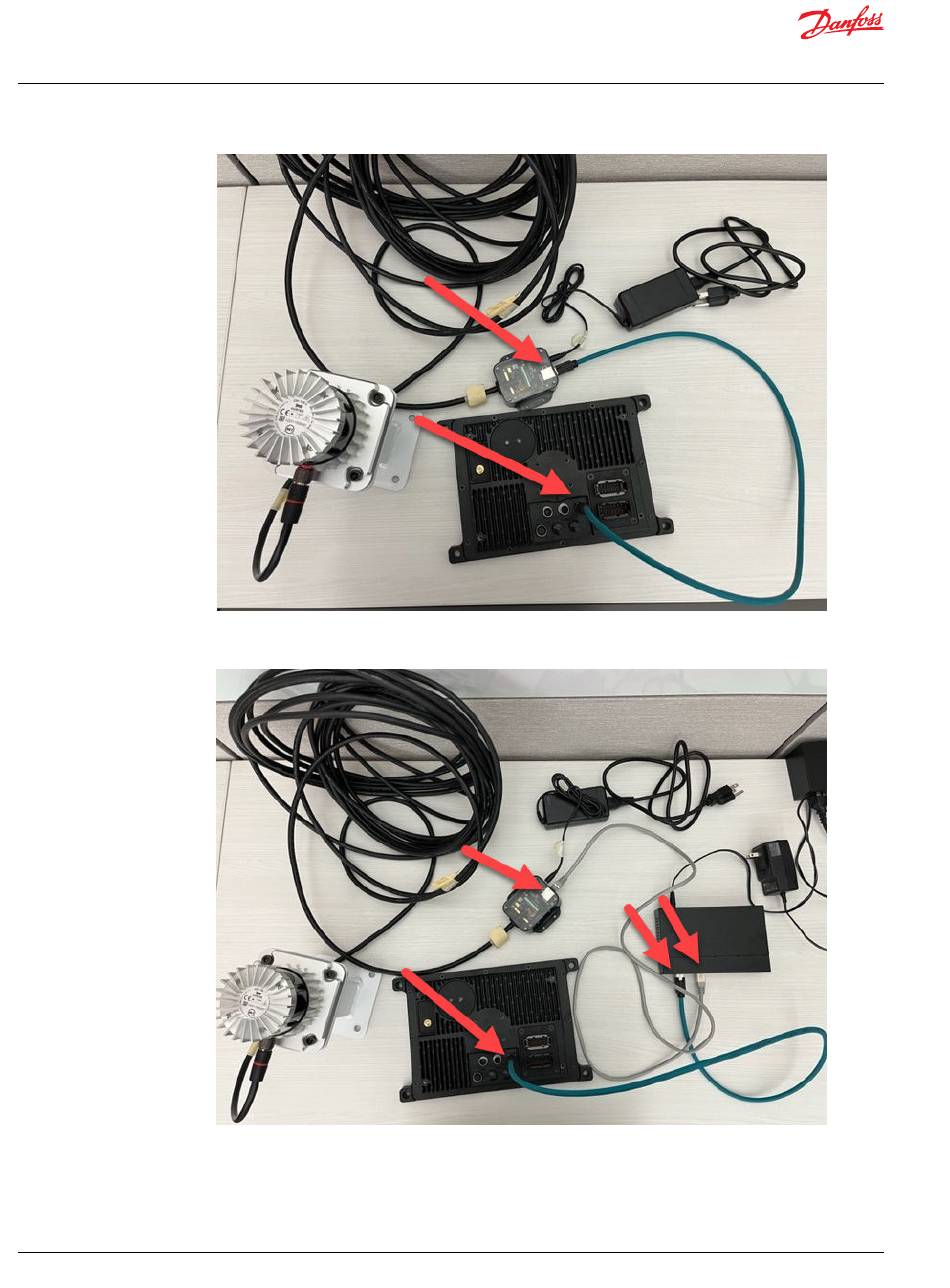

The image shows the M12 to RJ45 Ethernet cable connecting the Ouster Interface Box directly to the
XM100 controller.
The image shows the Ouster Interface Box connected to a network smart switch. The switch is also
connected to the XM100 controller. These two cables may not come with the Ouster LiDAR hardware.
AQ404281942428en-000103
