Directed DS3+ Installation Manual page 9

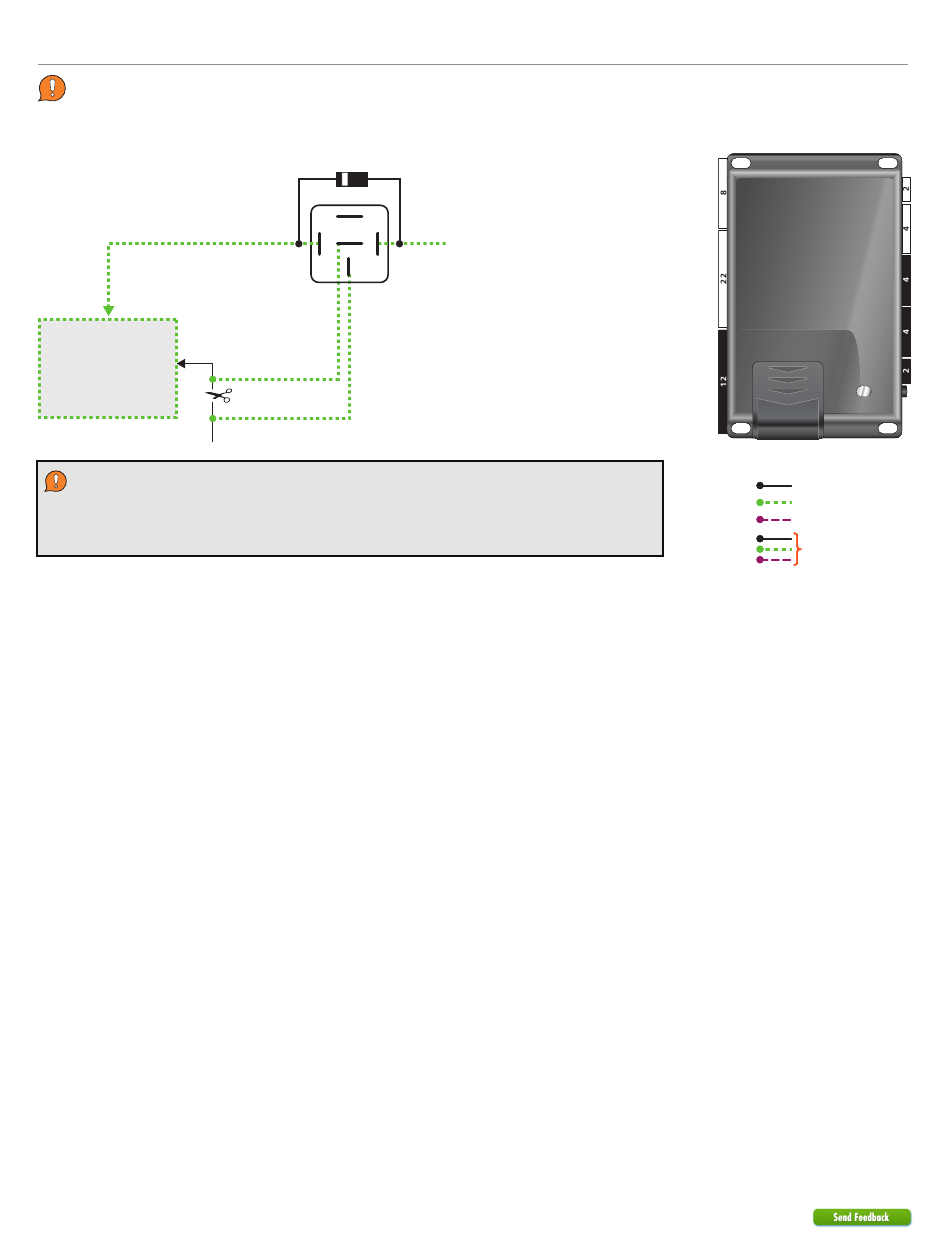

Optional starter disable connection
When using an external relay, use a 1N4002 diode or larger.
Refer to the Refer to the
Vehicle connections Vehicle connections
section for wire section for wire
and connector and connector
Cut
details. details.
Important:
When flashing your module for Security Only, the Ground When Armed (GWA)
function is pre-configured. When flashing your module for Remote Start & Security, you must
manually assign the designated output to Anti Grind (AG) Starter Kill.
(Applicable to CORE 194+.)
9
933.MA3 2.41.198.9 2016 Mazda CX-5 (Smart Key)
©2023 VOXX•DEI LLC. All rights reserved.
1A diode
87
(+) Ignition
87a
86 85
30
Starter (connector side)
Starter (vehicle side)
(-) Ground When Armed (GWA) Output: Dk. Green/Black: 3 (-) Ground When Armed (GWA) Output: Dk. Green/Black: 3
Legend: Legend:
Mandatory Connections Mandatory Connections
Security Only Security Only
Remote Start Only Remote Start Only
Remote Start + Security Remote Start + Security
