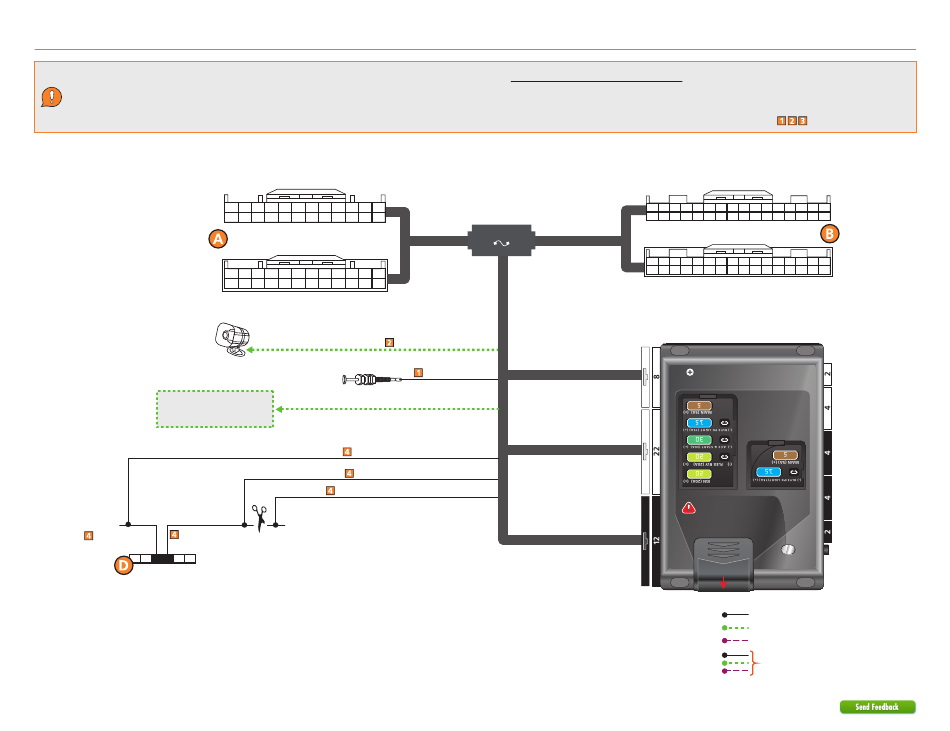

Wiring diagram
with
T-Harness (THMAN1)
- Important! In these vehicles, the factory keyless entry module is sensitive to interference and may cease to operate without notice. Ensure you disconnect the (-) terminal of the
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
battery prior to disconnecting and reconnecting the connectors at the start-stop module below the steering wheel to avoid damage to the keyless entry module.
- Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Siren
Refer to the Optional starter
disable connection section for
relay and connection details.
Parking Lights
(-) Parking Lights:
Interr.: Green, pin 4
Yellow, pin 3
1
2
3
4
5
6
Parking Light
Switch Assembly
6
933.MA3 2.41.198.9 2016 Mazda CX-5 (Smart Key)
©2023 VOXX•DEI LLC. All rights reserved.
Start/Stop Unit
(white conn. at steering column)
(+) Siren Output: Brown/Red
Hood Pin
(-) GWA Output: Dk. Green/Black
(-) Parking Lights Output: Lt. Green/Black
Parking Light Interrupt (conn. side): Blue
Parking Light Interrupt (veh. side): Blue/White
Cut
THMAN1
(optional T-Harness)
Relay Pack
5A Fuse Inside
(-) Hood Input: Gray
8-pin White Connector
22-pin White Connector
12-pin Black Connector
).
).
Start/Stop Unit
(white conn. at steering column)
A
module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
