EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series

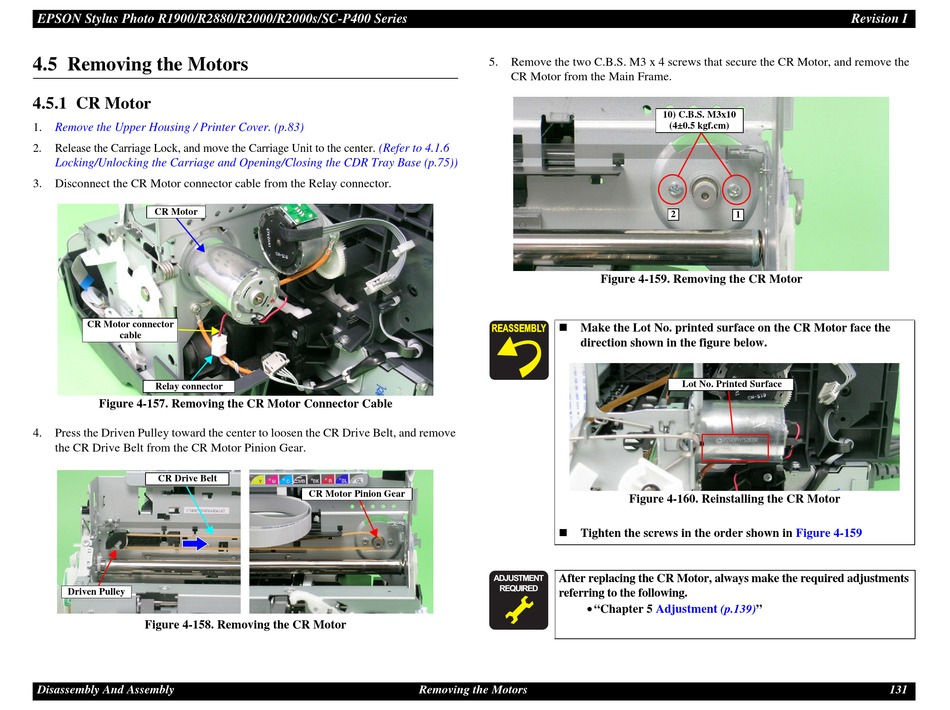

4.5 Removing the Motors

4.5.1 CR Motor

1. Remove the Upper Housing / Printer Cover. (p.83)
2. Release the Carriage Lock, and move the Carriage Unit to the center.
Locking/Unlocking the Carriage and Opening/Closing the CDR Tray Base (p.75))
3. Disconnect the CR Motor connector cable from the Relay connector.
CR Motor
CR Motor connector
cable
Relay connector
Figure 4-157. Removing the CR Motor Connector Cable
4. Press the Driven Pulley toward the center to loosen the CR Drive Belt, and remove
the CR Drive Belt from the CR Motor Pinion Gear.
CR Drive Belt
Driven Pulley
Figure 4-158. Removing the CR Motor
Disassembly And Assembly
(Refer to 4.1.6
CR Motor Pinion Gear
Removing the Motors
5. Remove the two C.B.S. M3 x 4 screws that secure the CR Motor, and remove the
CR Motor from the Main Frame.
10) C.B.S. M3x10
Figure 4-159. Removing the CR Motor

Make the Lot No. printed surface on the CR Motor face the
direction shown in the figure below.
Figure 4-160. Reinstalling the CR Motor

Tighten the screws in the order shown in
A D J U S T M E N T
After replacing the CR Motor, always make the required adjustments
R E Q U I R E D
referring to the following.
• "Chapter 5
Adjustment
(4±0.5 kgf.cm)
2
1
Lot No. Printed Surface
Figure 4-159
(p.139)"
Revision I
131
