EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series

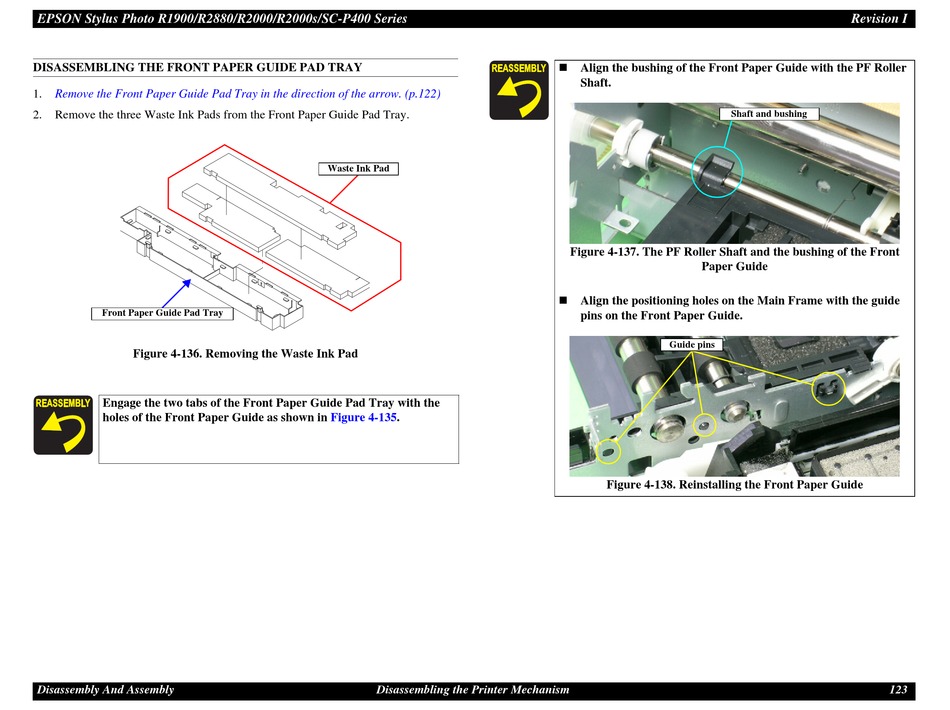

DISASSEMBLING THE FRONT PAPER GUIDE PAD TRAY
1. Remove the Front Paper Guide Pad Tray in the direction of the arrow. (p.122)
2. Remove the three Waste Ink Pads from the Front Paper Guide Pad Tray.
Front Paper Guide Pad Tray
Figure 4-136. Removing the Waste Ink Pad
Engage the two tabs of the Front Paper Guide Pad Tray with the
holes of the Front Paper Guide as shown in
Disassembly And Assembly
Waste Ink Pad
Figure 4-135.
Disassembling the Printer Mechanism

Align the bushing of the Front Paper Guide with the PF Roller
Shaft.
Shaft and bushing
Figure 4-137. The PF Roller Shaft and the bushing of the Front
Paper Guide

Align the positioning holes on the Main Frame with the guide
pins on the Front Paper Guide.
Guide pins
Figure 4-138. Reinstalling the Front Paper Guide
