EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series

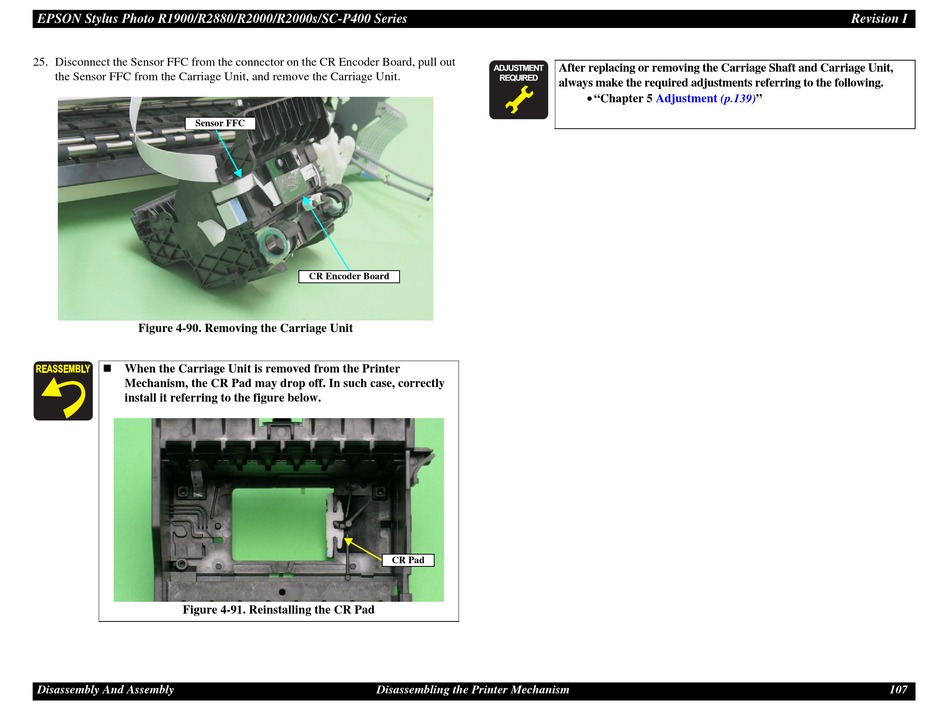

25. Disconnect the Sensor FFC from the connector on the CR Encoder Board, pull out
the Sensor FFC from the Carriage Unit, and remove the Carriage Unit.
Sensor FFC
Figure 4-90. Removing the Carriage Unit

When the Carriage Unit is removed from the Printer
Mechanism, the CR Pad may drop off. In such case, correctly
install it referring to the figure below.
Figure 4-91. Reinstalling the CR Pad
Disassembly And Assembly
CR Encoder Board
CR Pad
Disassembling the Printer Mechanism
A D J U S T M E N T After replacing or removing the Carriage Shaft and Carriage Unit,
R E Q U I R E D
always make the required adjustments referring to the following.
• "Chapter 5
Adjustment
Revision I
(p.139)"
