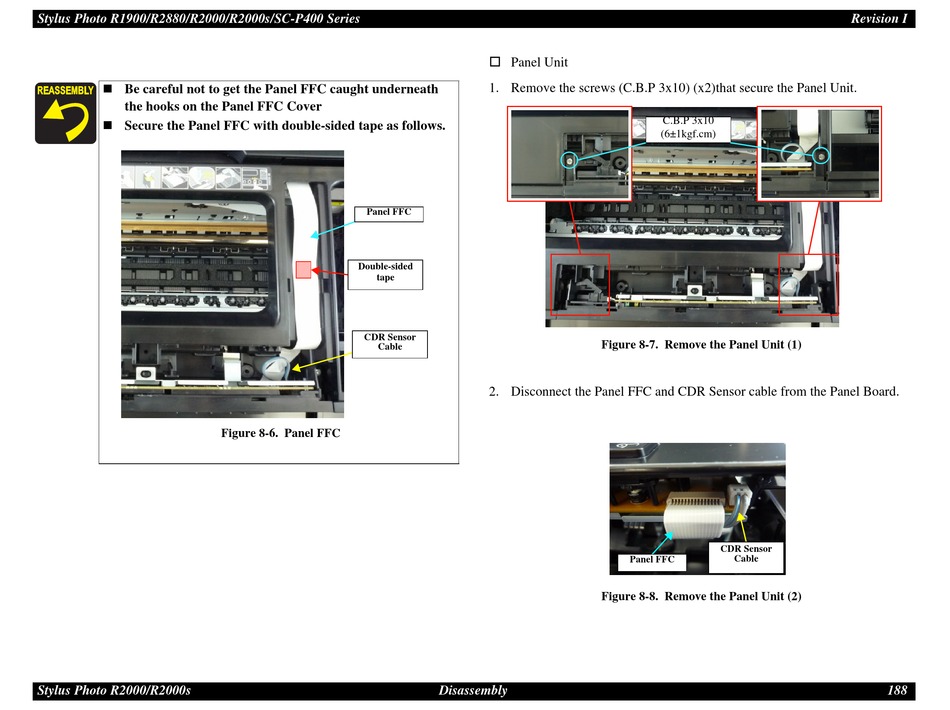

Epson Stylus Photo R2000s Series Service Manual page 188

Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series
 Be careful not to get the Panel FFC caught underneath
the hooks on the Panel FFC Cover
 Secure the Panel FFC with double-sided tape as follows.
Stylus Photo R2000/R2000s
Panel FFC
Double-sided
tape
CDR Sensor
Cable
Figure 8-6. Panel FFC
 Panel Unit
1. Remove the screws (C.B.P 3x10) (x2)that secure the Panel Unit.
Figure 8-7. Remove the Panel Unit (1)
2. Disconnect the Panel FFC and CDR Sensor cable from the Panel Board.
Figure 8-8. Remove the Panel Unit (2)
Disassembly
C.B.P 3x10
(6±1kgf.cm)
CDR Sensor
Cable
Panel FFC
Revision I
188
