Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series

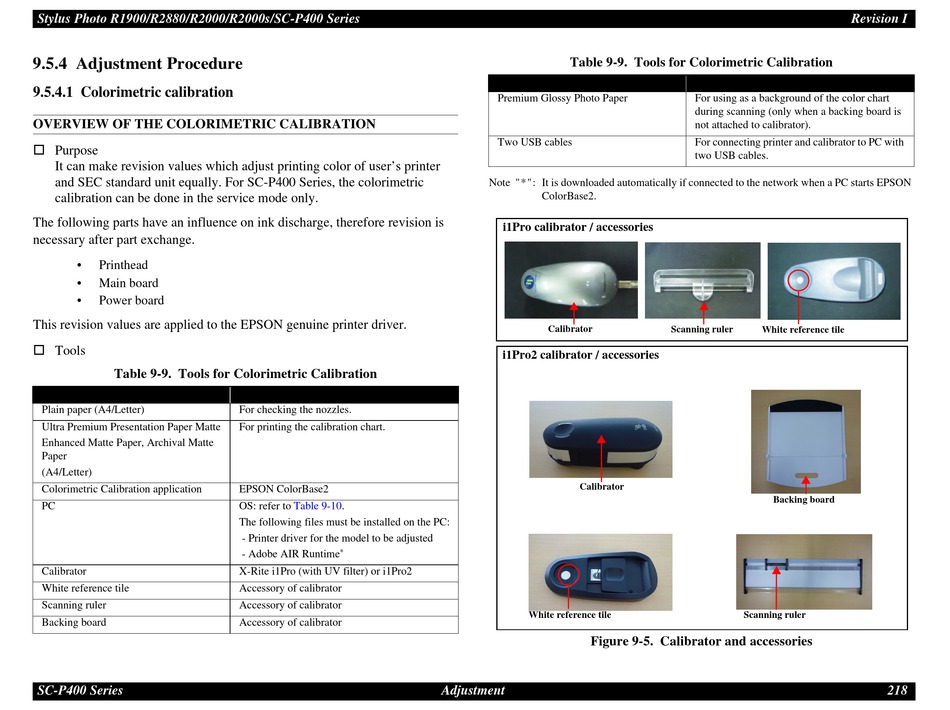

9.5.4 Adjustment Procedure

9.5.4.1 Colorimetric calibration
OVERVIEW OF THE COLORIMETRIC CALIBRATION
 Purpose
It can make revision values which adjust printing color of user's printer
and SEC standard unit equally. For SC-P400 Series, the colorimetric
calibration can be done in the service mode only.
The following parts have an influence on ink discharge, therefore revision is
necessary after part exchange.
• Printhead
• Main board
• Power board
This revision values are applied to the EPSON genuine printer driver.
 Tools
Table 9-9. Tools for Colorimetric Calibration
Tools
Plain paper (A4/Letter)
Ultra Premium Presentation Paper Matte
Enhanced Matte Paper, Archival Matte
Paper
(A4/Letter)
Colorimetric Calibration application
PC
Calibrator
White reference tile
Scanning ruler
Backing board
SC-P400 Series
Purpose / Specification
For checking the nozzles.
For printing the calibration chart.
EPSON ColorBase2
OS: refer to Table 9-10.
The following files must be installed on the PC:
- Printer driver for the model to be adjusted
*
- Adobe AIR Runtime
X-Rite i1Pro (with UV filter) or i1Pro2
Accessory of calibrator
Accessory of calibrator
Accessory of calibrator
Table 9-9. Tools for Colorimetric Calibration
Tools
Premium Glossy Photo Paper
Two USB cables
Note "*": It is downloaded automatically if connected to the network when a PC starts EPSON
ColorBase2.
i1Pro calibrator / accessories
Calibrator
i1Pro2 calibrator / accessories
Calibrator
White reference tile
Figure 9-5. Calibrator and accessories
Adjustment
Purpose / Specification
For using as a background of the color chart
during scanning (only when a backing board is
not attached to calibrator).
For connecting printer and calibrator to PC with
two USB cables.
Scanning ruler White reference tile
Backing board
Scanning ruler
