TASKING iSYSTEM ARM HSSTP II User Manual page 7

mDIO port provides two digital signals, which can interact with the embedded target. Each can be
configured either for input or output operation.
Number
Pin1
Pin2
Pin3

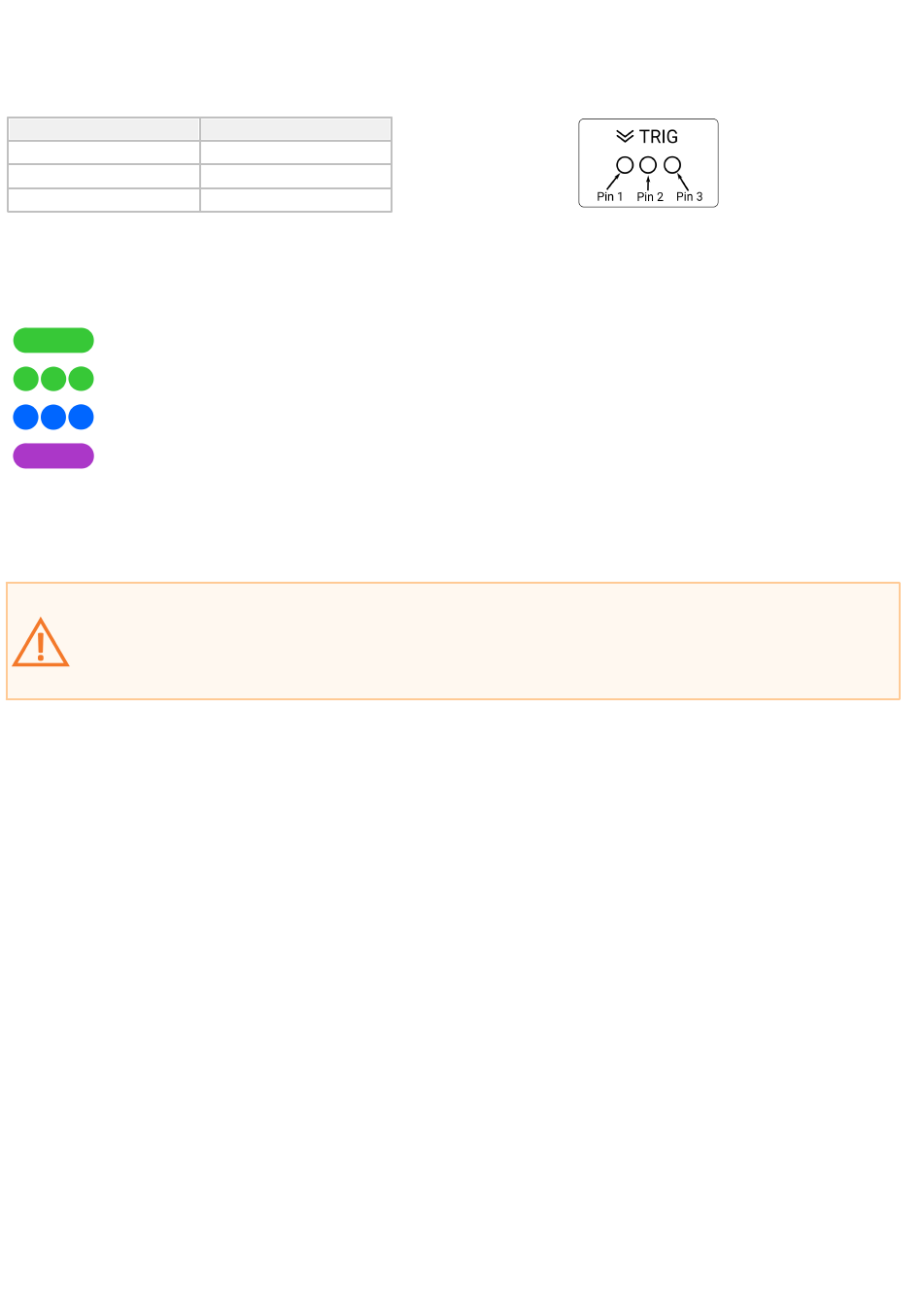

mDIO port pinout
C – The indicator light provides the status of the Active Probe as follows:
Permanently green – Powered on and ready to use.
Blinking green – Establishing connection with the BlueBox.
Blinking blue – Reprogramming SPLASH.
Permanently magenta – Golden image loaded and ready to use.
D – FNet connector, that connects the Active Probe to the iC5700 BlueBox. The FNet cable is
delivered with the Active Probe.
When powering on the system, switch the iC5700 on before powering on the target. When
powering down the system, power off the target before powering off the iC5700!
Use only original iSYSTEM accessories for powering and connecting with the iC5700. Consult
with iSYSTEM before attempting to use any other accessory.
Name
IOØ
IO1
GND
mDIO port on the Active Probe
