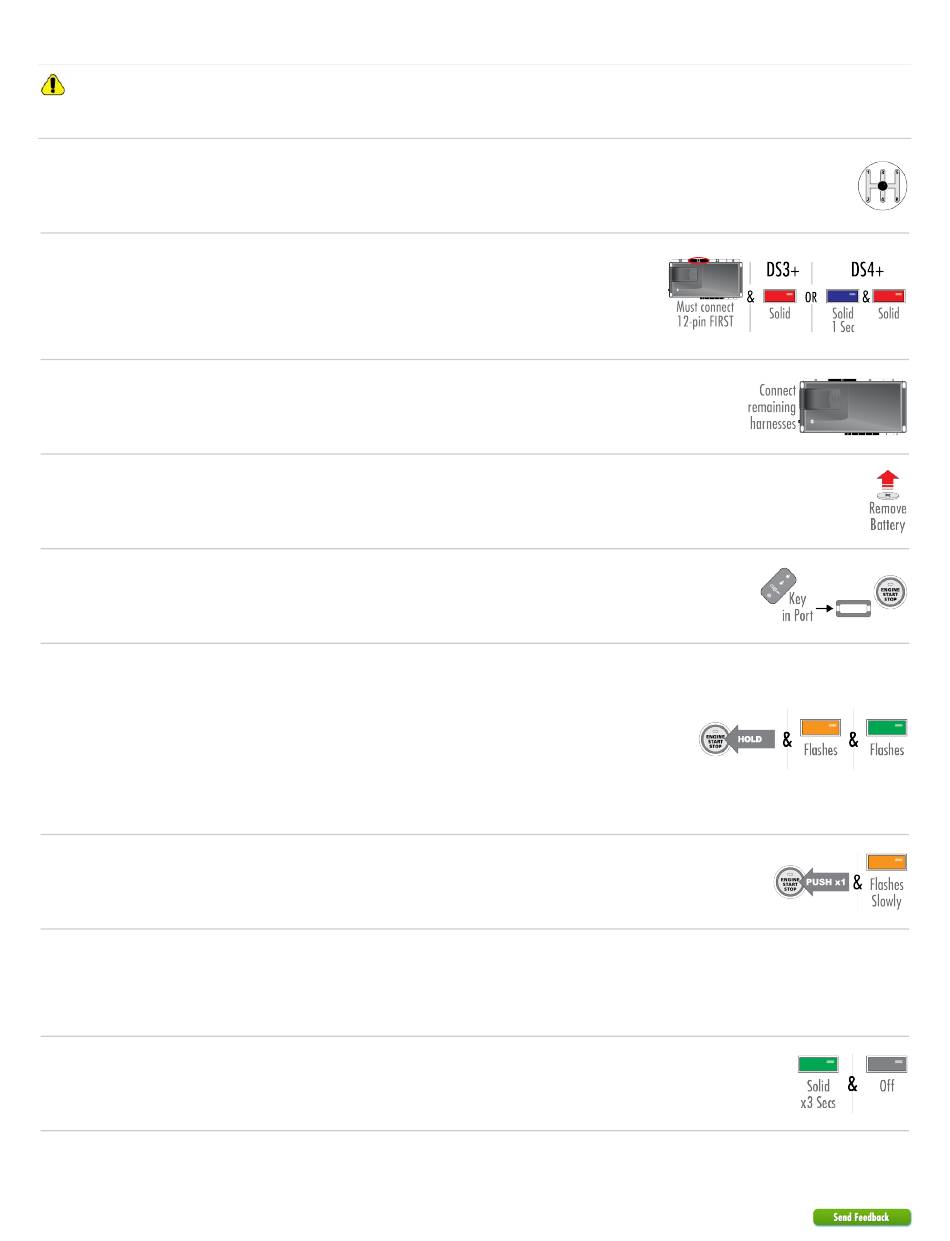

Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
For Security-Only and Convenience-Only
Ensure vehicle is in a safe location and cannot move forward during programming. For
1
vehicles equipped with a manual transmission, make sure the gearshift lever is in the neutral
position.
DS3+: Connect the 12-pin main power harness to the DS3+ module FIRST.
Wait until the LED turns ON solid red before proceeding to the next step.
2
DS4+: Connect the 12-pin main power harness to the DS4+ module FIRST.
The LED will turn ON solid blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red before proceeding to the next step.
3
Connect the remaining harnesses to the module.
Remove battery from one key fob, and make sure that the other key fob is located more than
4
10 feet away from vehicle.
Insert the key fob (with battery removed) in the key port.
5
Note: Refer to the "Keyport location" section.
Press and hold the Push-To-Start (PTS) button until the ignition turns ON, then release. The
LED flashes orange then green.
Notes:
6
- If the LED starts flashing red two times (2x), press and hold the Push-to-Start (PTS) button
with the brake pedal applied. When the engine begins cranking, let go of the button.
The LED flashes orange then green. Proceed to step 7.
If programming fails, perform a soft reset and restart programming.
-
Press the PTS button once (1x) to turn the ignition OFF.
The LED flashes orange slowly.
7
Note: If programming the unit using the Directlink app, please follow the instructions from the
app. If you are using a computer to flash the module please continue to step 8.
Remove the module from the vehicle and reconnect it to your computer.
1.
The website will automatically recognize that you are moving onto the second phase
8
of the programming sequence.
Click Submit Key2GO Request.
2.
When the configuration is completed, reconnect the module.
9
The LED turns ON solid green for 3 seconds, then turns OFF.
